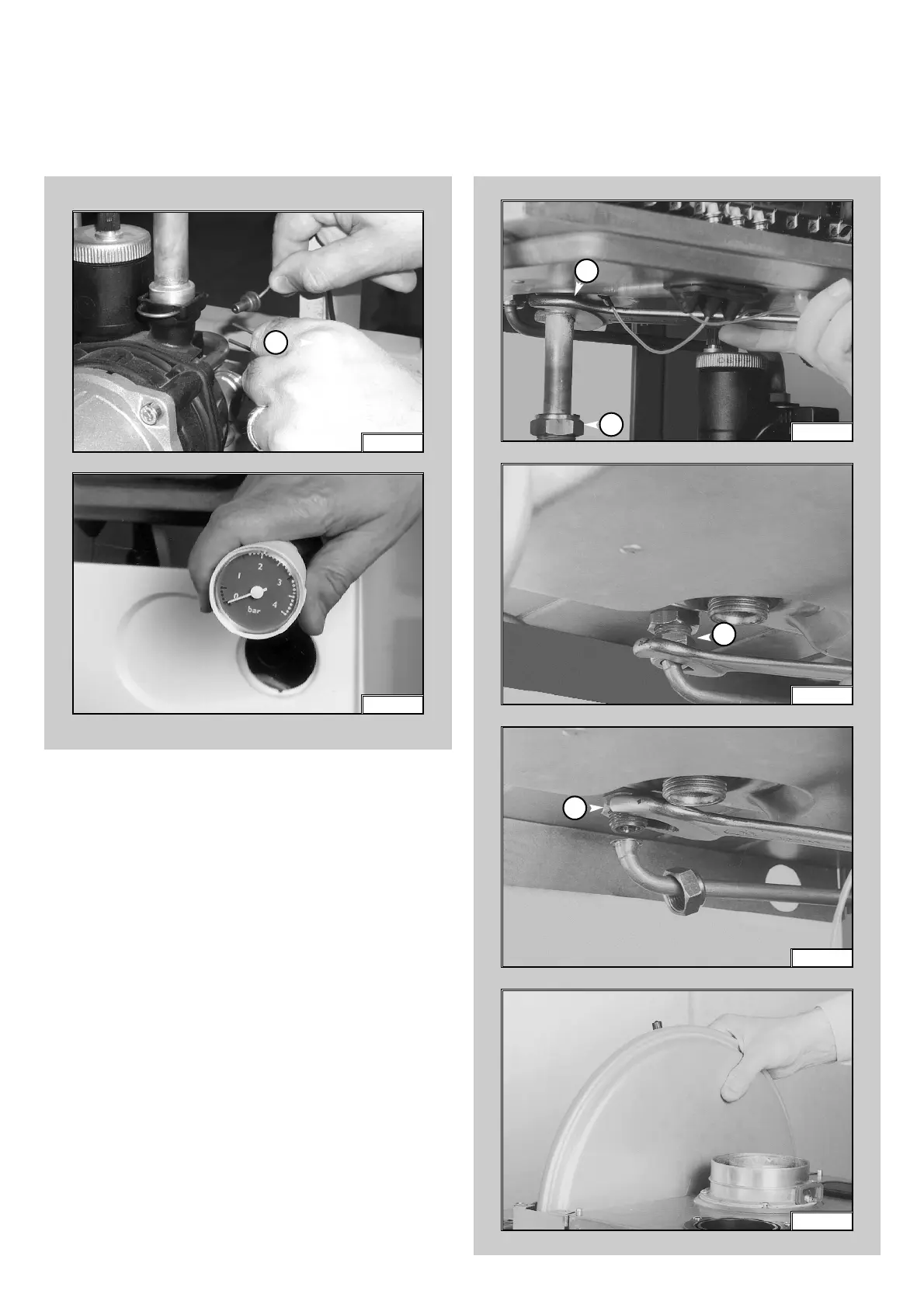

1.5.6 Removing the expansion vessel

1. Release nuts “H1” and remove the gas pipe (F

IG. 1.44);

2. Release nut “I1” (FIG. 1.45);

3. Remove lock-nut “J1” (FIG. 1.46);

4. Remove the expansion vessel (F

IG. 1.47).

1.5.5 Removing the pressure gauge

1. Remove the U-clip “G1” and remove the pressure gauge

coupling (F

IG. 1.42);

2. Push the pressure gauge through the control panel from

the rear (F

IG. 1.43).

FIG. 1.42

FIG. 1.44

IG. 1.43

IG. 1.45

IG. 1.46

FIG. 1.47

Ariston microSYSTEM 15 RFFI Servicing Instructions
