507405-05 Page 29 of 72Issue 1621

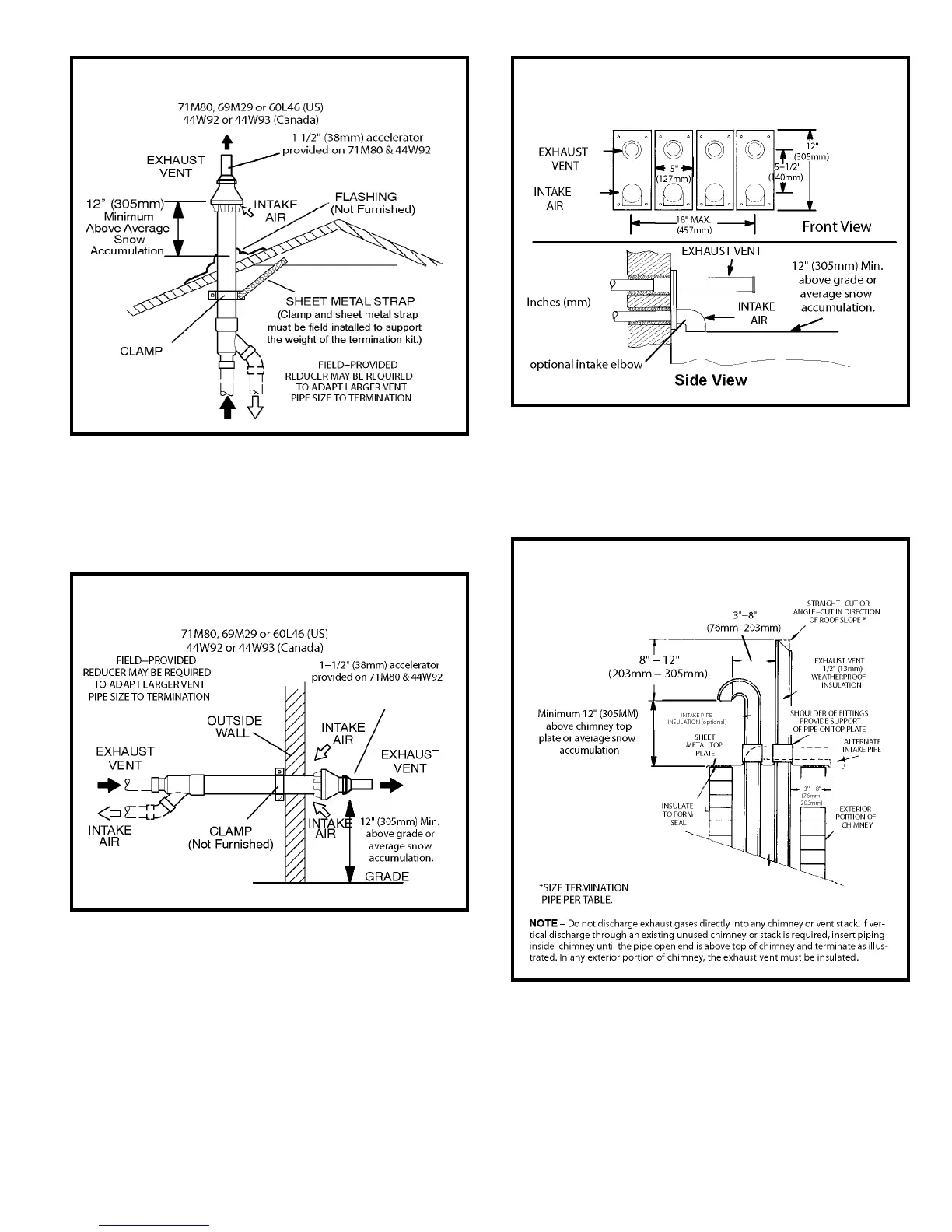

Figure 35
Direct Vent Concentric Rooftop Termination
Figure 36
Direct Vent Concentric Wall Termination
Figure 37
Optional Vent Termination for Multiple Unit
Installation of Direct Vent Wall Termination Kit
Figure 38
Direct Vent Application Using Existing Chimney
