54
Knock-Out for
Humidistat
1” Drain
Electrical
Supply
Knock-Out for
Humidistat
A
H
G
B
J
K
E
D
M
L
R
H
C
F

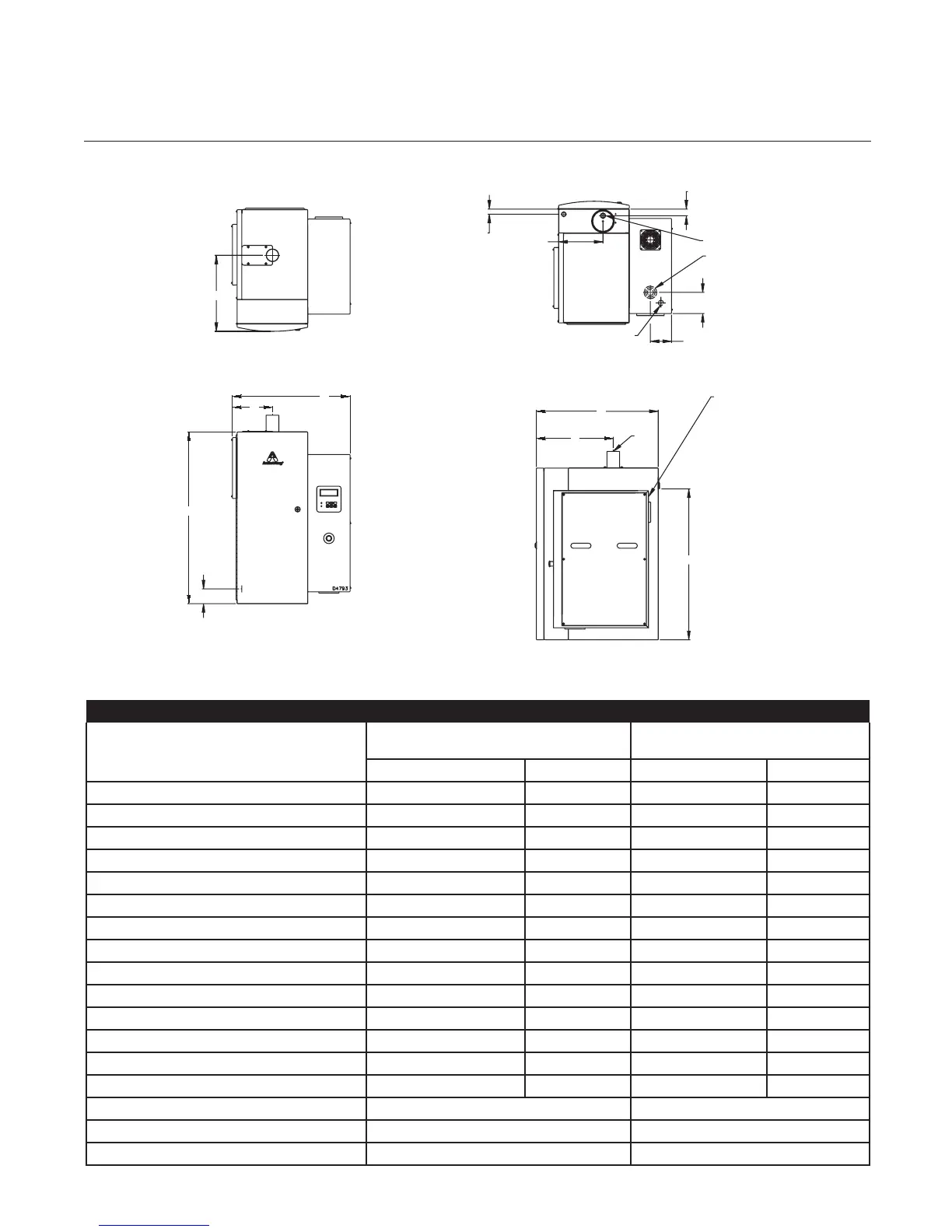

Physical Data and Dimensional Drawings
Figure 54-1. Models HC-6100 and HC-6300
Table 54-1. Physical Data
HC-6100 and HC-6300
HC-6500, HC-6700
and HC-6700DI
Inches mm Inches mm
“A”-Width 21-15/16 557 26 660
“B”-Height 32-1/16 814 56-3/18 1428
“C”-Depth 22-1/3 576 32-3/32 815
“D”-Drain - Back 20 508 29-3/16 748
“E”-Drain - Side 9-1/8 232 11-1/2 293
“F”-Steam Discharge Tube 2-3/8 60 2-3/8 60
“G”-Steam Outlet - Side 7-1/2 190 9-1/2 241
“H”-Steam Outlet - Front 14-1/3 364 12-7/8 328
“J”-Supply Water - Bottom 1-27/32 47 1-7/8 47
“K”-Water Supply - Front 2-13/32 61 2-3/8 60
“L”-Electrical Supply - Side 18 457 22-1/16 560
“M”-Electrical Supply - Back 10-3/16 254 16-1/4 413
“Q”-Steam Dispersion Outlets — — 12-3/16 310
Water Supply Connection 3/8 compression fitting 10 1/2 compression fitting 12
Dry Weight (lbs (kg)) 155 (70) 290 (130)
Wet Weight (lbs (kg)) 230 (105) 507 (230)
Shipping Weight (lbs (kg)) 175 (80) 330 (150)
