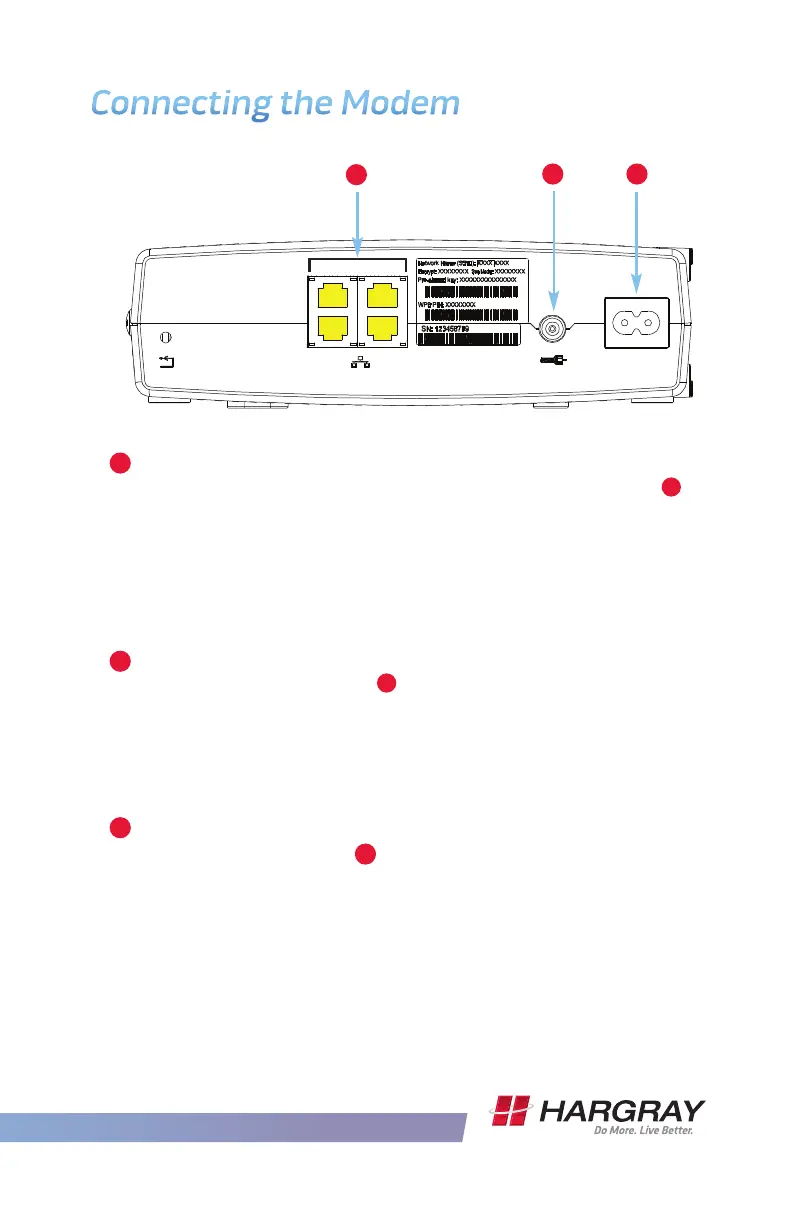

Connecting the Modem
C
D
Connect one end of the coax cable to the cable outlet or
splitter, and the other end to the modem’s cable connector
D
.
Tighten the connections by hand, then tighten an additional 1/8
turn with a wrench.
Note: For best performance, use high-quality coax cable and
minimize or eliminate splitters between the cable jack
and the modem.
Insert the plug from the power cord into the Power connector
on the back of the modem
E
and insert the power cord into a
convenient AC outlet.
The power light on the front of the modem lights up, then
flashes once. Refer to the LED tables on Page 12. See
Troubleshooting on pages 14-15.
Connect one end of the Ethernet cable to any Ethernet port on
the back of the modem,
C
and the other end to the Ethernet
port on a computer, hub or broadband router.
Note: If you are connecting to a computer, use the Ethernet
cable included in the modem package.
1
2
3
E
To Next Page
