Chapter 4: Installing and Connecting your Telephony Gateway
Release 34 DRAFT 1.6 June 2017 Touchstone TG3452 Telephony Gateway User Guide
© 2017 ARRIS Enterprises LLC. All Rights Reserved. 19
Rear Panel

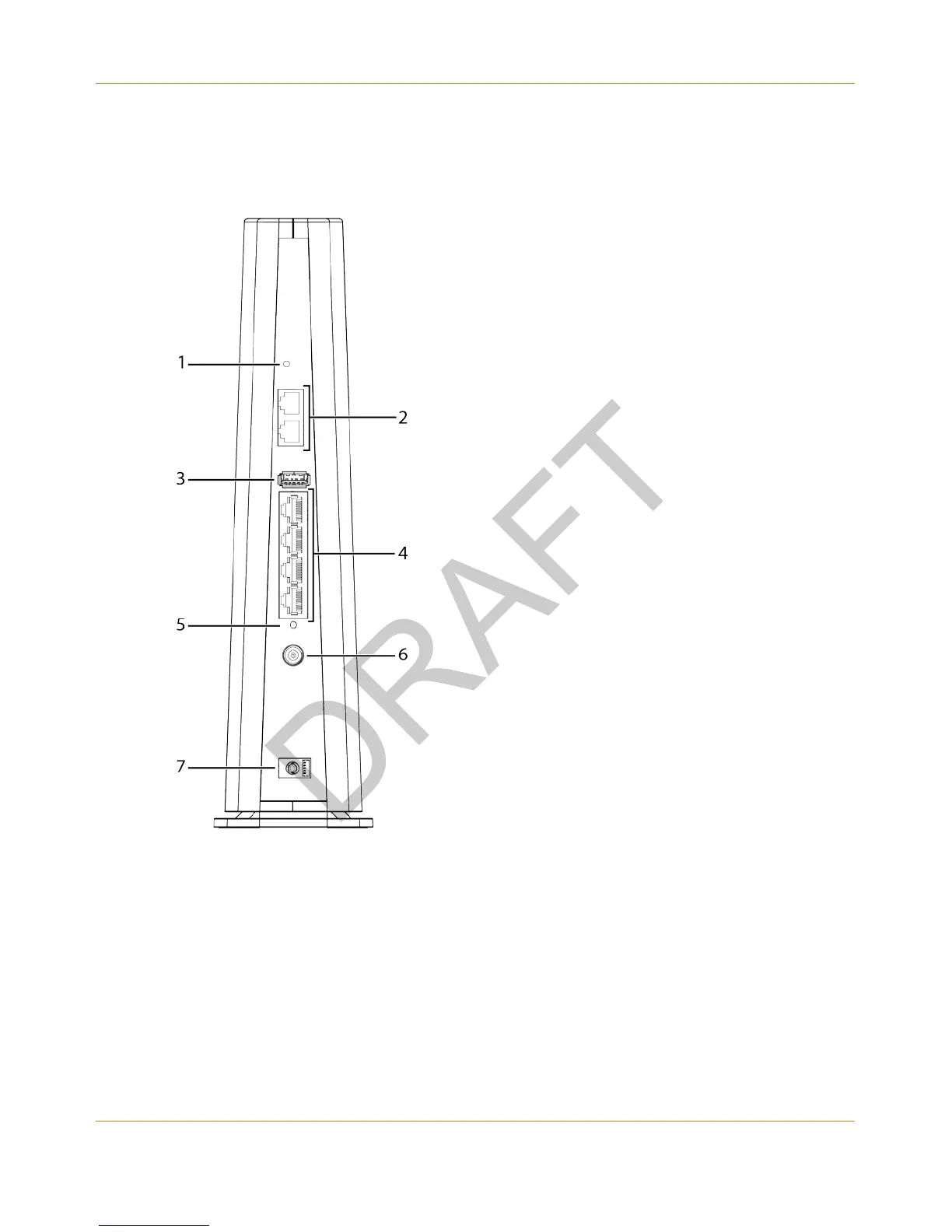

The rear of the Telephony Gateway has the following connectors and controls.
1. Reset button: resets the Telephony Gateway as if you power cycled the unit. Use a
pointed non-metallic object to press this button.
2. Tel (1 - 2): connectors for phone lines.
3. USB: USB host connector - future support for external USB devices
4. Ethernet (1 - 4): connectors for use with a computer LAN port.
5. MoCA LED: indicates the status of the MoCA connection.
6. Cable: connector for the coaxial cable.
7. Power: connector for the power cord.
