Chapter 4: Battery Installation and Removal
Release 8 STANDARD 1.1 August 2016 Touchstone TM804G Telephony Modem User Guide
© 2011-2016 ARRIS Enterprises LLC. All Rights Reserved. 20

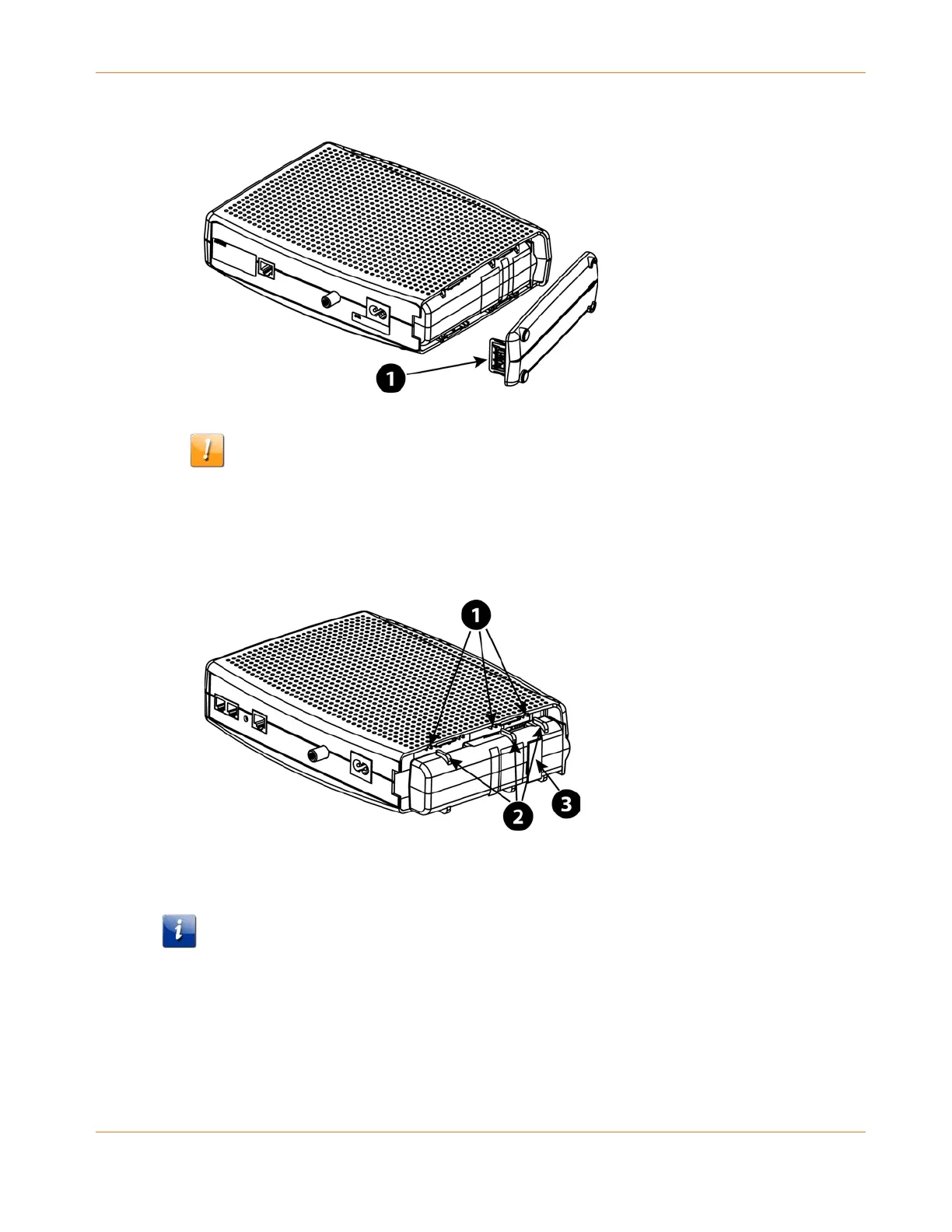

1. Press down and pull back on the latch holding the battery door (on the bottom of the
Telephony Modem). Pull the door toward you. Set the door aside in a safe place.
1 - Latch End
CAUTION
Risk of equipment damage
Improperly inserting the battery may damage the battery connector in the Telephony
Modem. Carefully follow the instructions in the next step to avoid damage.
2. Hold the battery pack so that the guides on the battery align with the slots on the
Telephony Modem and slide the battery into the bay.
1 - Battery Slots
2 - Battery Guides
3 - Battery Pull Strap
Note: Batteries will not insert completely into the Telephony Modem if not oriented
correctly. The battery should slide into the bay without significant force. Line up the slots
in the battery bay with the guides on the battery and apply even pressure on both ends of
the battery.
