Arrow LW1012FB - Step 3: Roof Beam Assembly

16
The roof beams join the two gables
and support the roof panels. The main
roof beam is made up of four pieces
overlapped back to back at the cen-
ter. The left and right roof beam as-
semblies are made up of two pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.

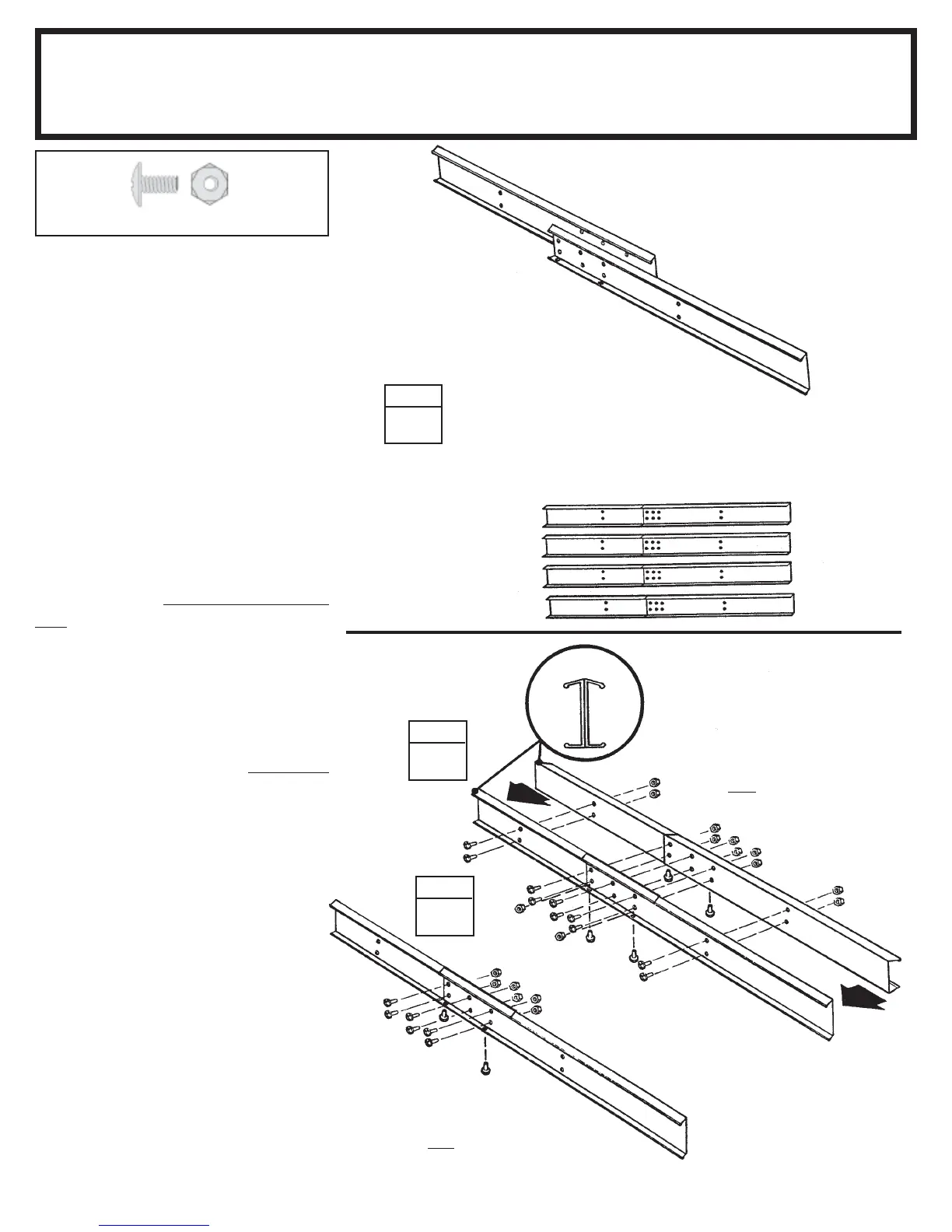

1 Place one end of a roof beam
inside another roof beam so that the
six holes in each piece align. Make
four sets of roof beams by repeating
this procedure. Do not insert bolts
yet.
2 Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assembly.
Hold the assembly together and fas-
ten with 14 bolts. Build only one
Doubled Beam Assembly.
3 Fasten the other two pressed-
together roof beams with eight bolts
to make the left and right roof beam
assemblies.
4 Double check the length of each
and set these pieces aside for later
use.
Step 3
SV16hw
● Parts Needed For ●
Roof Beam Assemblies
●●
●●
● 10397 Roof Beam (8)
10397
STEP
1
10397
Assembled
142 3/8" 361,6 cm
Build one Doubled Main Roof
Beam Assembly for Peak in Roof
End
View
142 3/8"
361,6 cm
Build two Single Beam
Assemblies
STEP
2
STEP
3
142 3/8"
361,6 cm
(30)
