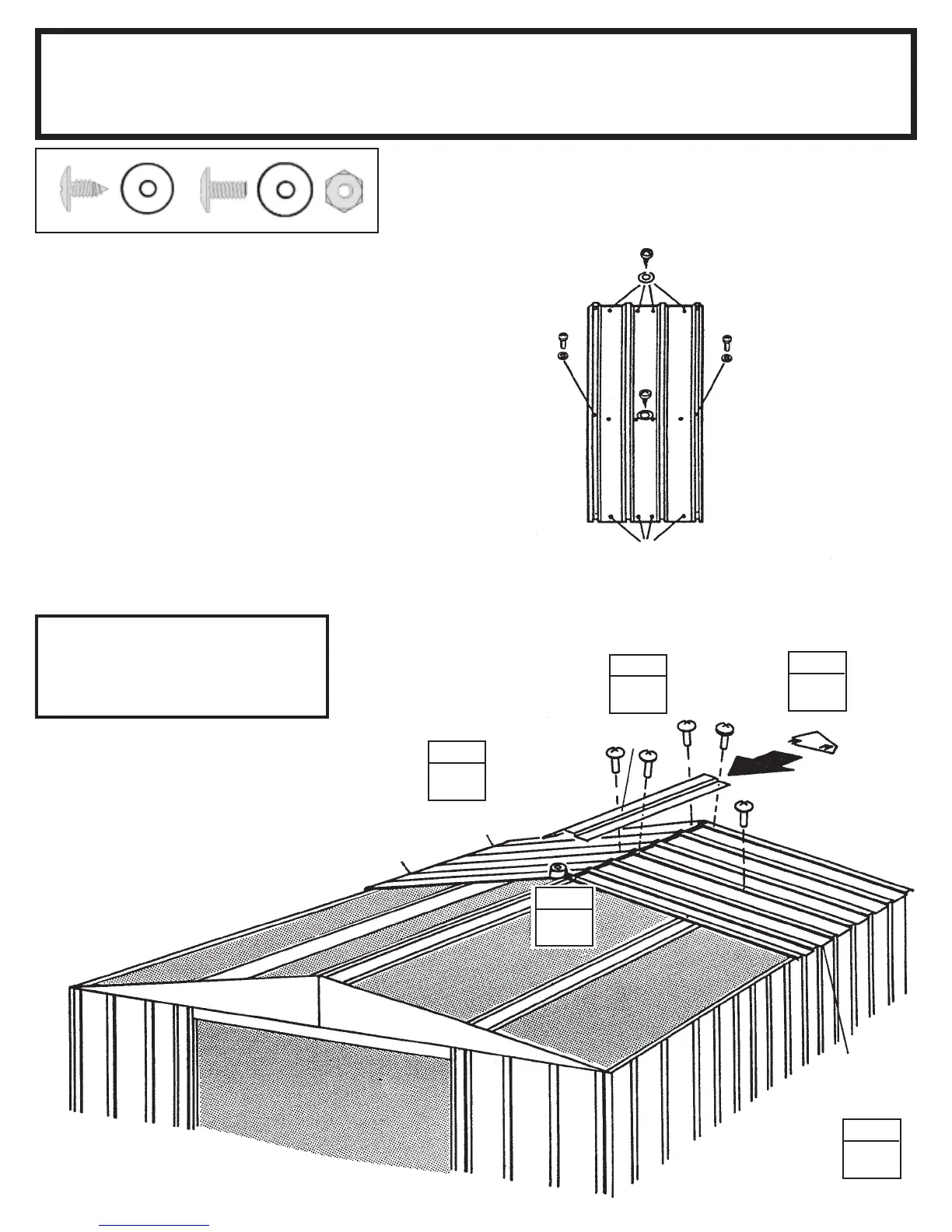

1 Install a left roof panel 9087 at the
left rear corner of the roof.
3 Install two roof panels 7743 work-
ing side to side.
Do not fasten the
lower end of the panels to the side
wall angles at this time.
Continue
weather stripping the ridge opening.
NOTE
Narrow roof panel crimped rib is
overlapped by wide rib of
adjacent panel where possible
28
Step 15
SR28hw
●●
●●
● 9087 Left Roof Panel (1)
●●
●●
● 7743 Roof Panel (2)
●●
●●
● 6869 Ridge Cap (1)
● Parts Needed For ●
Ridge Cap & Panels
2 Cover the joint at the peak with
weather stripping tape. Unroll the
tape and press it down over the open-
ing at the ridge as you install each
roof panel. Do not cut the tape at this
time.
4 Install the first ridge cap 6869 on
the completed roof section using bolts
and nuts. Do not fasten the ends of
the ridge cap at this time.
5 Fasten the roof panel ribs, peak
cap and ridge cap together using
bolts and nuts.
Screws To
Roof Beam
Fasten At
Overlap With
Bolt
Fasten at
Overlap With
Bolt
Screws To
Roof Beam
Do not fasten
at this time
Weather
Stripping
Tape
STEP
5
STEP
2
STEP
4
STEP
1
7743
Roof Panel
STEP
3
7743
6869
9087 Left Roof Panel
(24)
(12)
To Next Page
