● 6515 Wall Panel (8)
● Parts Needed For ●
Wall Panels

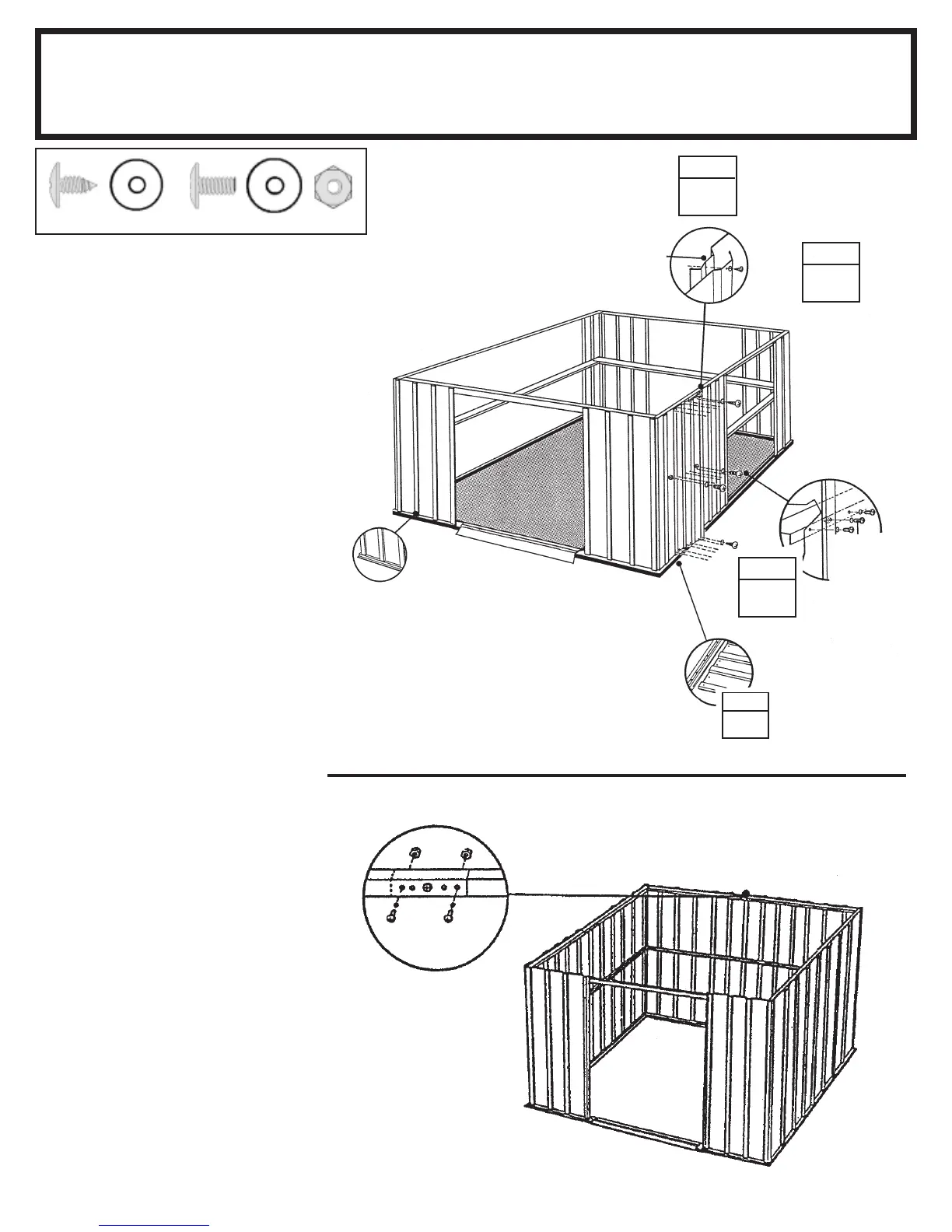

Step 9
SR22hw
22
Each wall panel has a crimped rib on
one side. The crimped rib should go
under the rib of the panel that follows
it.
1 Locate all of the wall panels and
set each one alongside the building.
2 Fasten the wall panels at the top
and bottom with screws.
3 Fasten the center of each panel to
the wall channel with screws.
4 Fasten overlapping ribs as before.
STEP
1
3
STEP
4
STEP
6515
Bolt and nut
does not go
thru wall
channel at
overlap
Panels rest on
frame as shown
6515
Crimped Rib
Underneath
2
STEP
Detail Showing
Center of Panel
Screwed to
Wall Channel
Use bolts and nuts
thru wall angle
overlap at the top
of panel at rear.
(116) (13)
To Next Page
