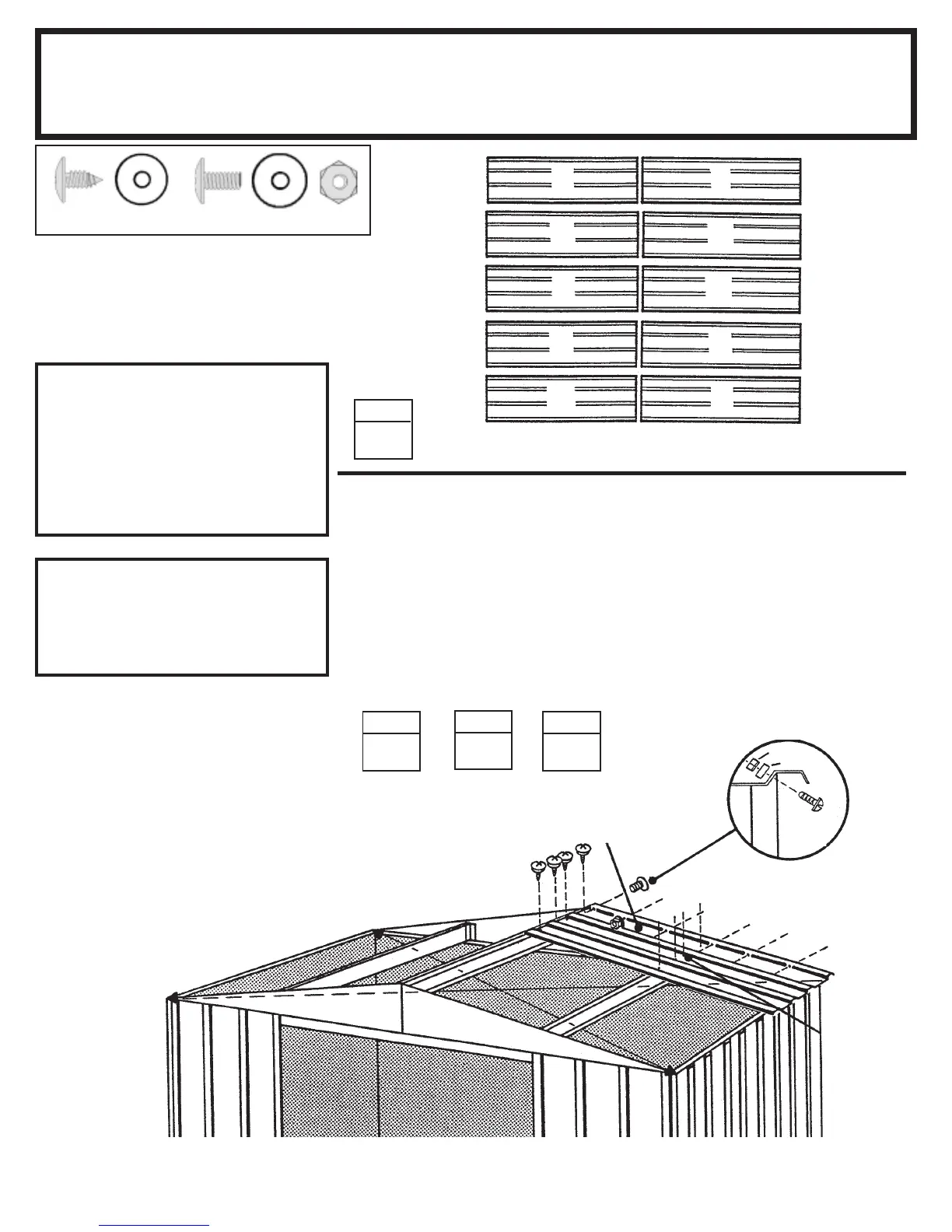

Arrow LW1012FB - Step 14: Right Roof Panel Installation

Step 14
SR27et
● Parts Needed For ●
Right Roof Panel
●●
●●
● 9086 Right Roof Panel (1)
Installing the roof panels is best done
with a step ladder. Install the first roof
panel at the back right corner of the
building. Each screw and bolt in the
roof requires a washer.
NOTE
Measure the building diagonally
again and make adjustments to
make sure the building is square
and level. This will make the roof
panels fit better, and holes will
align. Don't anchor the floor frame.
NOTE
If a Roof Beef-Up Kit was
purchased, assemble prior to
attaching the roof panels.
1 Locate the roof panels and find the
right roof panel.
2 Position a right roof panel at the
back right corner and fasten to the top
roof beam using screws.
27
Bolt
(6)
STEP
Nut
Washer
Gable
Right Roof Panel
9086
1
2
3
4
5
STEP
1
1
3
5
7
2
4
6
8
9086
9086
9087
9087
7743
7743
7743
7743
10
9
7743
7743
10
(8) (6)
Hint: Follow the fastener sequence
shown for proper alignment.
11 thru 14
3 Remove edge trim from the left gable
under the roof panel.
4 Continue fastening the right roof panel to
the gable and lower roof beam using screws,
bolts and nuts as shown. Do not fasten the
lower end of the panels to the side wall
angles at this time.
7
8
9
6
STEP
2
STEP
3
4
