● Front Floor Assembly (1)
●●
●●
● Side Floor Assembly (2)
●●
●●
● Rear Floor Assembly (1)
● Parts Needed For ●
Floor Frame
Step 5
SW18hw
The floor frame must be square
and level or holes will not align.
18

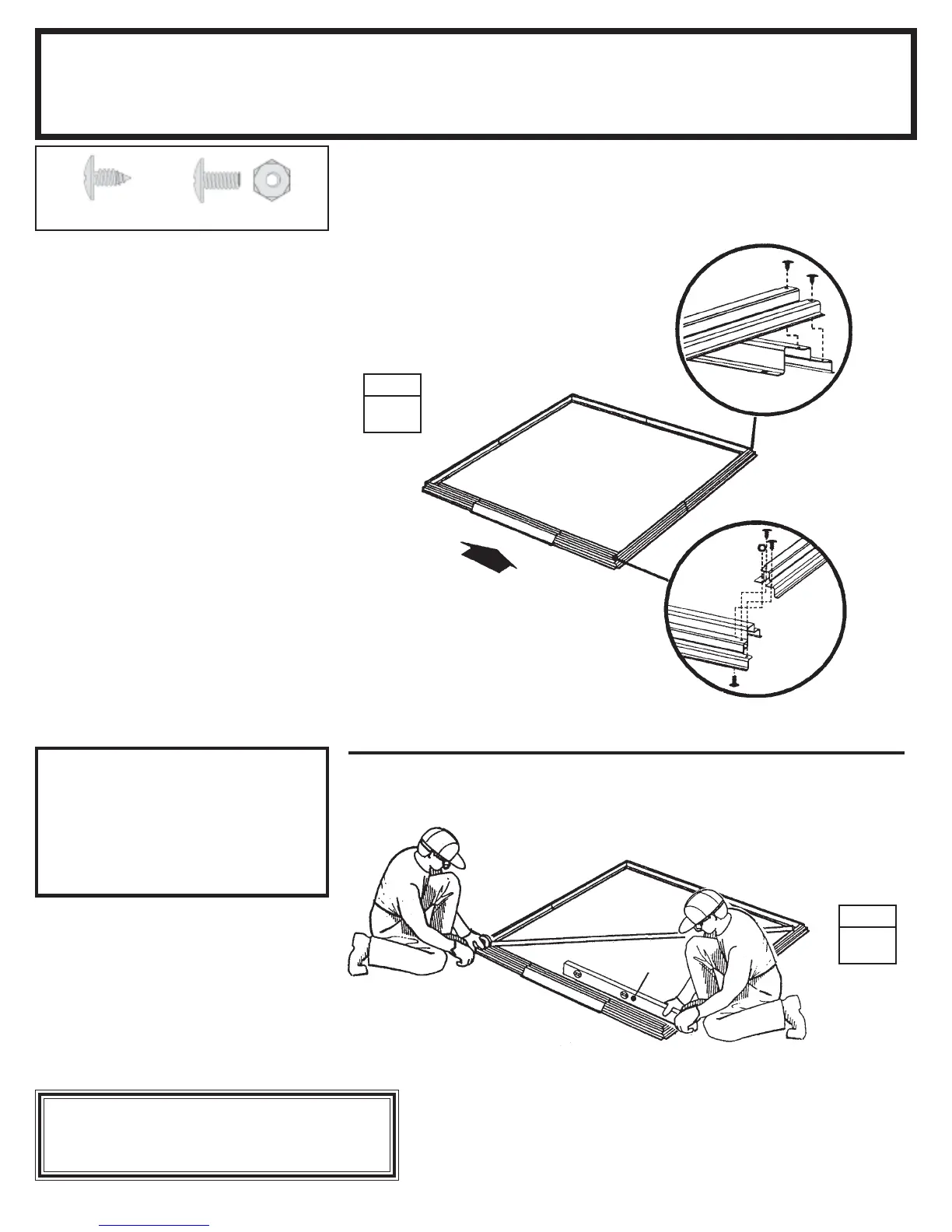

1 Assemble the four corners of the
floor frame using two screws at each
corner as shown. At the front corners
fasten bolts through from
the bottom with nuts on top.
2 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
STEP
1
10392
RIGHT
REAR
8936
Level
10392
RIGHT
FRONT
9367
STEP
2
When Diagonal Measurements
are Equal the Floor Frame
is Square.
FRONT
(8) (2)
To Next Page
