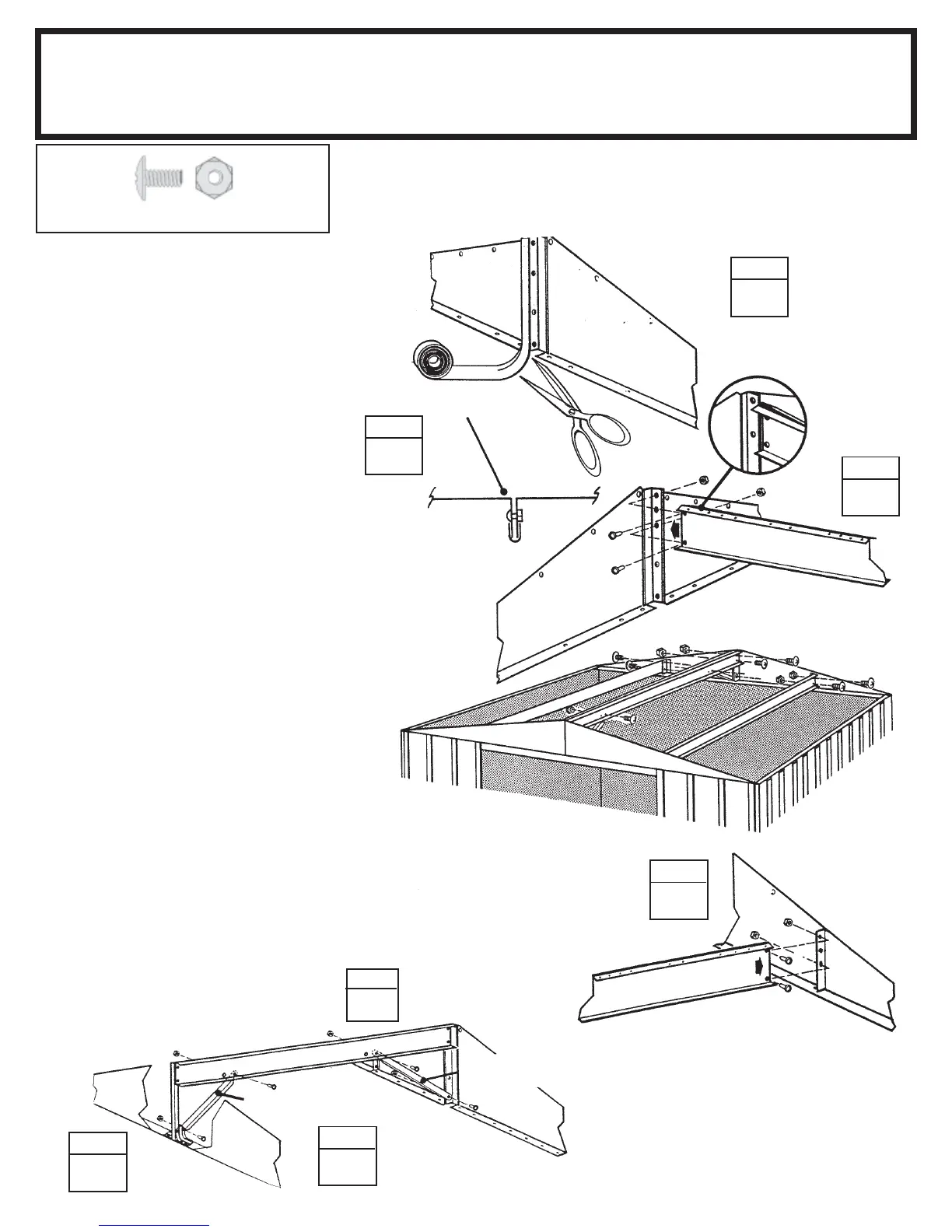

● Parts Needed For ●
Roof Beam//Braces
Step 13
SR26hw
●●
●●
● Roof Beam Assemblies (3)
●●
●●
● 9204 Roof Beam Brace (2)
26
1 Wrap the weather stripping tape
around the two joined edges of the
left and right gables. See diagram.
Cut the weather stripping to length.
2 Spread the two halves of the main
roof beam and fasten the roof beam
to the gable brace of the front gable.
3 Fasten the other end of the main
roof beam to the gable brace of the
rear gable.
STEP
6
STEP
2
Roof Beam Brace 9204
STEP
7
9204 Roof Beam Brace
4 Fasten the single roof beam,
small holes on top
, as shown using
bolts and nuts.
5 Fasten a roof beam brace to the
main roof beam behind the front gable
by placing the tab on the end of the
brace
between
the roof beams. Align
the tab with the
second
hole and
fasten the brace with a bolt and nut.
6 Fasten the lower end of the roof
beam brace to the track support
with a bolt and nut.
7 Fasten a roof beam brace
be-
tween
the rear gable and the roof
beam at the
first
hole, as shown.
STEP
5
STEP
4
STEP
3
Roof Beam (Single)
STEP
1
Weather Stripping
Spread Two Halves
Of Roof Beams
Roof Beam (Double)
(16)
To Next Page
