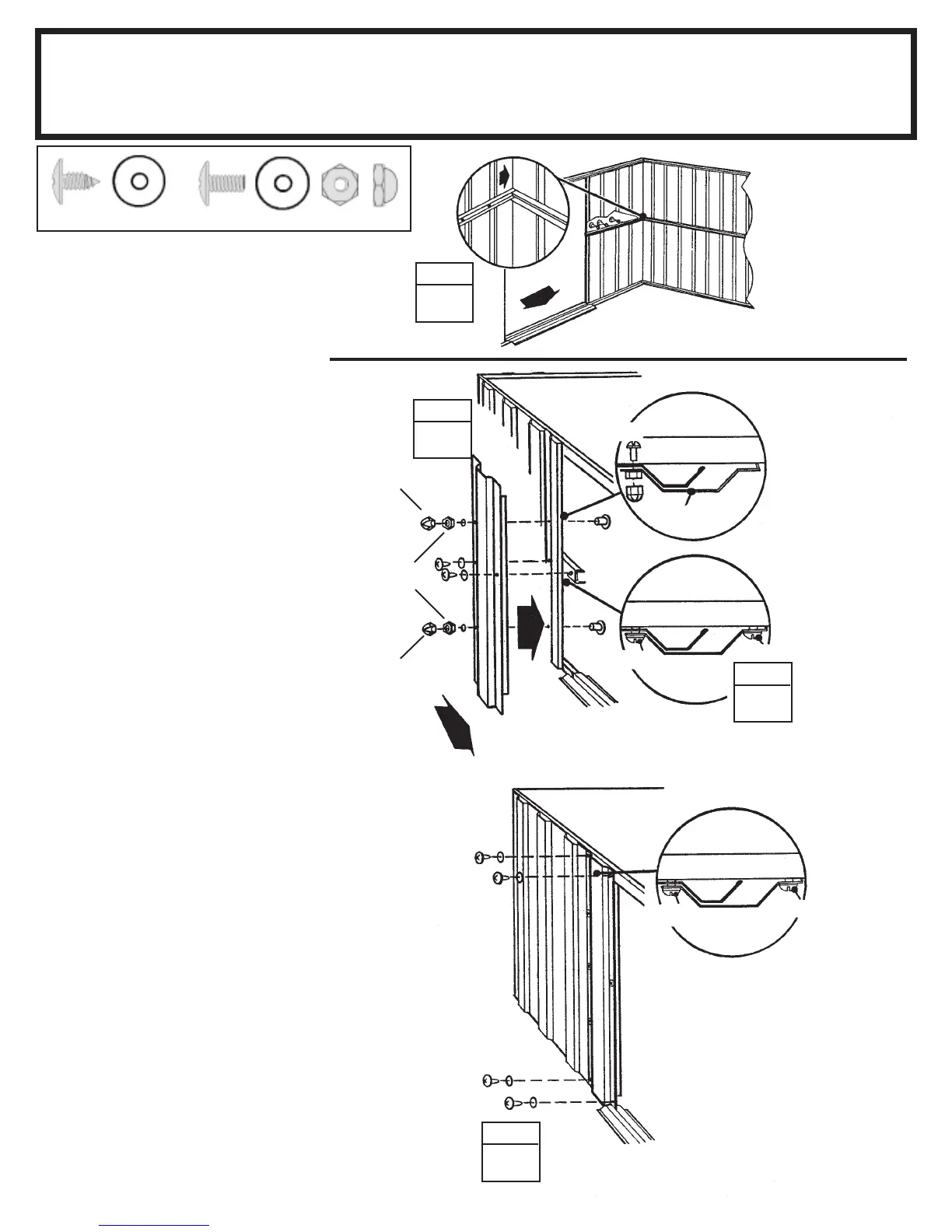

Arrow LW1012FB - Step 10: Door Jamb Installation

●●
●●
● 9369 Door Jamb (2)
●●
●●
● 9365 Front Wall Channel (2)
● Parts Needed For ●
Front Channel/Door Jamb
Step 10
SO23hw
The door jambs reinforce the door
opening and provide an attractive
trim. Follow these steps for both
door jambs.
1 Fasten the front wall channels
in their positions between the end of
the side wall channel and the cor-
ner panel using screws. Do not put
a screw in the hole at the end be-
hind the door opening at this time.
2 Fasten a door jamb to the front
panel with two bolts, nuts and acorn
nuts, as shown.
3 Fasten the center of the door
jamb to the front wall panel and the
front wall channel with two screws.
4 Fasten the top of the door jamb to
the door track with two screws. Do
the same for the bottom into frame.
Repeat steps 2 through 4 for the
opposite door jamb.
23
Acorn Nut
Hex Nut
9369
FRONT
Screw
Screw
TOP VIEW
TOP VIEW
Door Track
9369
Front Wall Channel
Front Wall Channel
Cross-Section
Top View
(2) bolts
Bolt
INSIDE OF
BUILDING
9365
FRONT
TOP VIEW
Screw
Screw
Door Track
STEP
4
STEP
3
STEP
2
STEP
1
Acorn Nut
(18)
(4)
