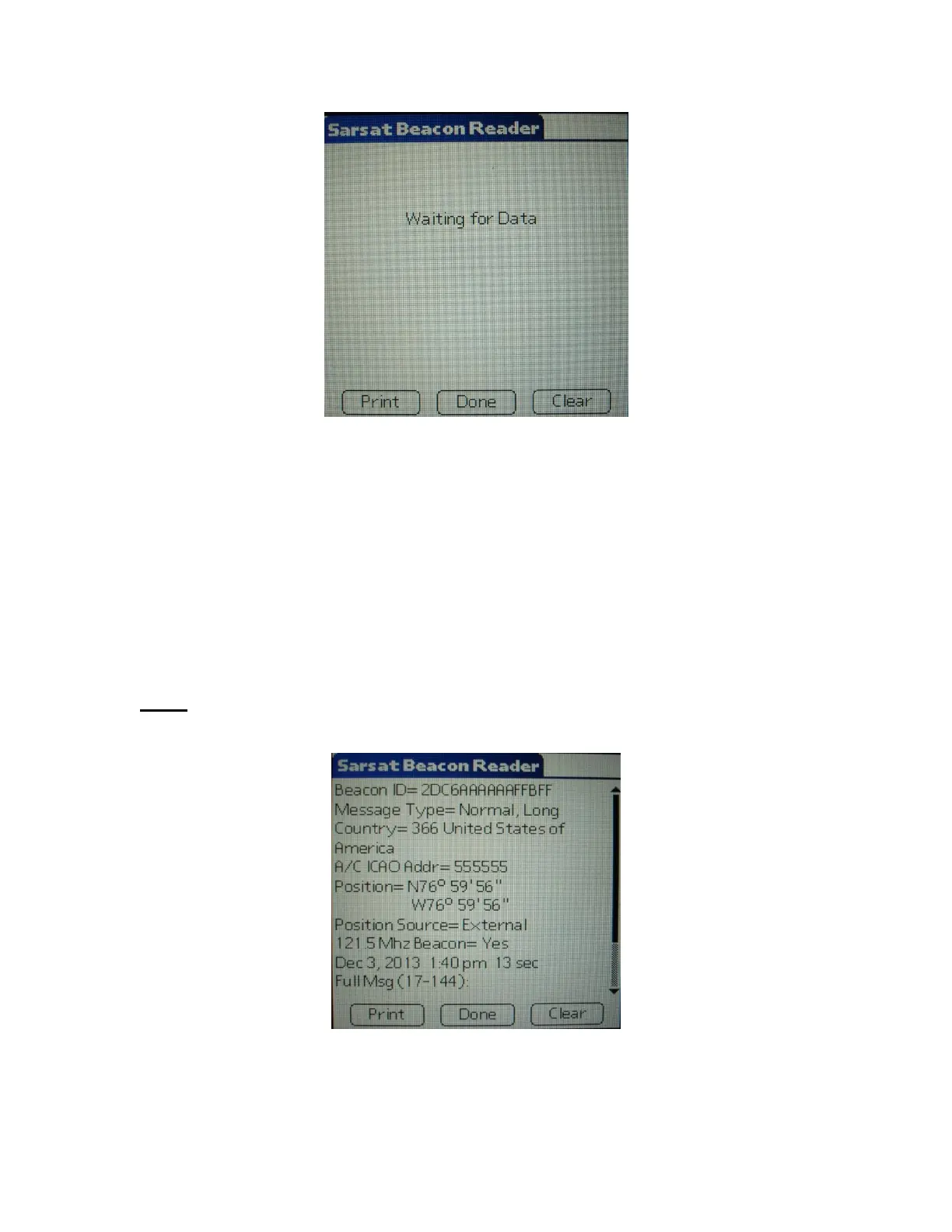

Figure 7: Waiting for Data Screen view
Once a valid message is received, all encoded data is displayed on the screen as shown
in Figure 8. The first line contains the 15 digit Hex ELT ID. This ID is used to register
the ELT with the national authorities (NOAA in USA). The second line indicates the
message type: Test or Normal, and Short or Long. The third line displays the country of
registry code and the country. The fourth line will contain the ELT identifying data. The
ELT identifying data will consist of one of the following: serial number, aircraft 24 bit
ICAO address, or aircraft registration number. ELT type will be displayed (ELT) and also
any auxiliary locating device (121.5 MHz ELT). If the ELT includes a navigation function,
the position will be displayed in latitude/longitude.
NOTE: The received 406 MHz frequency is not displayed. The message will be time
stamped.
Figure 8: Example of Standard Location Data View
