Y1-03-0273 Rev. D A3-06-2825 Handheld Test Set Operations Manual
Company Confidential Page 18

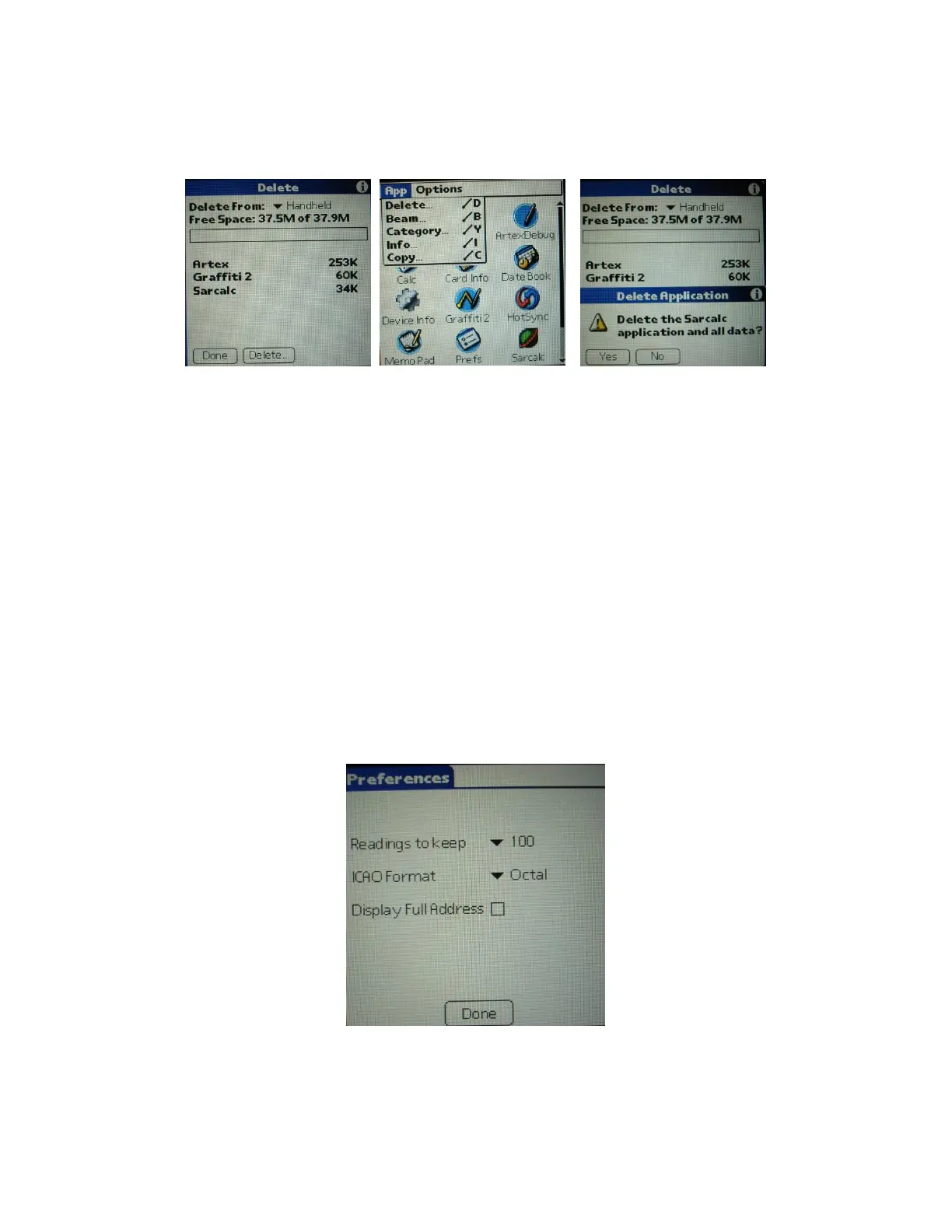

Figure 10: Deleting Database Screen Views
5.2 ELT Reader Preferences
If “Prefs” is selected from the initial Sarcalc screen (Figure 11), the following items may
be selected:
• Readings to keep – 10, 20, 100, 1000
Maximum number of readings to store in the database
• ICAO Format – Octal, Hex, Decimal
Format of ICAO Address display
• Display Full Address – checked, unchecked
Check for display of full ELT message, bits 9 –144 (30 Hex digits) or leave
unchecked to display only bits 26-85 (15 Hex digits)
Figure 11: Preferences Screen View
