Product Description/Features/Intended Use
NanoScope Manual
DFU-0298-1, Revision 0 Page 13 of 38

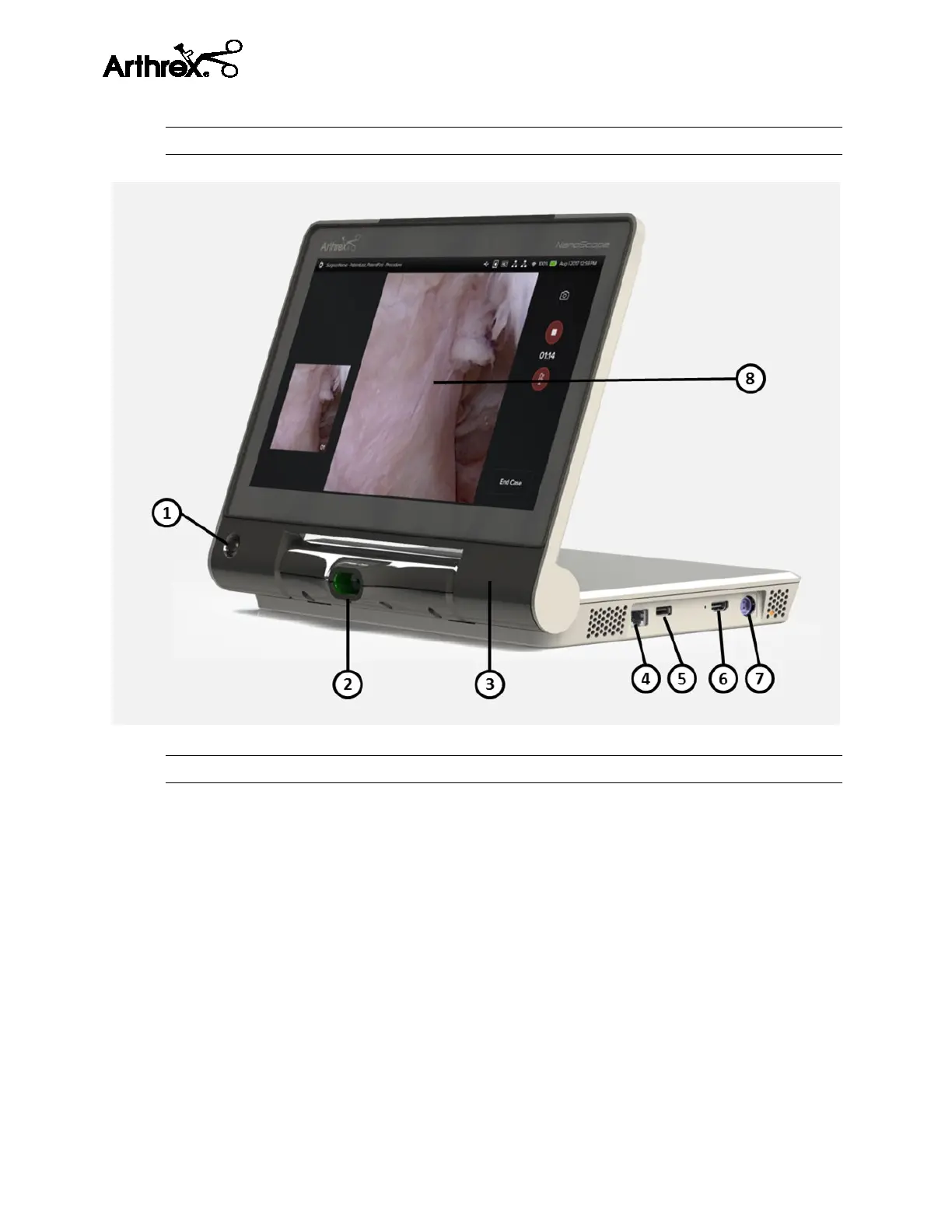

Figure 4 NanoScope Console
Table 4 Elements of the NanoScope Console
1. Power button
2. Handpiece connector
3. Microphone
4. Ethernet port
5. USB port
6. HDMI output
7. Power cable connector
8. Display & touch screen
9. Power adapter (not shown)
