Setup & Use
NanoScope Manual
DFU-0298-1, Revision 0 Page 24 of 38
7. Place the trocar/obturator on sterile field for later use.
8. If needed, attach a fluid source via a luer fitting.
9. Insert the NanoScope Handpiece into the cannula.

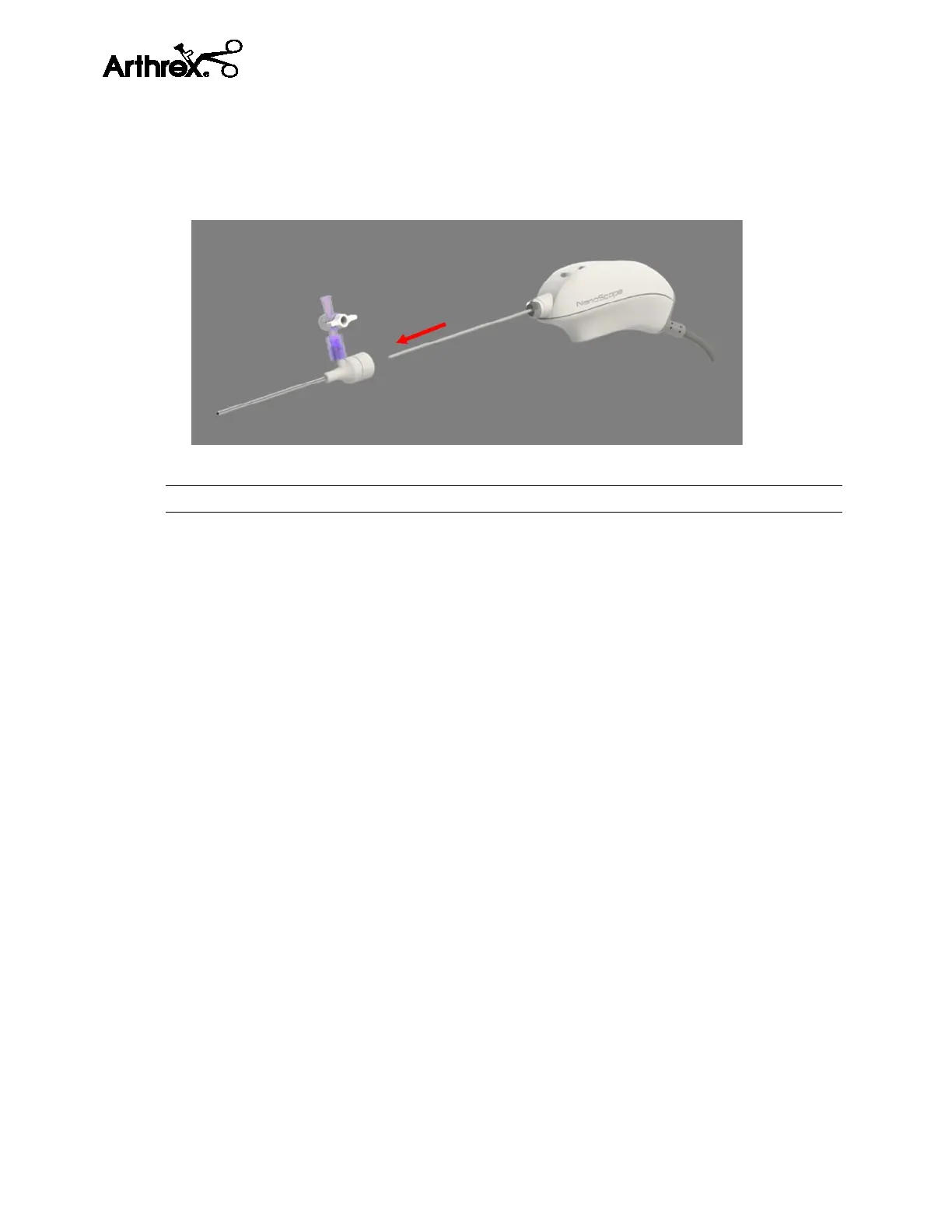

Figure 9 Insert NanoScope Handpiece into cannula as shown.
10. Visualize the cavity/joint.
11. Administer fluid as needed to aid in visualization.
12. If needed, use the additional cannula provided in the kit. Then, repeat the steps
above to establish a second portal.
13. Use the NanoScope Handpiece buttons to capture images or video.
14. The NanoScope Console display can be used to capture images, videos, etc.
(Note: The Console is not sterile and should only be used by someone not
interacting with the sterile Handpiece.)
