Port Specifications
Chapter B
18 Aruba AP-60/61 0510160-03
Installation Guide April 2008
Install cables in accordance with all applicable local regulations and practices.
Serial Breakout Adapter
The optional serial breakout adapter is used to separate the serial
communications lines from the Aruba AP-60/61 FE+SPOE port. This allows the
administrator to connect a local serial console directly to the AP and access the
apboot prompt for manual provisioning.
The serial breakout adapter pin-outs are shown in Figure B-2:

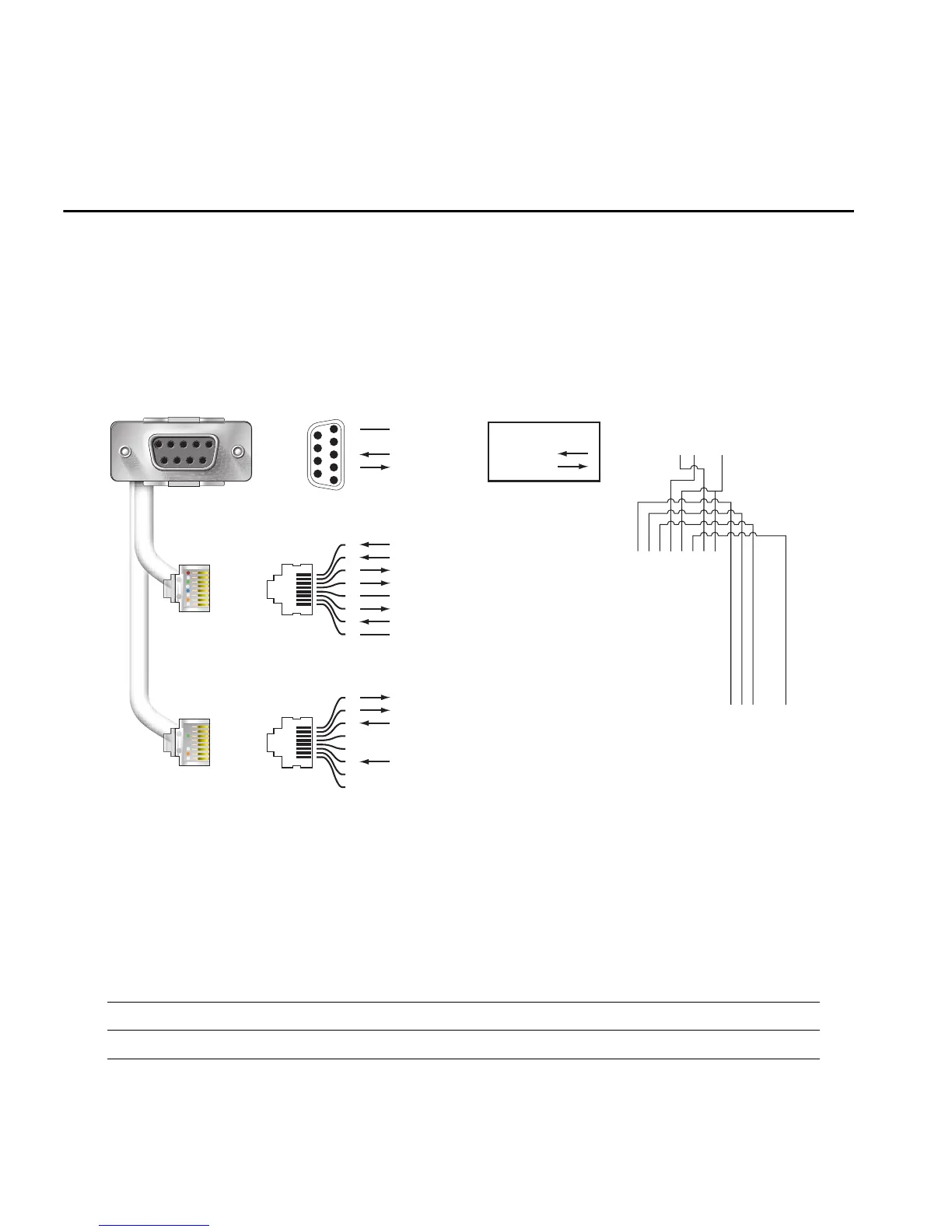

FIGURE B-2 Aruba Serial Breakout Adapter
DB-9 Specification
The DB-9 connector attaches to the serial port of a console terminal.
Communication settings for the port are specified in Ta b l e B - 1 :
TABLE B-1 Console Terminal Settings
Baud Rate Data Bits Parity Stop Bits Flow Control
9600 8 None 1 None
RJ-45 Male "To Network" Pin-Out
1
2
3
4
5
6
7
8
ETH Tx+ (POE negative)
ETH Tx– (POE negative)
ETH Rx+ (POE positive)
ETH Rx– (POE positive)
Serial TxD
Serial TGND
Serial RxD
Serial RGND
RJ-45 Male "To AP" Pin-Out
1
2
3
4
5
6
7
8
ETH Rx+ (POE negative)
ETH Rx– (POE negative)
ETH Tx+ (POE positive)
ETH Tx– (POE positive)
RxD
TxD
SG
5
4
3
2
1
9
8
7
6
DB-9 Female Pin-Out
Input
Output
Direction
123456789
12345678
12345678
Internal Adapter Wiring
"To AP"
"To Network"
To Console
