Asclepion MeDioStar - Labels at the Mediostar Device

Start up
18 1590 99 002_1 - 21. February 2011

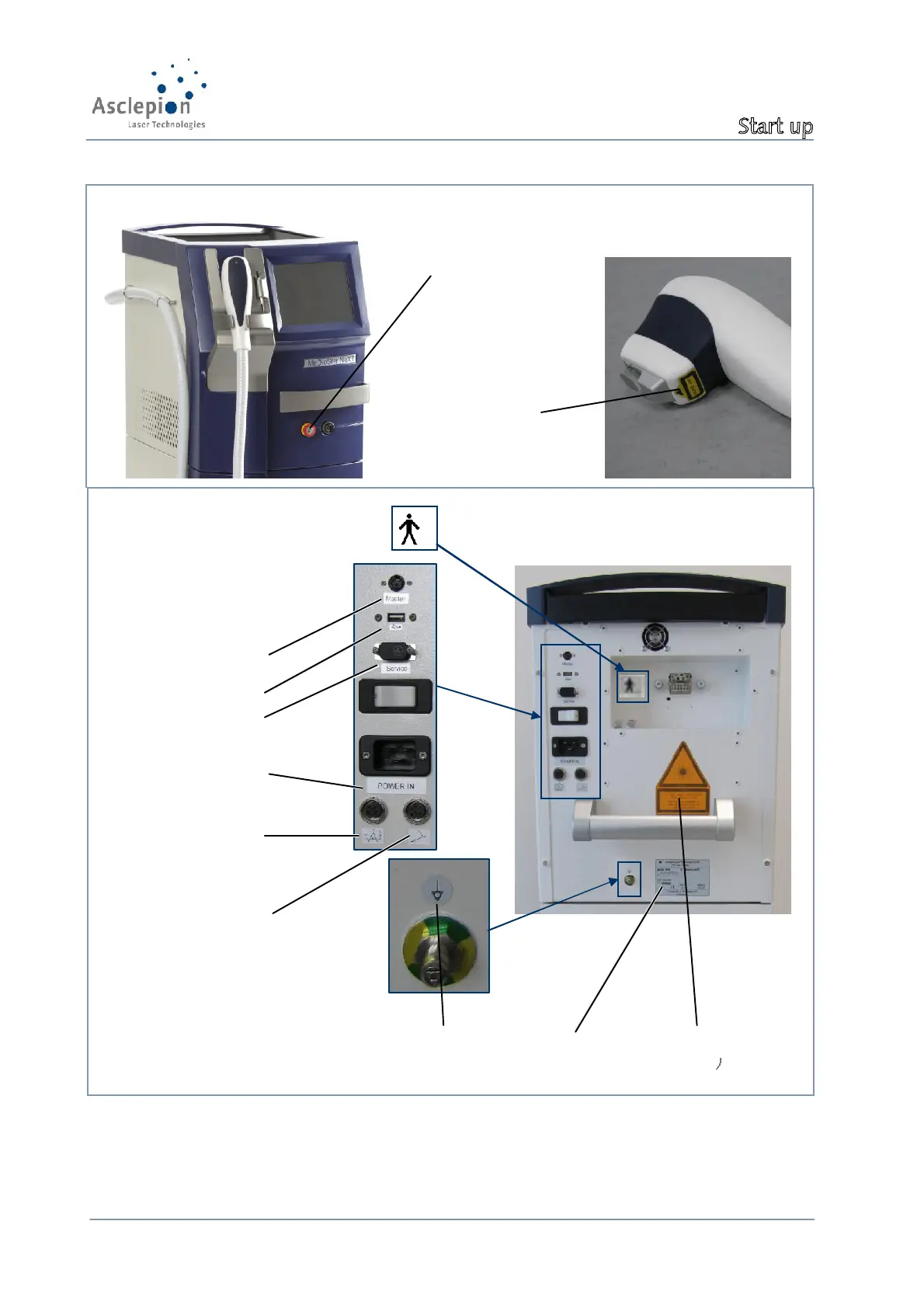

Figure 7: Labels at the MeDioStar device
Label on Laser emergency
STOP
switch at the front side of the
device (
Figure 8)
Labels at the beam exit a
p-
erture at the handpiece
(Figure 9)
Laser warning label
EN 60 825-1
(Figure 13
Labels for interface conncetions
at the
rear panel of the device:
(
Figure 10)
Label for potential equalization
connection
(Figure 11)
Type plate
(Figure 12)
Master interface
USB interface
Service interface
Line power input
Remote door interlock
contact
Connector for foot switch
Protection class B
of application parts
