ASCOM IP-DECT IPBS2 User Manual

TD 92989EN
15 October 2014 / Ver. B
Installation Guide
IP-DECT Base Station & IP-DECT Gateway
20

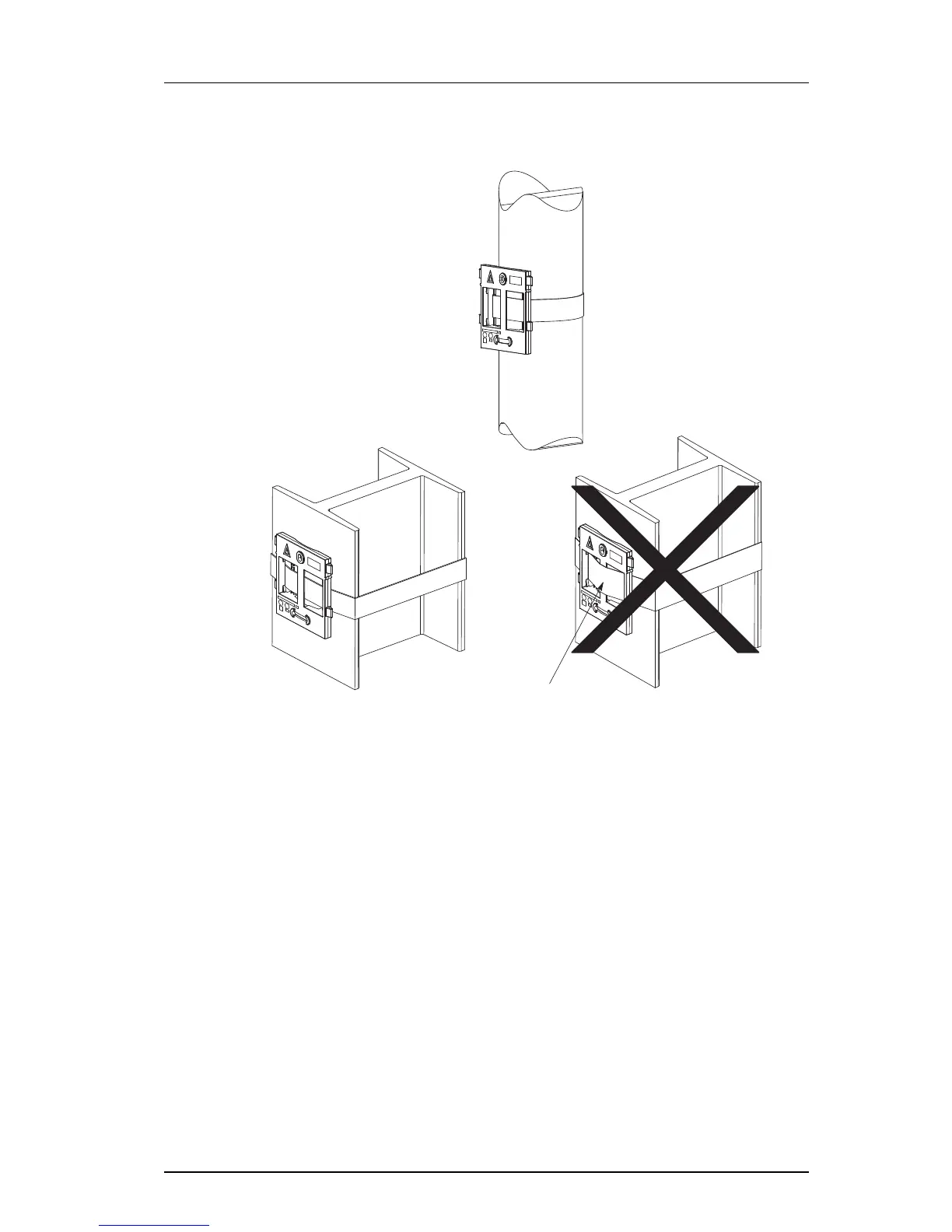

Figure 9. Fixing the mounting bracket to a pole or beam.
3.2.4 Use the Cable Ducts for IPBS1
When the base station IPBS1 is mounted to the wall, cable ducts can be used to route the
wiring through.
1 Fix the cable duct to the wall in one of the positions shown in figure 10 on page 21.
Tied wrongly
012
