2 Description
This section gives a general description of the following devices:
• IPBS1, see 2.1 IPBS1
• IPBS2, see 2.2 IPBS2 on page 5
• IPBL, see 2.3 IPBL on page 9
• BS3x0, see 2.4 BS3x0 on page 12.
• DB1, see 2.5 DB1 on page 14
2.1 IPBS1
The following versions of the IPBS1 are available:
• IPBS1 with internal antenna
• IPBS1 with external antennas
2.1.1 IPBS1 with Internal Antenna

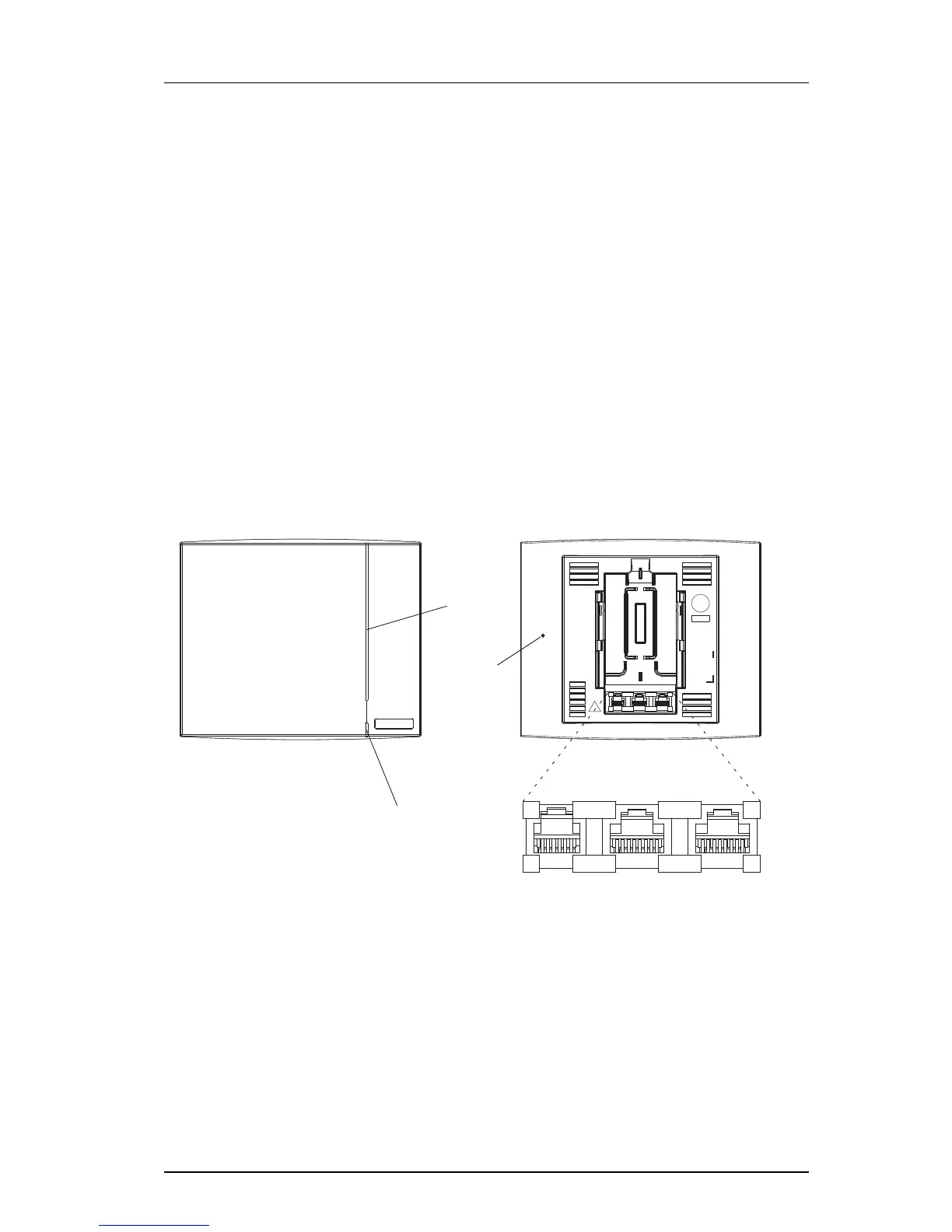

Figure 1. IPBS1 Overview
Contents of the Box
The box in which the IPBS1 is packed contains:
• An IPBS1 with integrated antennas
• A mounting bracket
• Two screws with wall plugs
Test
(RJ12)
LAN
(RJ45)
Power Supply
(RJ45)
Front view Back view
LED1
LED2
005
Reset
