3.2.6 Secure the Cable
For safety reasons secure the base station cable to
a convenient point at about 30 cm from
the base station.
If for some reason the base station drops, it is secured by the cable.
3.2.7 Pinning
1 Cut the cable to the correct length and conne
ct the cable to a RJ45 modular jack.
2 For information on the pinning of the data jack see the following:
• IPBS, Pin the IPBS Cable on page 23.
• BS3x0 and DB1, Pin the BS3x0/DB1 Cable on page 24.
Do no
t plug the connector in the base station yet!
NOTE: Since the distance between the ba
se station and the wall is limited, a RJ45 modular
jack without cable retention must be used.

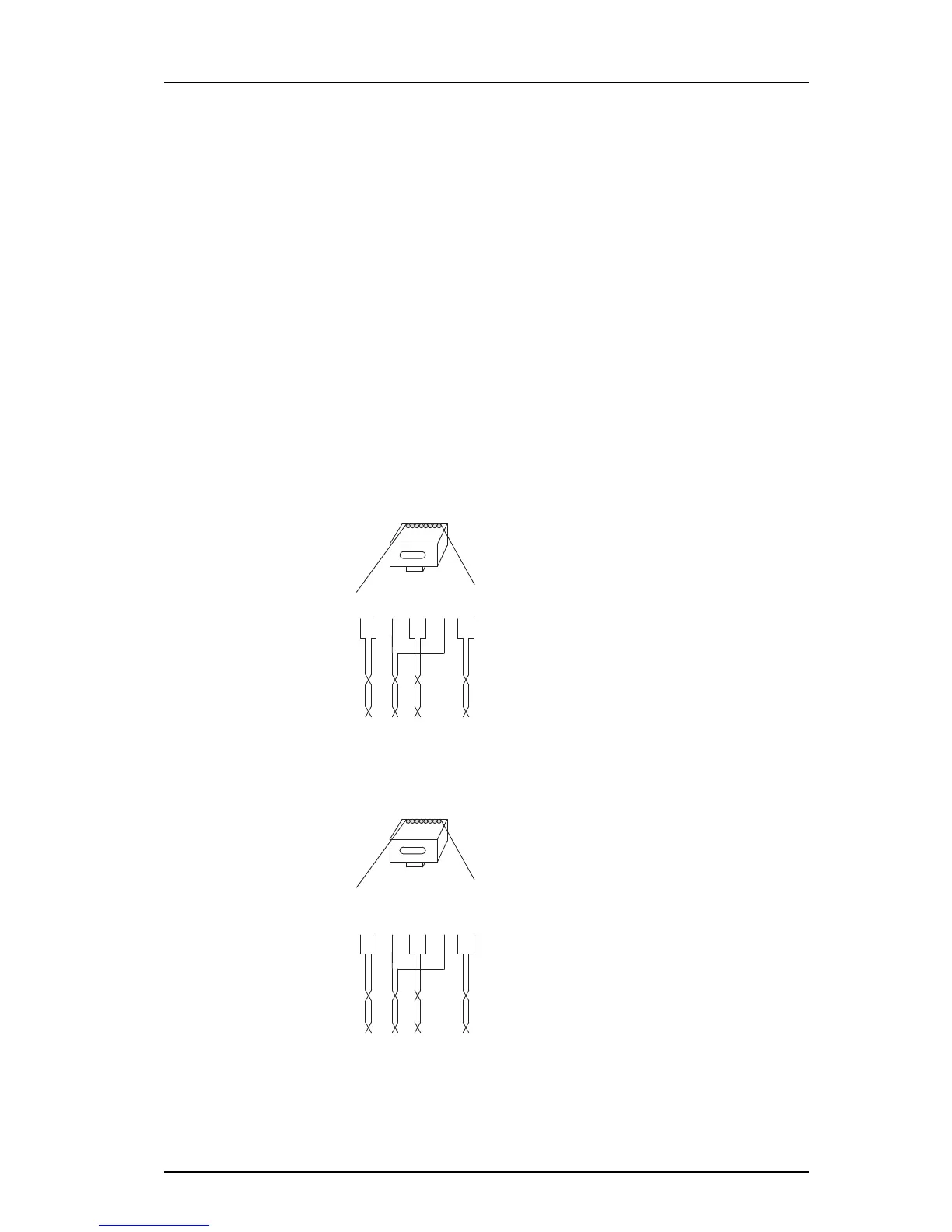

Pin the IPBS Cable
RJ45
modular jack
Tx Tx Rx Pwr Pwr Rx Pwr Pwr
Pwr = Power pairs
Rx = Reciever data pair
Tx = Transmitter data pair
014
15432678
Figure 12. Connector pinning of the LAN/PoE connector, power feed over the spare
cable pairs.
RJ45
modular jack
Tx/Pwr Tx/Pwr Rx/Pwr Spare Spare Rx/Pwr Spare Spare
NC = Not Connected
Rx/Pwr
= Reciever & power pair
Tx/Pwr = Transmitter & power pair
015
15432678
Figure 13. Connector pinning of the LAN/PoE connector, power feed over the Rx/Tx
data cable pairs.
