Ascon tecnologic TLY25 User Manual

7.4 – FUNCTIONAL FEATURES
Temperature Control: ON/OFF mode
Defrost
control:
interval cycles or at programmed times (Real Time
Clock Defrosting) by Electric Heating or hot-gas / reverse cycle
Measurement range: PTC: -50...150 °C / -58 ... 302 °F;
NTC: -50...109 °C / -58...228 °F
Display resolution: 1 ° or 0,1°
Overall
accuracy:
+/- 0,5 % fs
Sampling
rate:
130 ms.
Display: 4 Digit Red h 12 mm
Endurance time of the internal clock without power supply: 4 hours
approx. by internal condenser
Compliance: ECC directive EMC 2004/108/CE (EN 61326), ECC
directive LV 2006/95/CE (EN 61010-1)
7.5
- INSTRUMENT ORDERING CODE
TLY 25 a b cc d
a : POWER SUPPLY
H = 100...240 VAC
F = 12 VAC/VDC
b : REAL TIME CLOCK DEFROSTING
C = Yes
- = No
cc : SPECIAL CODES
d : SPECIAL VERSIONS
Ascon Tecnologic - TLY25 - OPERATING INSTRUCTIONS - PAG. 11

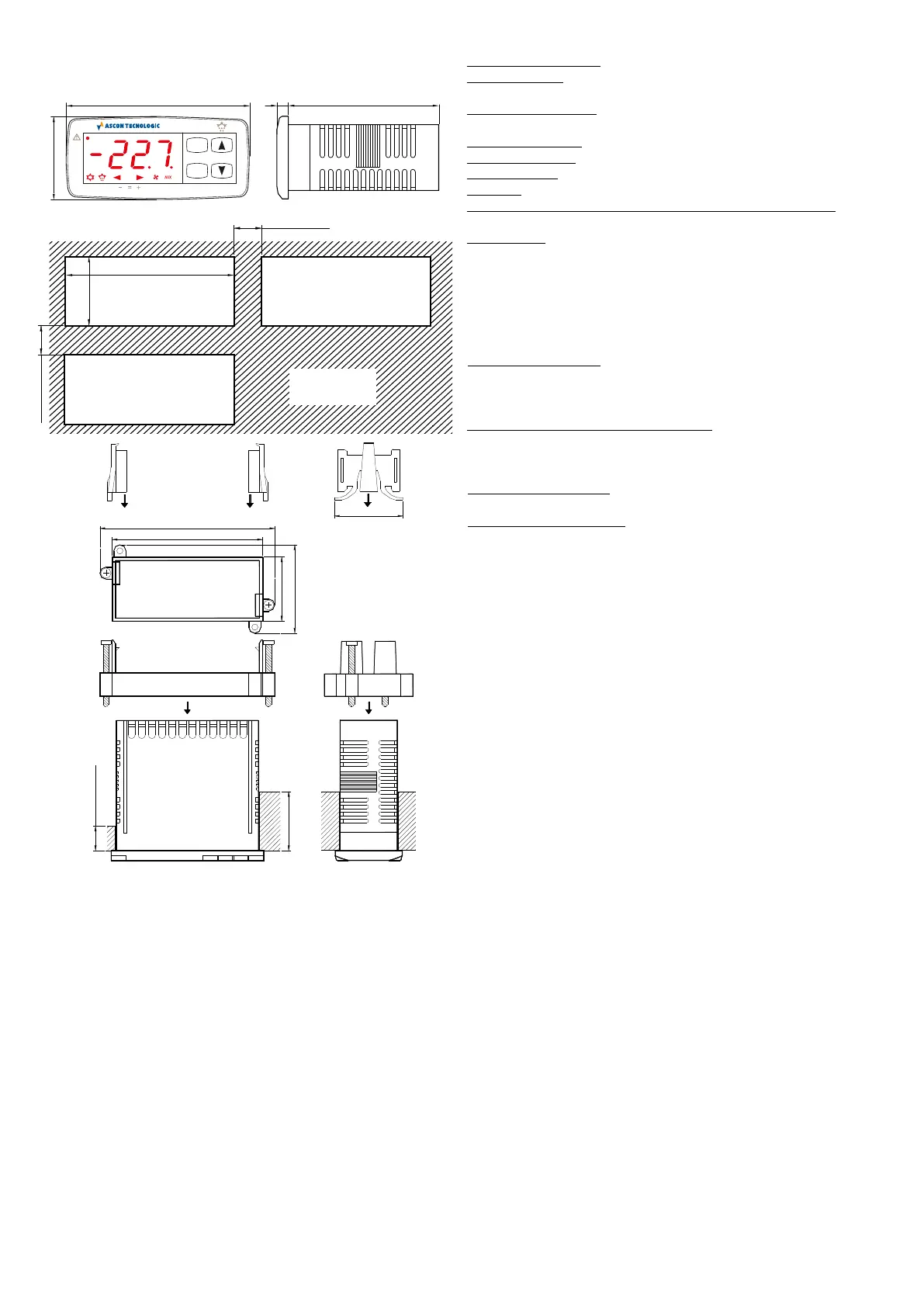

7.3 – MECHANICAL DIMENSIONS, PANEL CUT-OUT AND
MOUNTING [mm]
TYPE 1
PANEL + GASKET
PANEL + GASKET
TYPE 2
BRACKET
TYPE 1
BRACKETS
TYPE 2
86
74
43
31
34
MAX 12 mm
MAX 29 mm
min. 15 mm
71
RECOMMENDED
PANEL CUTOUT
min. 12 mm
29
78
5.5
64
TLY25
U
P
OK
Out Def Fan
Aux
35

Ascon tecnologic TLY25 Specifications

General

Brand	Ascon tecnologic
Model	TLY25
Category	Controller
Language	English
