PAGE 5

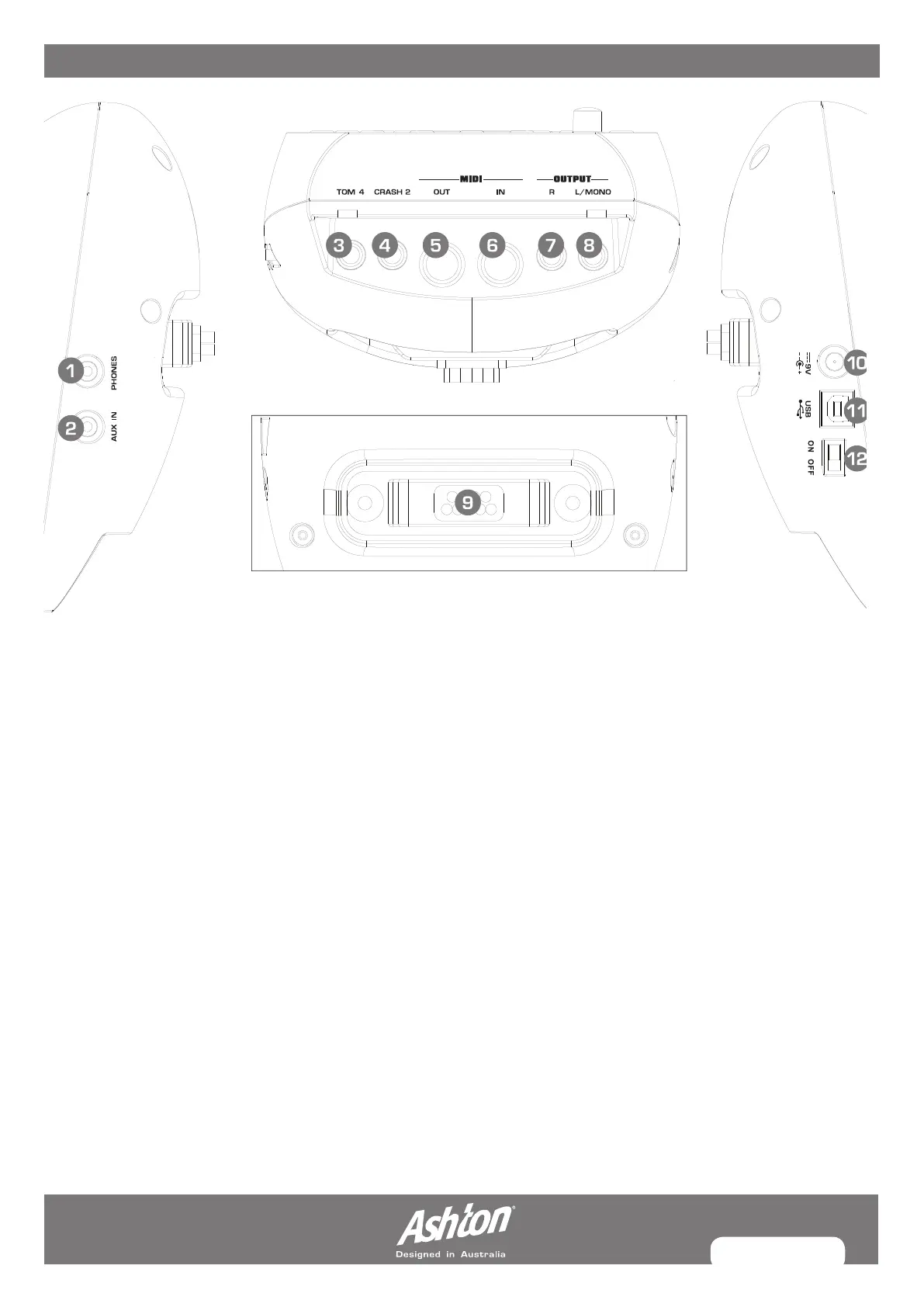

MODULE: SIDE/BACK PANEL DESCRIPTION

1. PHONES OUTPUT: ½” jack for headphones output.

2. AUX IN: Allows external device input such as MP3 and CD.

3. TOM4 INPUT: Input for additional Tom connection.

4. CRASH2 INPUT: Crash for additional crash connection.

5. MIDI OUT: Allows communication to other products

equipped with a MIDI interface.

6. MIDI IN: Allows communication to other products equipped

with a MIDI interface.

7. OUTPUT (R) : Output for external device, amplifier or mixing

desk - Right output for stereo.

8. OUTPUT (L/MONO): Output for external device, amplifier or

mixing desk - Left and mono output.

9. PADS INPUT: Combined input for pad connection.

10. POWER INPUT: Connection for power adaptor.

11. USB CONNECTION: For USB connection (USB A).

12. ON/OFF SWITCH: Switches power ON/OFF.
