17. Install the amplifier modules as required by your system design.
a. Fully open the ejector lever of the amplifier module.
b. Position the amplifier module in the slot through the front of the mainframe.
Align the sides of the module with the card guides on top and bottom of the mainframe to
locate it correctly.

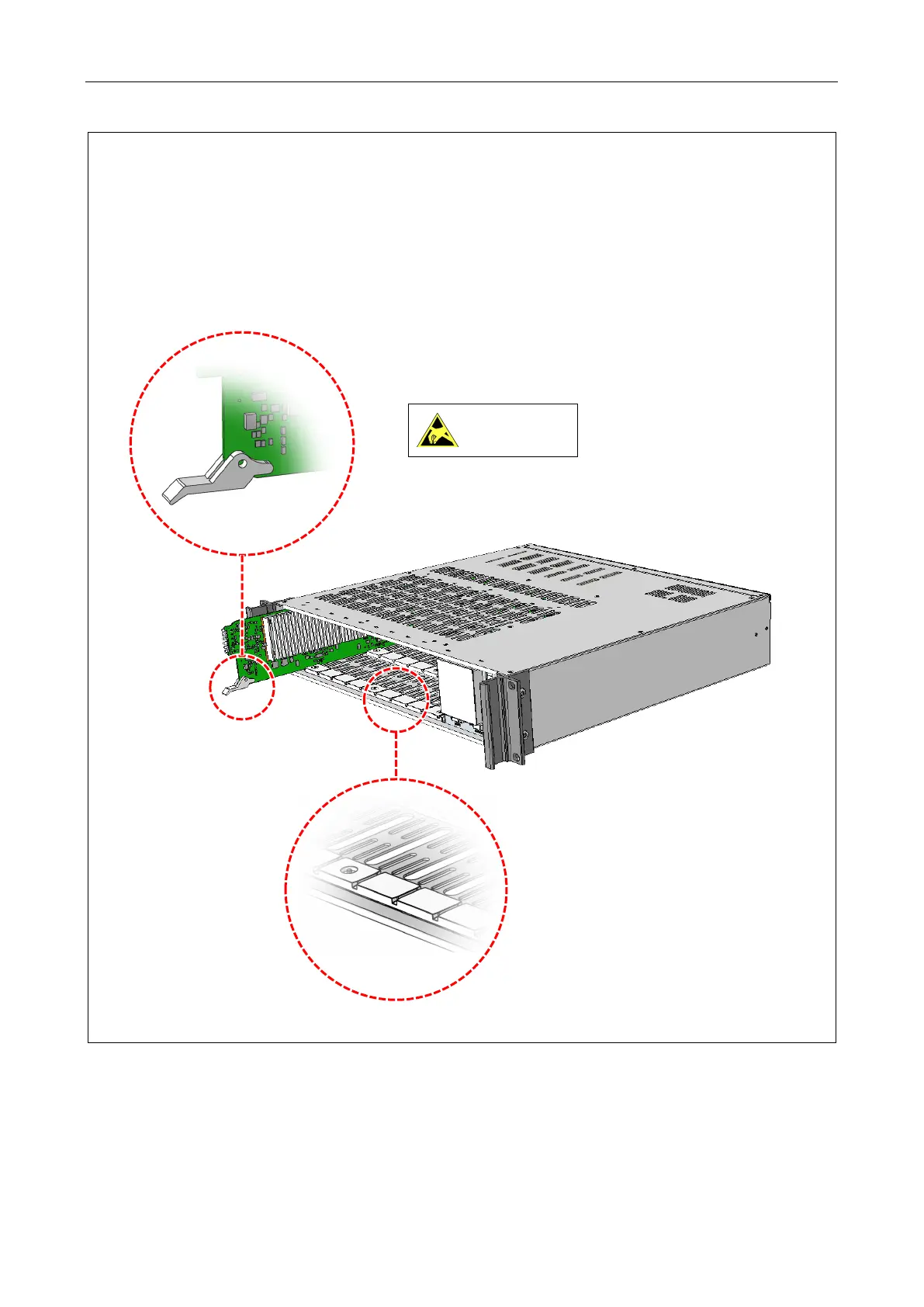

SLOT 1
Ejector lever fully opened.
Card guides on
top and bottom of
the mainframe.
Observe precautions for
handling electrostatic
sensitive devices.
