V2000 – Installation Guide
U-0623-0291.docx – Issue: 04 complete, approved
Page 22 of 40

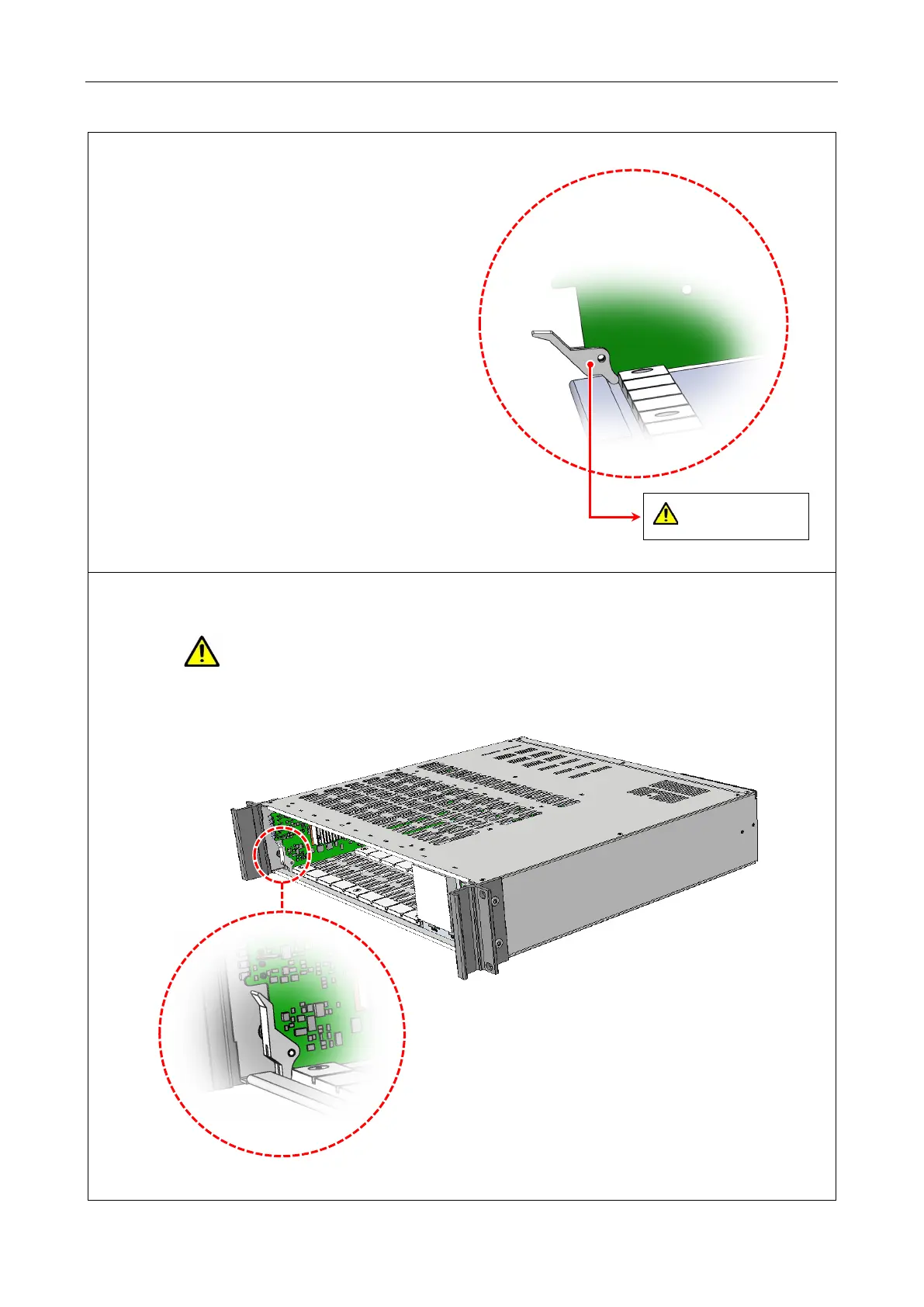

c. Carefully slide the amplifier module
into the slot until the ejector lever
meets the card guide at the bottom.
d. Pivot the ejector lever up just so that
the ejector lever hook fits into the gap
between the bottom card guide and
the mainframe hem.
e. Pivot the ejector lever up to fully seat the amplifier module in the mainframe backplane
Do not force the ejector lever up if the ejector lever hook is not fitted in the gap
between the bottom card guide and the mainframe hem as this may damage the
connectors. If required, re-insert the amplifier module.
Mainframe
Card
guide
Ejector lever hook fitted into
the gap between the card
Ejector lever fully closed.
