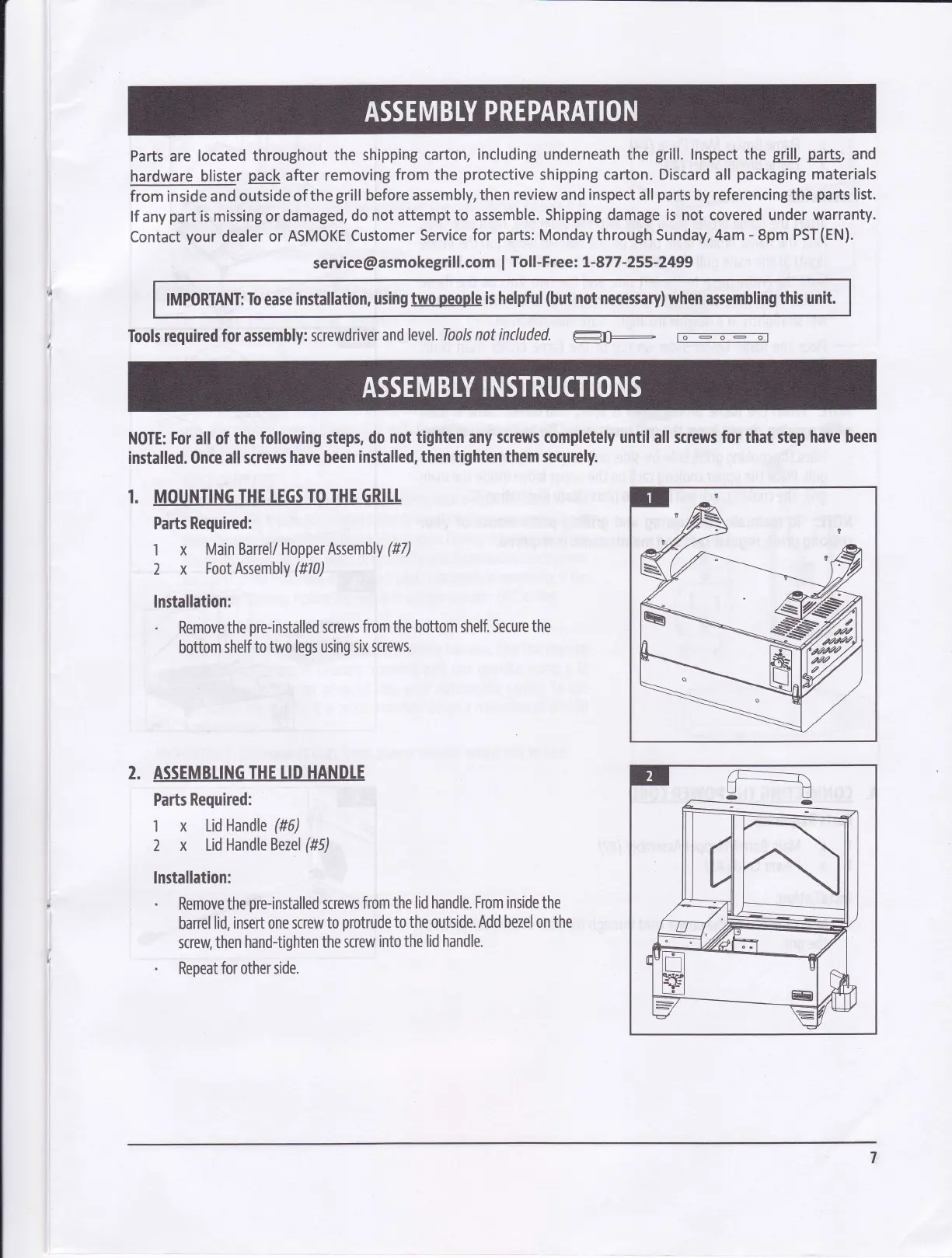

Parts
are located
throughout
the shipping
carton,
including underneath the
grill.
lnspect the
srill.
parts,
and
hardware
blister
pack
after
removing
from the
protective
shipping carton. Discard all
packaging
materials
from inside
and outside
of the
grill
before
assembly,
then review and inspect all
parts
by referencing the
parts
list.
lf any
part
is missing
or damaged,
do
not attempt
to assemble. Shipping damage is not covered under
warranty.
Contact
your
dealer
or ASMOKE
Customer
Service
for
parts:
Monday through Sunday,4am
-
8pm
PST(EN).
se rvice@asmokegri
I l.com
I
To I l-F re
ez
t-877 -255-2499
IMP0RTANT:
To ease
installation,
using two
people
is helpful(but not necessary) when assembling this unit.
Tools
required for assembly:
screwdriver
and level. Tools
not included.
Etr-
ra---
-o
-
o
r
NOTE: For all of
the following
steps, do
not tighten any
screws completely until
all
screws for that step have been
installed. Once all
screws
have
been
installed, then
tighten them securely.
1. MOUNTING
THE TEGS TO THE
GRItt
Parts
Required:
1
x Main
Barrel/ Hopper AssemblV
&7)
2
x Foot
Asembly
(#r0l
lnstallation:
.
Remove
the
pre-installed
screws
from the bottom
shelf. Secure the
bottom shelf
to two legs using
six screws.
2. ASSEMBI.ING
THE TID
HANDTE
Parts Required:
1
x Lid Handle
t'#6/
2
x Lid Handle
Bezel
(#5)
lnstallation:
.
Remove
the
pre-installed
screws
from the lid handle.
From inside the
barrel
lid, inseft one
screw to
protrude
to
the
outside.
Add bezel on the
screw then
hand-tighten the
screw
into the lid handle.
.
Repeatforotherside.
