4. Align the screw holes on the ODD + 2.5" HDD Tray with the screw holes on the chassis.
Fasten the ve screws.
5. Connect the power and SATA data cables and the ODD SATA power connector.
6. Re-install the PSU.
2
3
1

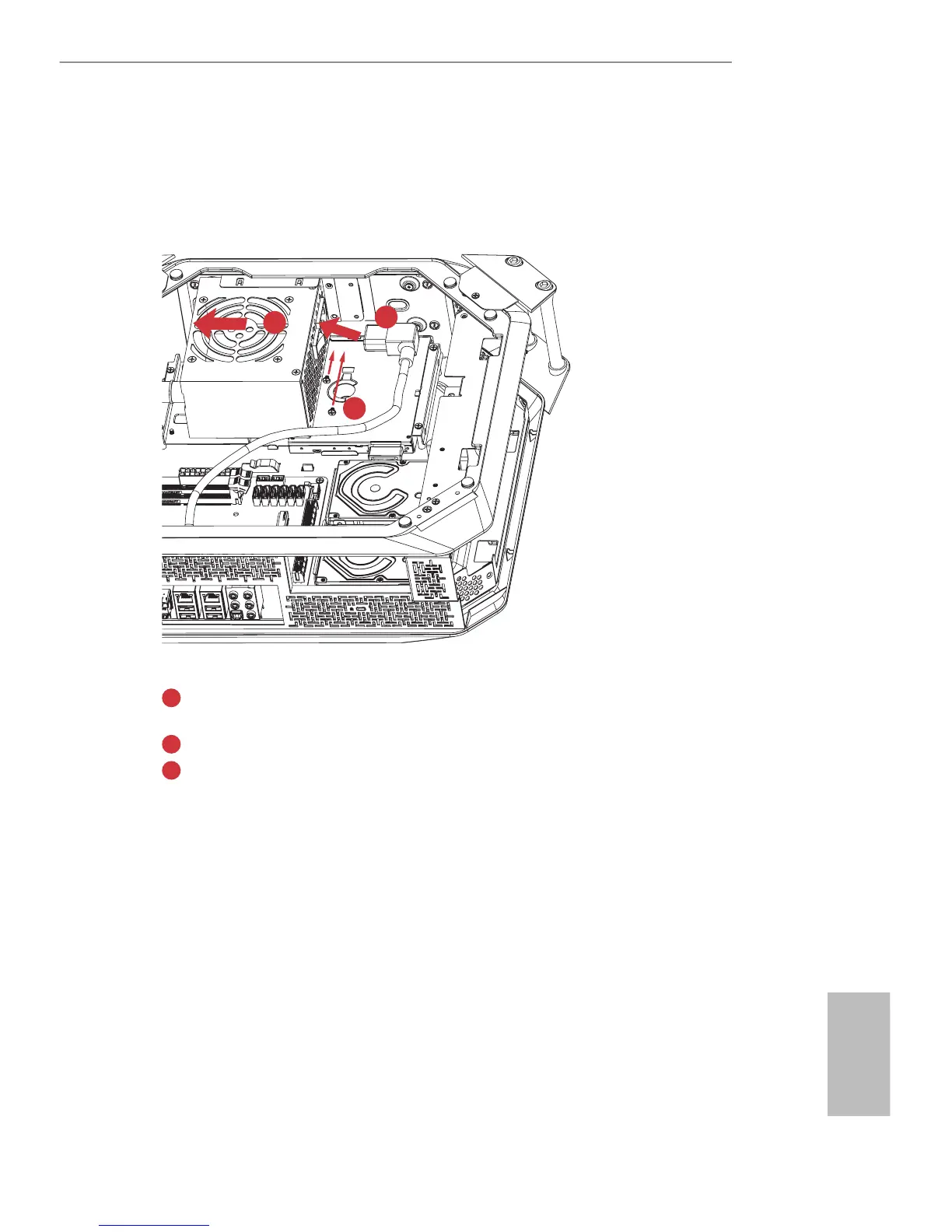

Align the PSU with the starting line and then slide the PSU to the le until it reaches
the end line. Make sure that it clicks into place.
Re-plug the PSU power cable.
Secure the two screws securing the power supply unit.
1
2
3
