8800 Series Mortise Lock
Used with Sectional Trim and V Series Indicators
Installation Instructions
2
80-8800-0016-000 10/23
1-800-438-1951 • www.assaabloy.com
Copyright © 2020, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
#2 & #3 Phillips Head
Screwdrivers
Table of Contents
1. Tools Required ....................................................................................................................2
2. Indicator Variants .................................................................................................................2
3. Lock Set Conguration ............................................................................................................3
4. Rehanding Indicator (if required) ..................................................................................................3
5. Installation ........................................................................................................................4
1. Prepare Door for Mortise Lock ...................................................................................................4
2. Install Lock ......................................................................................................................4
3. Prepare Door for Indicator ......................................................................................................4
4. Install Levers ....................................................................................................................5
5. Install Indicator Mounting Plate .................................................................................................5
6. Install Indicator Assembly .......................................................................................................5
7. Install Cylinder ..................................................................................................................6
8. Install Outside Front ............................................................................................................6
9. Perform Functional Check .......................................................................................................6
6. Indicator Part List ..................................................................................................................7
1. Tools Required
Flat Blade
Screwdriver
1/8" Allen
Wrench
3/32" Drill Bit T-20 Torx Screw
with Tamper Pin
Driver

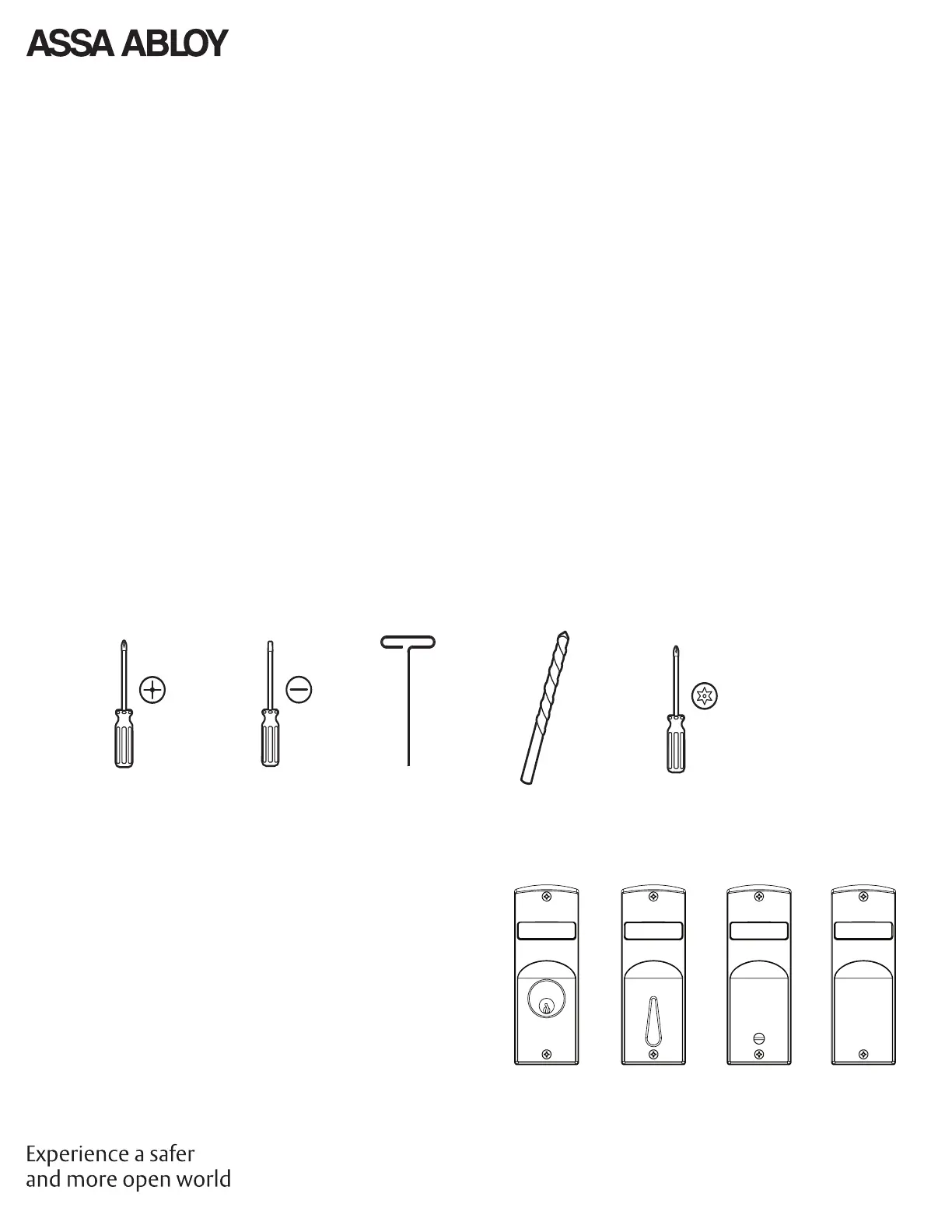

2. Indicator Variants
Cylinder - For
Installation on Inside
or Outside of Door
Figure 1
Thumbturn - For
Installation on
Inside of Door
Coin Turn - For
Installation on
Outside of Door
No input/blank -
For Installation on
Inside or Outside of
Door
Depending on function and option ordered,
indicators are provided in the following
variations. These instructions detail how to
install with cylinder, however other variations
follow similar instructions (Figure 1).
Contact factory for any questions.
