8800 Series Mortise Lock
Used with Sectional Trim and V Series Indicators
Installation Instructions
7
80-8800-0016-000 10/23
1-800-438-1951 • www.assaabloy.com
Copyright © 2020, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

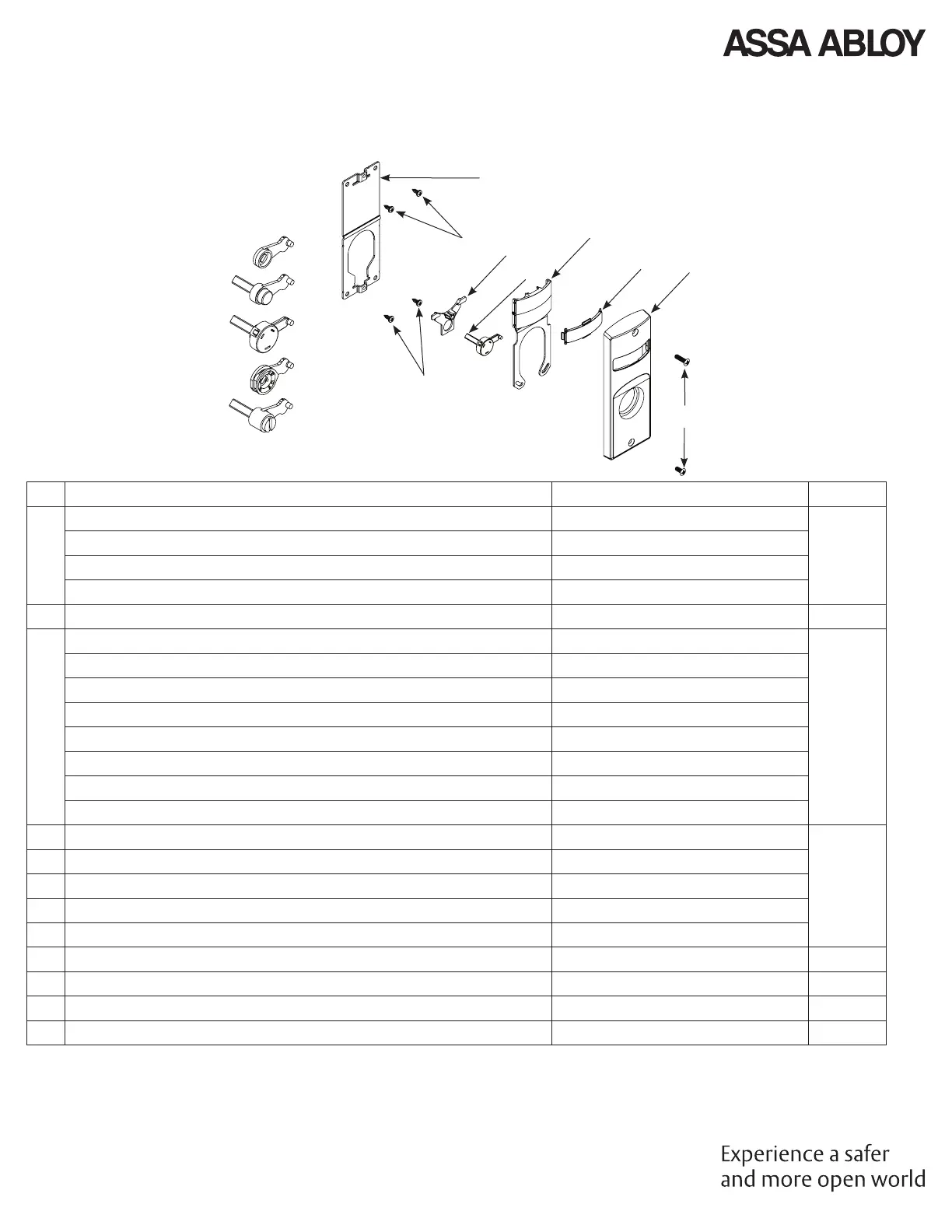

6. Indicator Parts List
# DESCRIPTION PART # REQ.
1
Sectional Escutcheon - Cylinder 81-0472-4000 x nish
1
Sectional Escutcheon - Coin Turn 81-0471-4000 x nish
Sectional Escutcheon - Thumbturn 50-8800-0364 x nish
Sectional Escutcheon - No Input/Blank 81-0473-4000 x nish
2 Indicator Window 856F049 1
3
Indicator Display Assembly - Green Unlocked / Red Locked 82-5602-4000
1
Indicator Display Assembly - Green Vacant / Red Occupied 82-5603-4000
Indicator Display Assembly - Green Unlocked Icon / Red Locked Icon 82-5604-4000
Indicator Display Assembly - White Unlocked / Red Locked 82-5605-4000
Indicator Display Assembly - White Vacant / Red Occupied 82-5606-4000
Indicator Display Assembly - White Unlocked Icon / Red Locked Icon 82-5607-4000
Indicator Display Assembly - Green Ouvert / Red Fermé 82-5684-4000
Indicator Display Assembly - Green Libre / Red Occupée 82-5685-4000
4A Indicator Spindle Cam - Thumbturn 50-8800-9328
1
4B Indicator Spindle Cam - Cylinder/No Input / Blank 50-8800-7335*
4C Indicator Spindle Cam - Cylinder Overtravel 50-8800-0378*
4D Indicator Spindle Cam - Thumbturn Overtravel 50-8800-0346
4E Indicator Spindle Cam - Coin Turn 50-8800-7339*
5 Indicator Retaining Pad 81-0749-9000 1
6 Sectional Indicator Screw Pack 85F497 FIN* 1
7 Sectional Indicator Mounting Plate 855F658 1
8 Sectional Indicator Template Kit (not shown) 50-8800-9343 1
*These parts are for 1-3/4" standard thickness doors. For other thicknesses, contact the factory.
NOTE: Reference 8800 Series parts manual for all lock body parts.
4A
4B
4C
4D
4E
6
1
2
3
4
5
6
6
7
