8800 Series Mortise Lock
Used with Sectional Trim and V Series Indicators
Installation Instructions
6
80-8800-0016-000 10/23
1-800-438-1951 • www.assaabloy.com
Copyright © 2020, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
5. Installation, continued
7. Install Cylinder
1. Thread cylinder into lock until ush with indicator escutcheon
surface (Figure 11).
• Pull key slightly out of cylinder to help thread into lock
body.
2. Tighten cylinder clamp screw with #2 Phillips screwdriver.
• Check operation and adjust if necessary.
NOTES:
• Key and cylinder must be positioned as Figure 12 shows.
• If double cylinder function is used, repeat steps 7.1 and 7.2 for
second cylinder.
• Interchangeable core cylinders require a control key to remove
and install the core. This is not provided standard. It must be
requested seperately.
9. Perform Functional Check
DO NOT FORCE if resistance is encountered during functional
check. Refer back to Rehanding Indicator (if required) section to
ensure correct handing. Rehand if necessary.
1. Insert key into cylinder (if present) and rotate:
• Ensure there is no friction against lock case or any other
obstructions.
2. Check key retracts latch:
• Key should rotate freely.
3. Throw deadbolt (if present):
• Check key retracts both deadbolt and latch
4. Test levers:
• Conrm latch and deadbolt (if installed) retract.
5. Verify indicator displays correct status when locked and
unlocked.
8. Install Outside Front
1. Tighten the two (2) lock screws completely (Figure 13).
2. Attach outside front with two (2) at head screws #8-32 x 1/4".

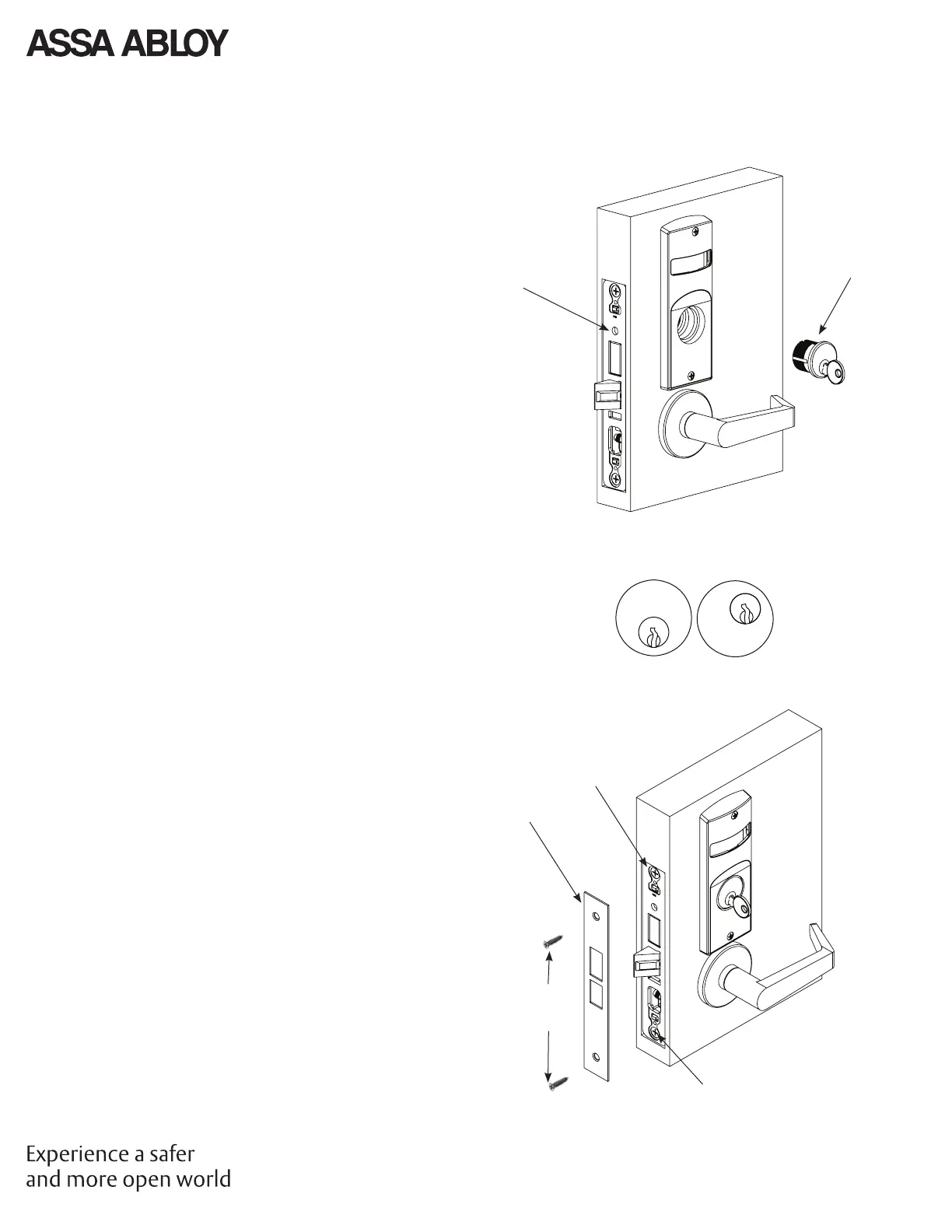

Figure 11
Figure 12
Figure 13
Cylinder
Clamp Screw
Cylinder
Key and cylinder must be rotated as shown.
Correct
Incorrect
Lock Screw
Outside Front
Lock Screw
#8-32
x 1/4"
Screws
To Next Page
