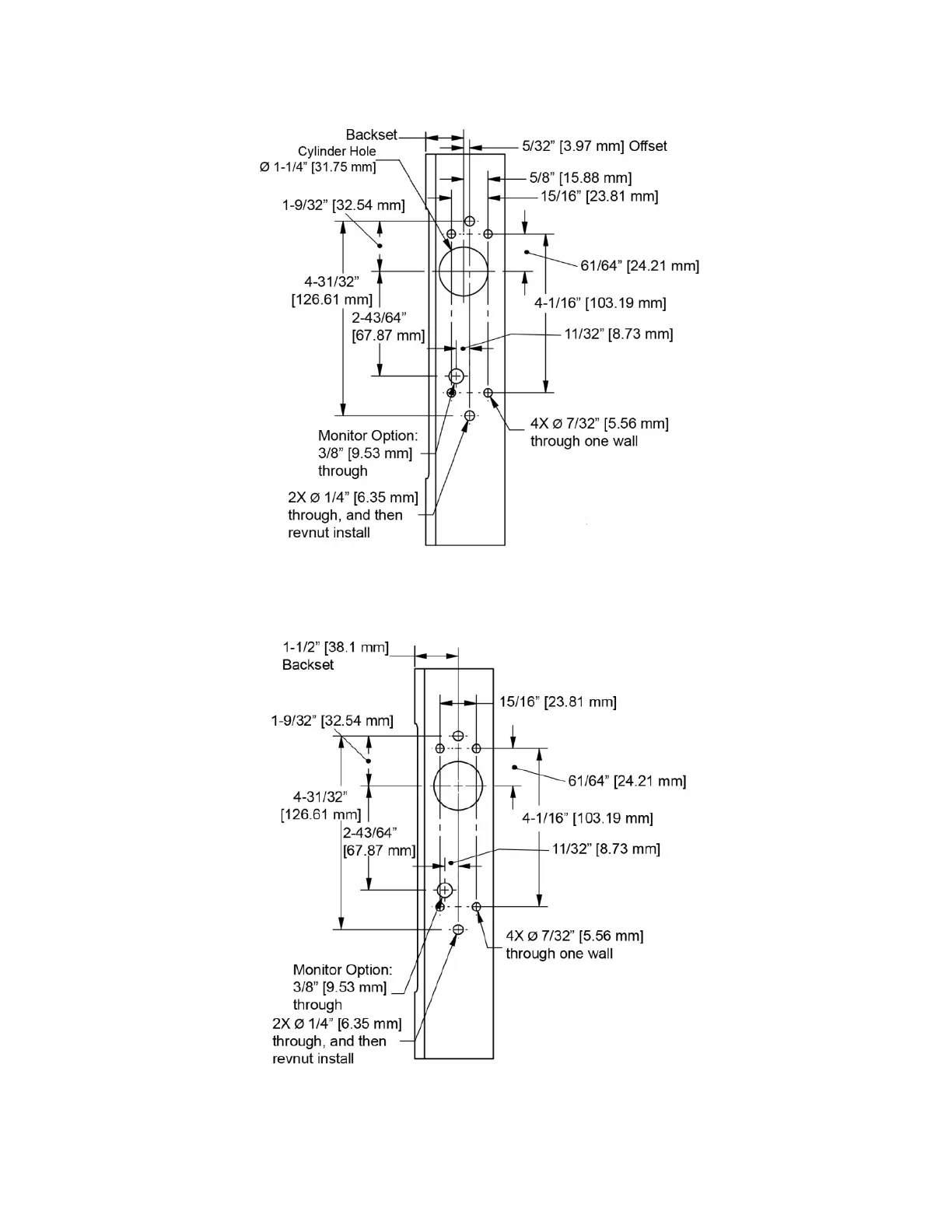

Figure 1. Rivnut Installation for 31/32” [24.61 mm] and 1-1/8” [28.58 mm] Backset, Single Lever
Figure 2. Rivnut Installation for 1-1/2” [38.1 mm] Backset, Single Lever
Inches [Millimeters]
