Assa Abloy ADAMS RITE 4300 Series User Manual

8 80-0180-418, Rev D

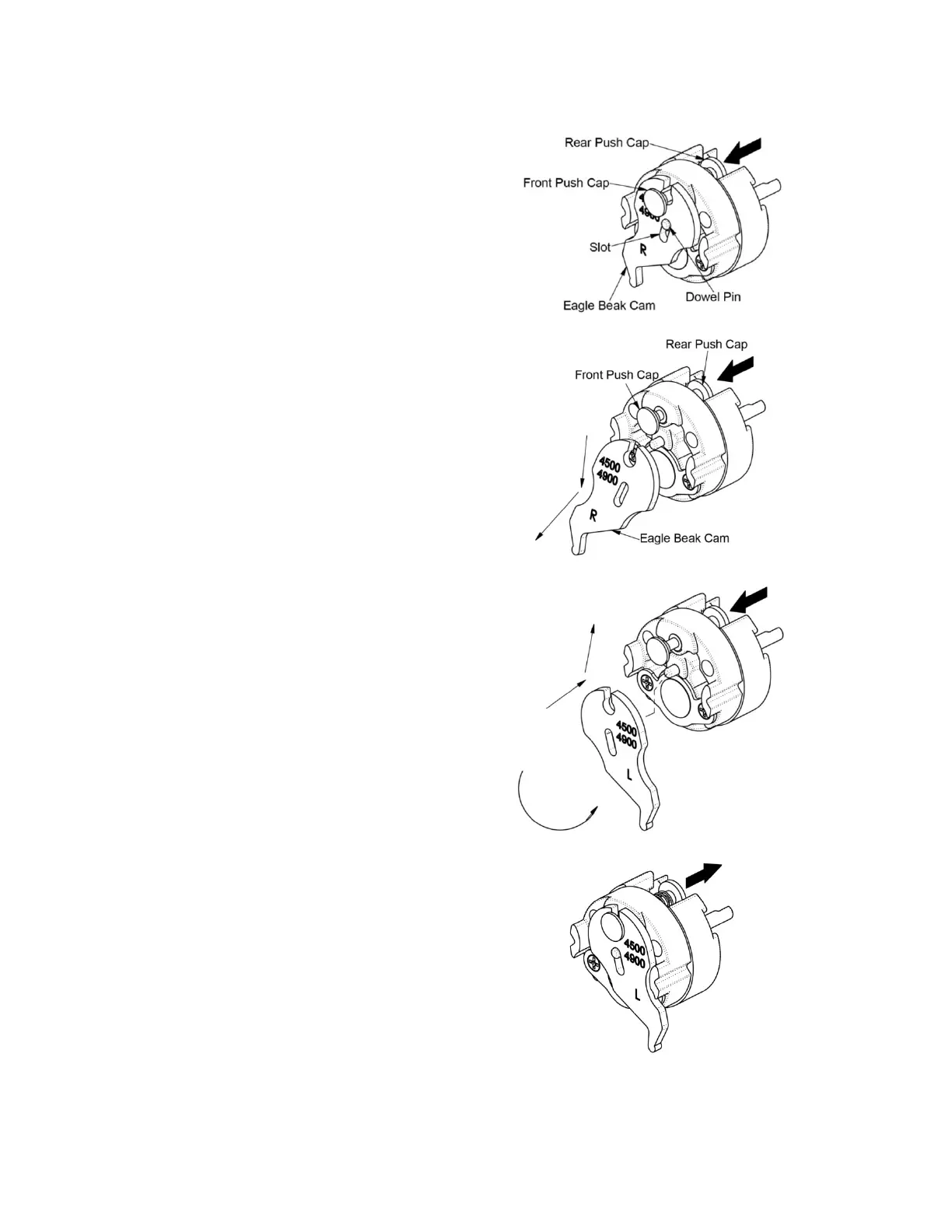

1. DEPRESS the rear push cap.
2. While holding the rear push cap, SLIDE
the eagle beak cam down and out of
the front push cap and the dowel pin.
3. FLIP the eagle beak cam to the other
side, and SLIDE it in the dowel pin and
up to the front push cap.
4. Release the rear push cap to complete
the changing hand operation.
© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
