Assa Abloy Aperio AH30 Installation Guide

12

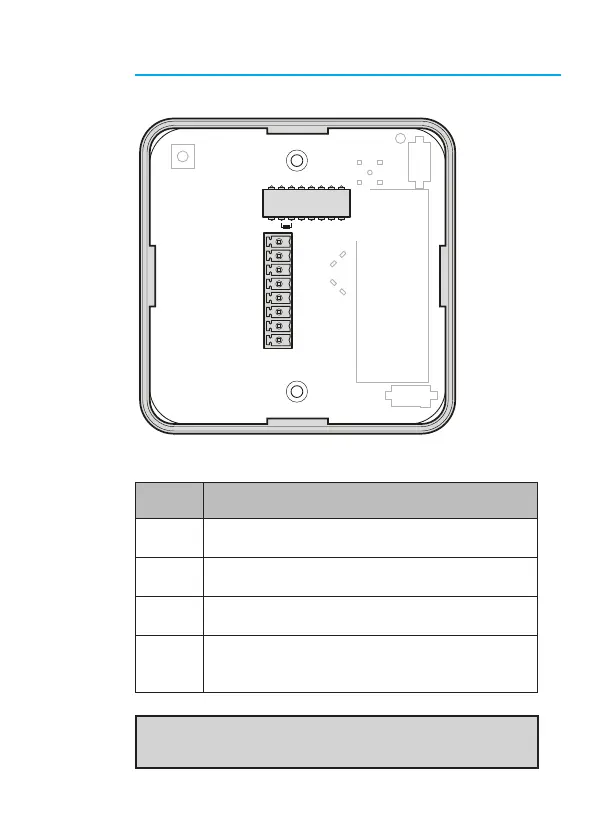

AH30 (J101) - Connections
AH30 (J101) Connectors
Hub
ConneCtor
DesCription
A RS485 Data A.
B RS485 Data B.
GND
GND = Signal ground. Should be connected to EAC system
GND and power supply GND.
8-24 VDC
Power supply input, 8-24 VDC, 2 W (AH20 Advanced)
alternatively 0.8 W (AH20 Standard and AH30).
Note: The installation must comply with national wiring regulations.
A
A0 A1 A2 A3 A4
EXT
INT
TERM
B
D1
D0
RED
GREEN
GND
8-24VDC
J101
S700
S100
12345678
A0 A1 A2 A3 A4
EXT
INT
TERM
S700
ON
OFF12345678
