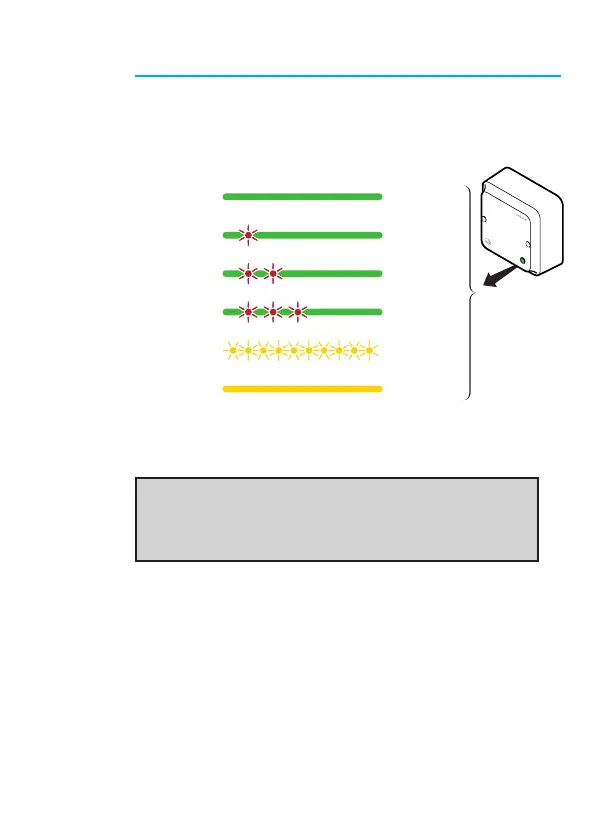

The Communication Hub has a single LED that supports an
optical scheme with red, green and yellow. The indication
scheme is described by the two figures below:
AH20/AH30 - Communication Hub LED Indication
GreenOnline
Green + One
Red Flash
Aperio
®
Lock
Offline
Green + Two
Red Flashes
EAC Offline
Green + Three
Red Flashes
Aperio
®
Lock and
EAC Offline
Yellow + Off,
Fast Flash
UHF
Communication
YellowPairing Active
Note: With the software tool Aperio
®
Programming Application
and a USB radio dongle, further system installation parameters
can be set.
