Prepping the Cabinet/Drawer Face (Double Door)
3. Align offset line on template to the edge of the stationary door and align center
line with the established center line above. Remove backing and apply template to
cabinet face. Continue with Step 6 in previous section.

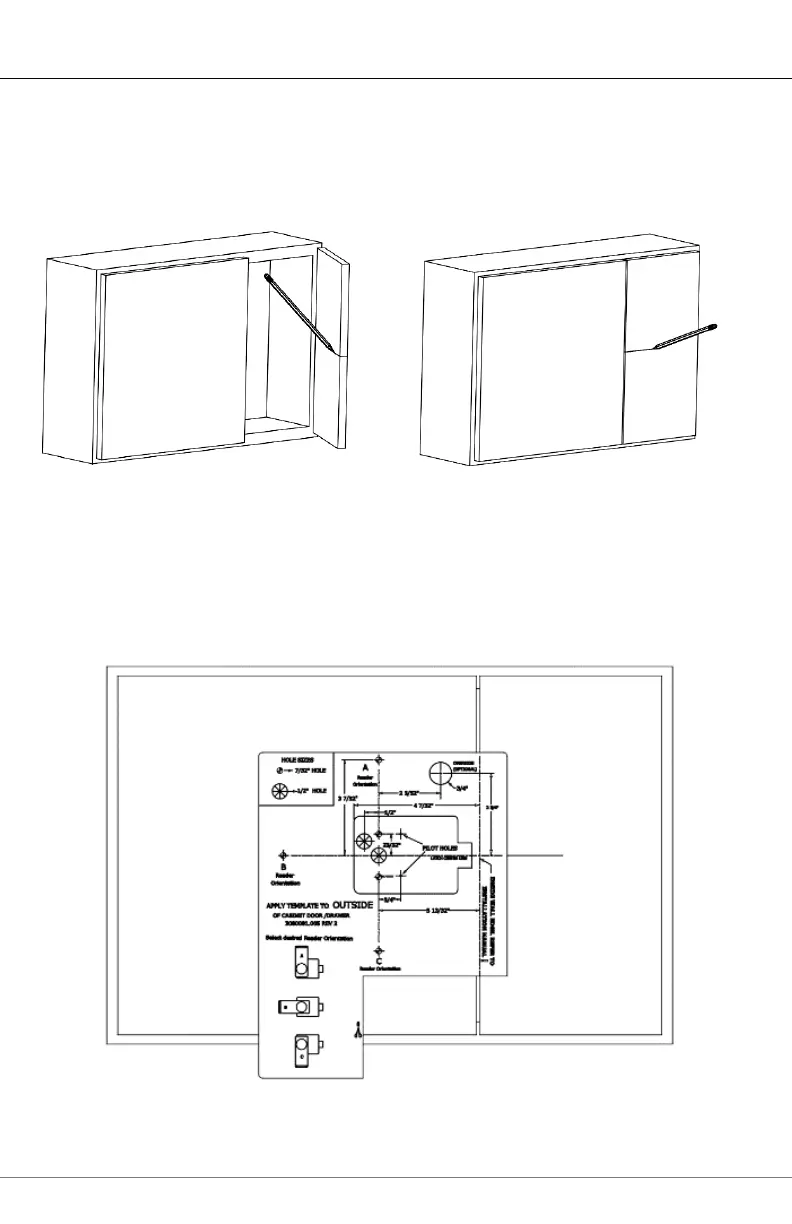

1. Establish center line on inside
of stationary door.
2. Continue center line onto
outside face of cabinet.
