Page 5 of 16 For more information visit website assaabloyesh.com P/N: 3080006.016 Rev1

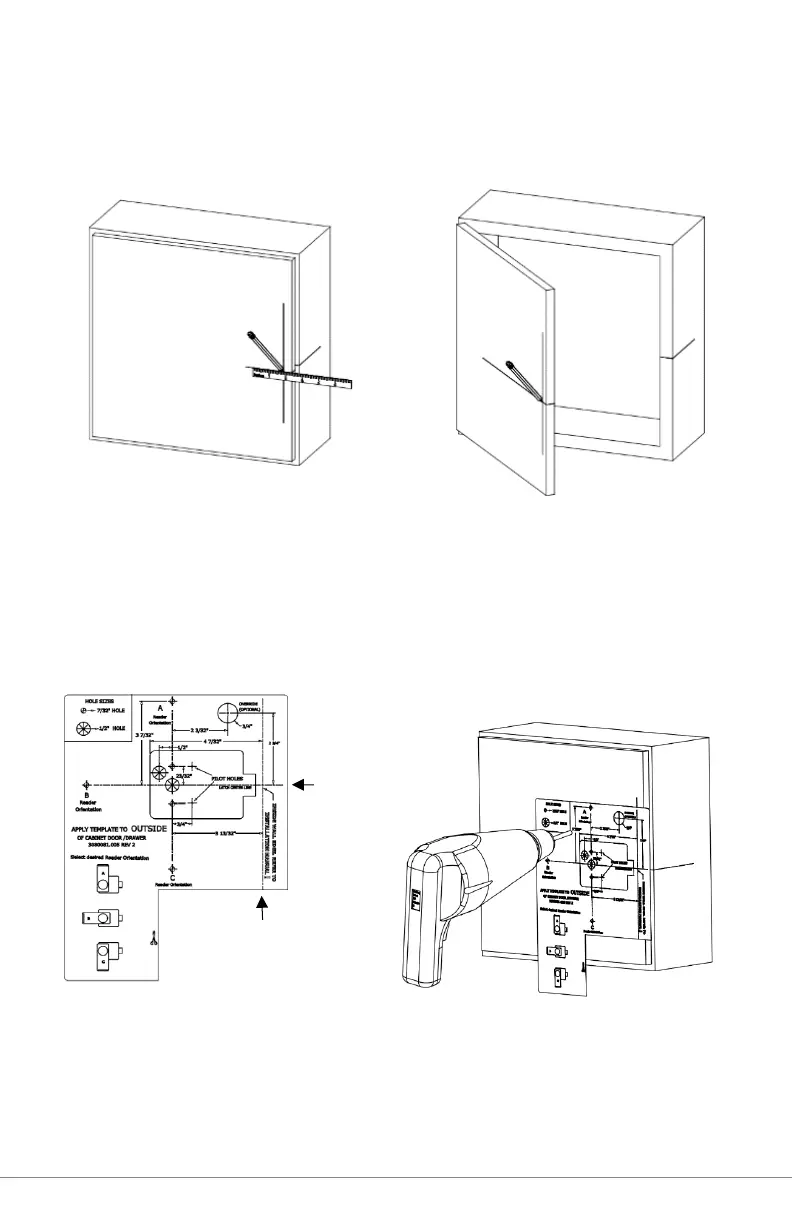

3. Measure cabinet wall thickness and mark
offset line on face of cabinet/drawer. The
offset line should match with the interior
edge of the cabinet wall.
4. Continue centerline to face of
cabinet/drawer
5. Align template to offset line and
centerline. Remove backing and apply
template onto cabinet/drawer face.
6. Use punch to mark drilling
locations then drill mounting holes. If
using mechanical key override, drill
key override hole as well.
