Assa Abloy effeff 1383 - Permanent Release; Locking; Danger Alarm

35
gn
gn
gn
gn

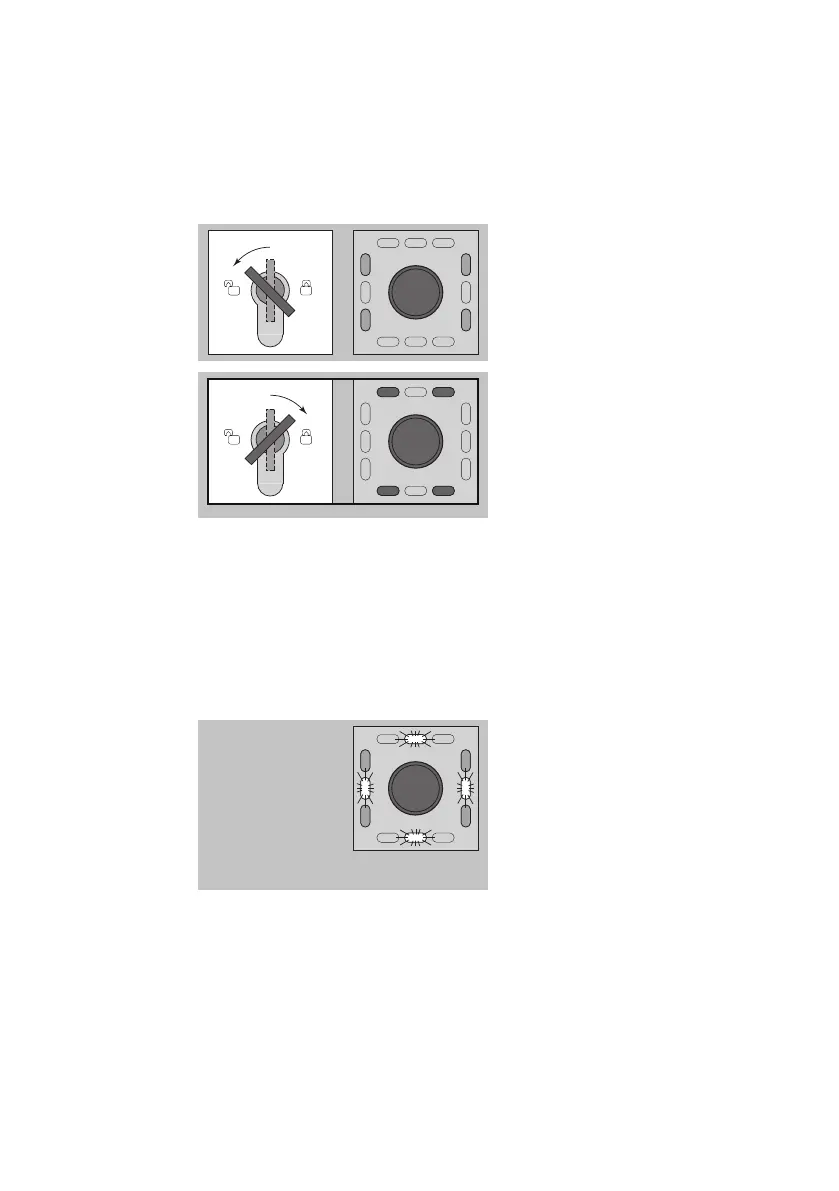

The door can be released.
 Turn the key to the left.
 The four green LEDs light up.
 The door is released.
rdrd
rd rd
The door can be locked.
 Close door if required.
 Turn the key to the right.
 The four red LEDs light up.
 The door is locked.
Pre-conditions for locking:
 The door is closed.
 No alarm signal is present.
The danger alarm is triggered when:
• By pressing the emergency button
• When activated by a fire alarm system
gn
ye
gn
ye
gn
ye
gn
ye
 The door is released
immediately.
 An audible alarm signal is
emitted.
 The green LEDs light up.
 The yellow LEDs and the
EMERGENCY-OPEN switch flash.
Permanent
release
Locking
Danger alarm
