Assa Abloy effeff 1383 - Change TSB Address

50
The adjustment of the TSB address takes place in 6 steps:
Note (1385 only)
The link to a connected TSB controller must be disconnected.
Additional information
The factory setting for the participant address is 1 for escape door modu-
le 1383E1N.
A different participant address is only necessary in special cases. This can
be adjusted manually with the key switch. The procedure is described
below.
1. Determine the desired LED pattern of the TSB address.
2. Switch on configuration mode.
3. Switch on Menu 9 „Change TSB address“.
4. Adjust LEDs according to the LED pattern (=address).
5. Save LED pattern (=address).
6. Switch off configuration mode.
32
16 8
1
2
4
64

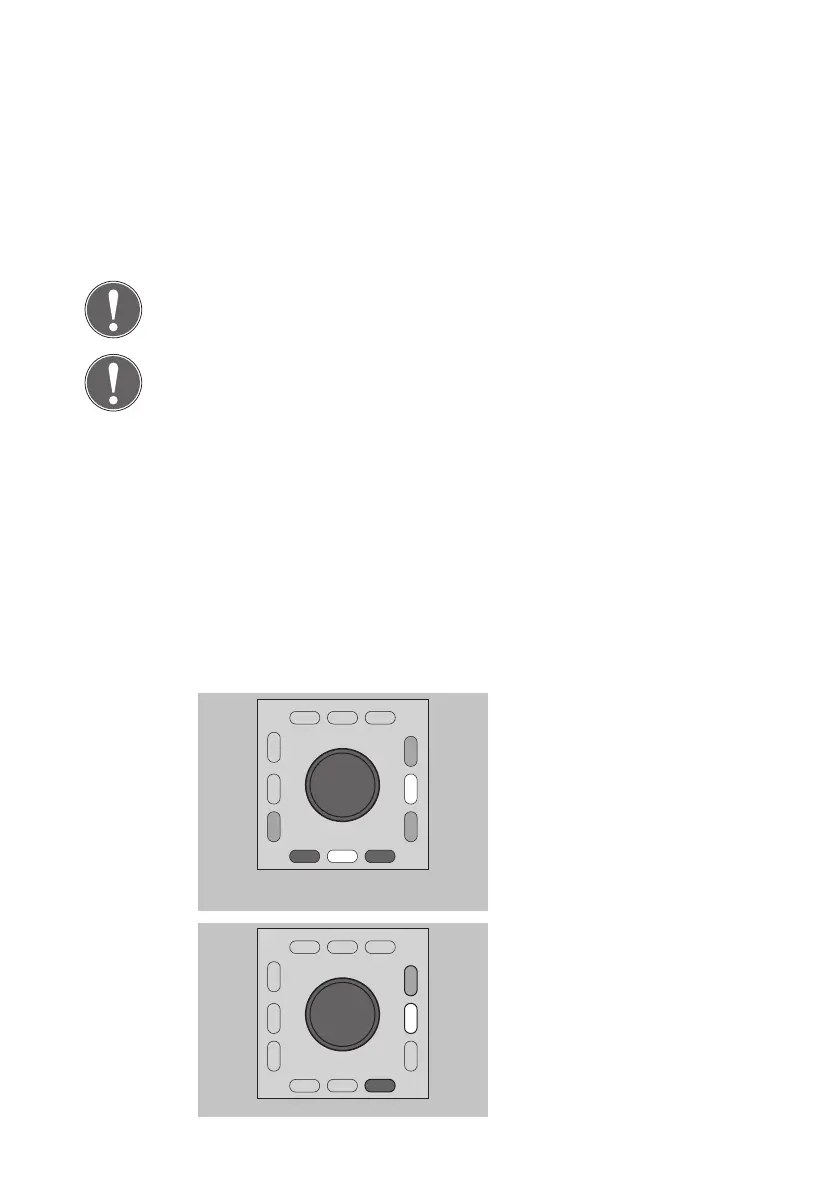

Individual LEDs are assigned
binary numbers. A cumulative
value between 0 and 255, which
corresponds to the TSB address,
is indicated depending on which
LEDs light up.
If no LED lights up, then the total
is 0. That corresponds to the TSB
address 0.
32
16
4
64
8
1
2
For example,
The LEDs light up with the binary
values
1 + 2 +8.
 This results in a cumulative
value of 11.
That means it is set to Address
11.
Change TSB
address
