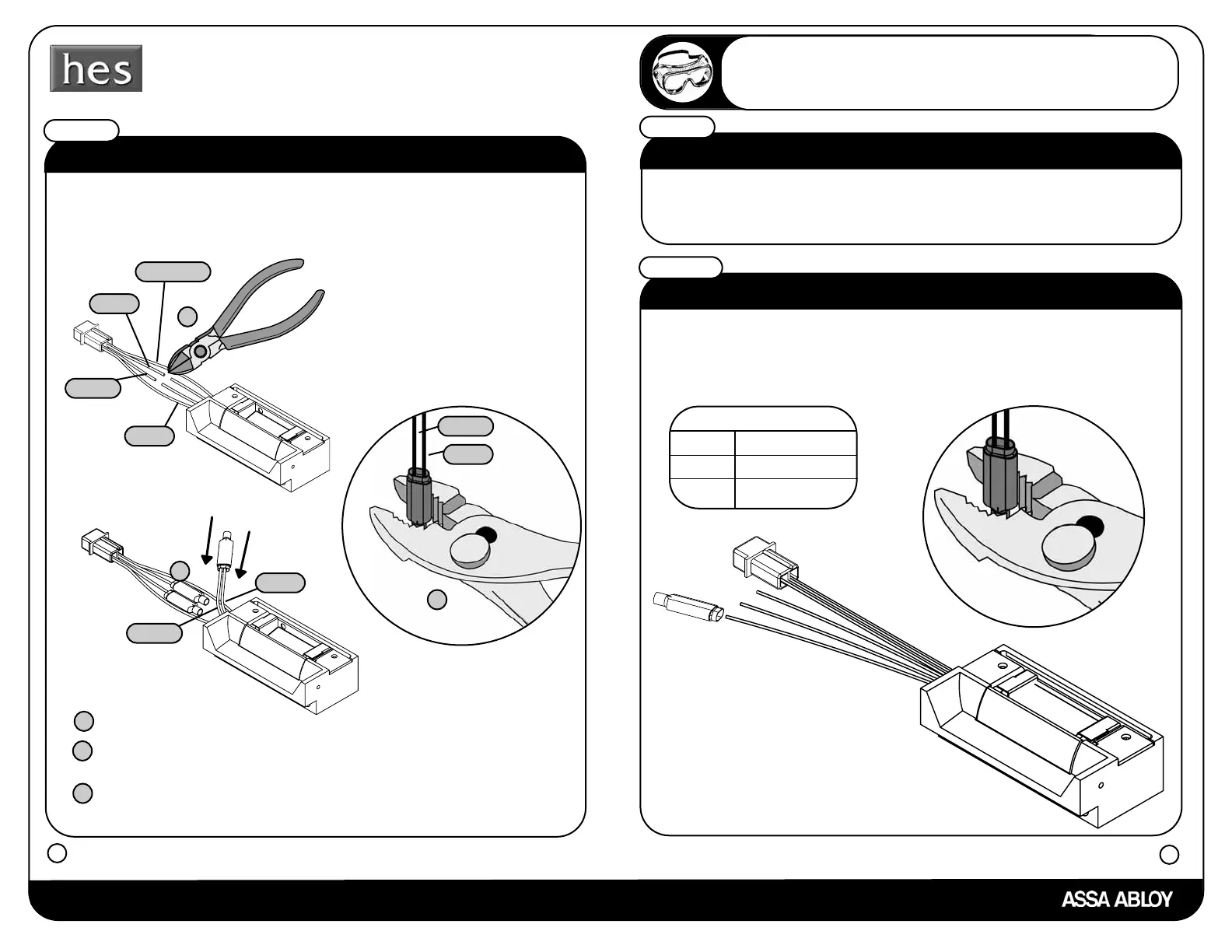

5
If the answer is 12 - 16* Volt continue to step 6.
If the answer is 24 Volt please follow the instructions below.
Step 5
Cut the violet and black wires.
a
Insert violet and black wires coming from the strike into one
blue wire connector, crimp with pliers.
b
crimp one blue wire connector on each black and violet wire coming
from the connector to prevent a short circuit.
c
black
violet
black
violet
red/green
red
a
c
b
violet
black
*For 16 Volt AC/DC operations,
maintain the solenoid wiring
configured for 12 - 16 V. Be advised
that with a 16 Volt source, the Model
5000 is capable of a 10% Intermittent
Duty Cycle (e.g. “On” for 2 seconds
followed by “Off” for 20 seconds)
with an “On” time not to exceed
2 minutes continuous.
16 Volt AC/DC Capable
(10% Intermittent Duty Cycle)
What does the strike wiring configuration need to be?
6
Installer Hint
When adjusting the screws for field selectability, veteran
installers suggest adding a drop of Loctite to the screws before
tightening them into their final position for added durability.
Do you use Standard or LBM?
If the answer is standard continue to step 7.
If the answer is LBM follow the instructions below.
What is LBM?
Step 6
Step 6a
LBM stands for Latch Bolt Monitoring. The LBM option detects that
the Latch is captured in the Strike.
white
orange
green
common
normally open
normally closed
wiring diagram
LBM
®
