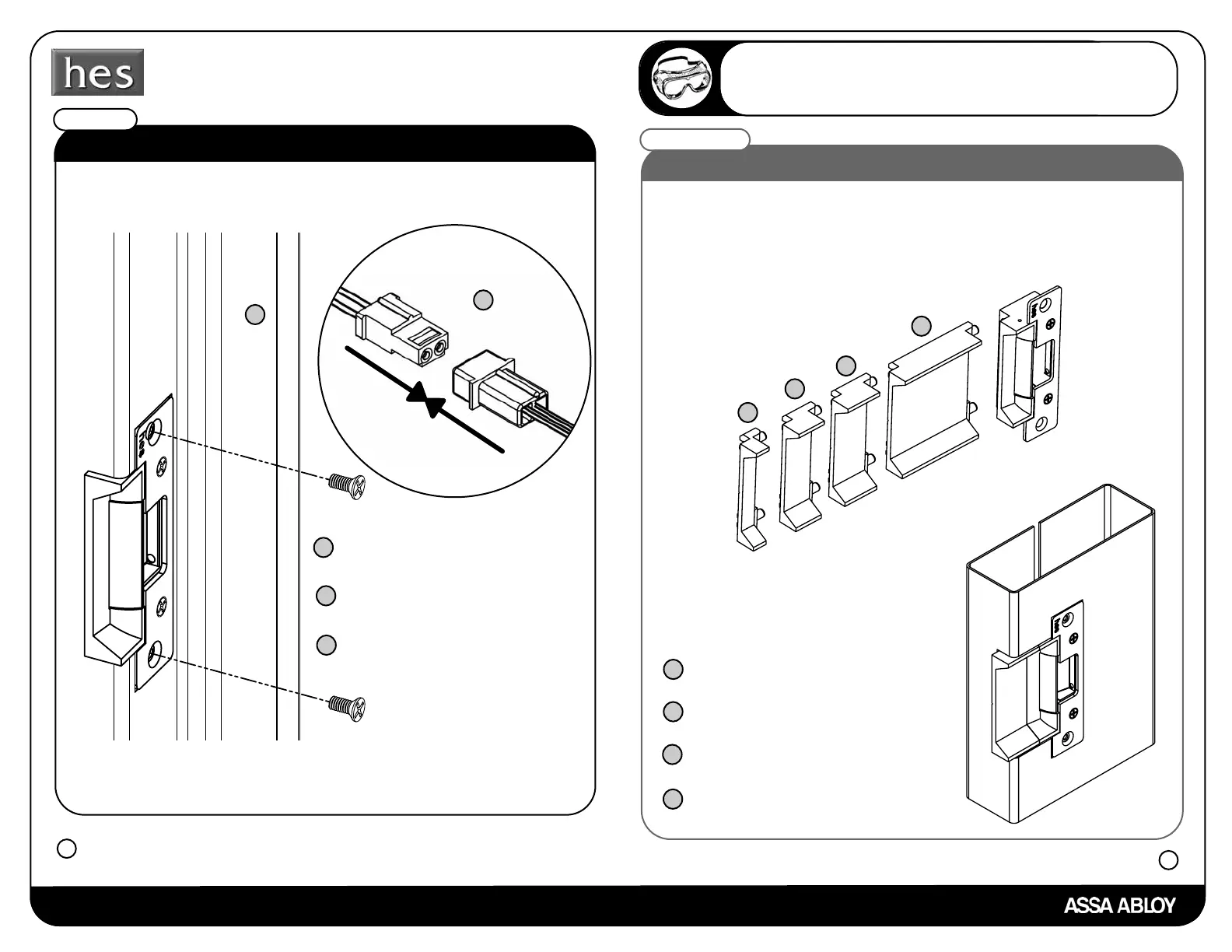

What are the final steps?
Step 10
b
a
Connect the electric strike to the pigtail.
a
Insert strike into frame.
b
Tighten both mounting screws securely.
c
10
Installer Hint
When using a combination of lip extensions always stack the smallest size
to the outside.
Do you require a stackable lip extension?
Accessory
Stackable lip extensions are press fit and can easily be
combined to meet the needs of any jamb width, while retaining
the security and finish appearance of the electric strike. To order
stackable lip extensions please contact our customer support
department at 800.626.7590
1/2” - Part Number: 5104-1/2
a
a
b
c
d
1” - Part Number: 5104-1
b
1-1/4” - Part Number: 5104-1-1/4
c
3” - Part Number: 5104-3
d
