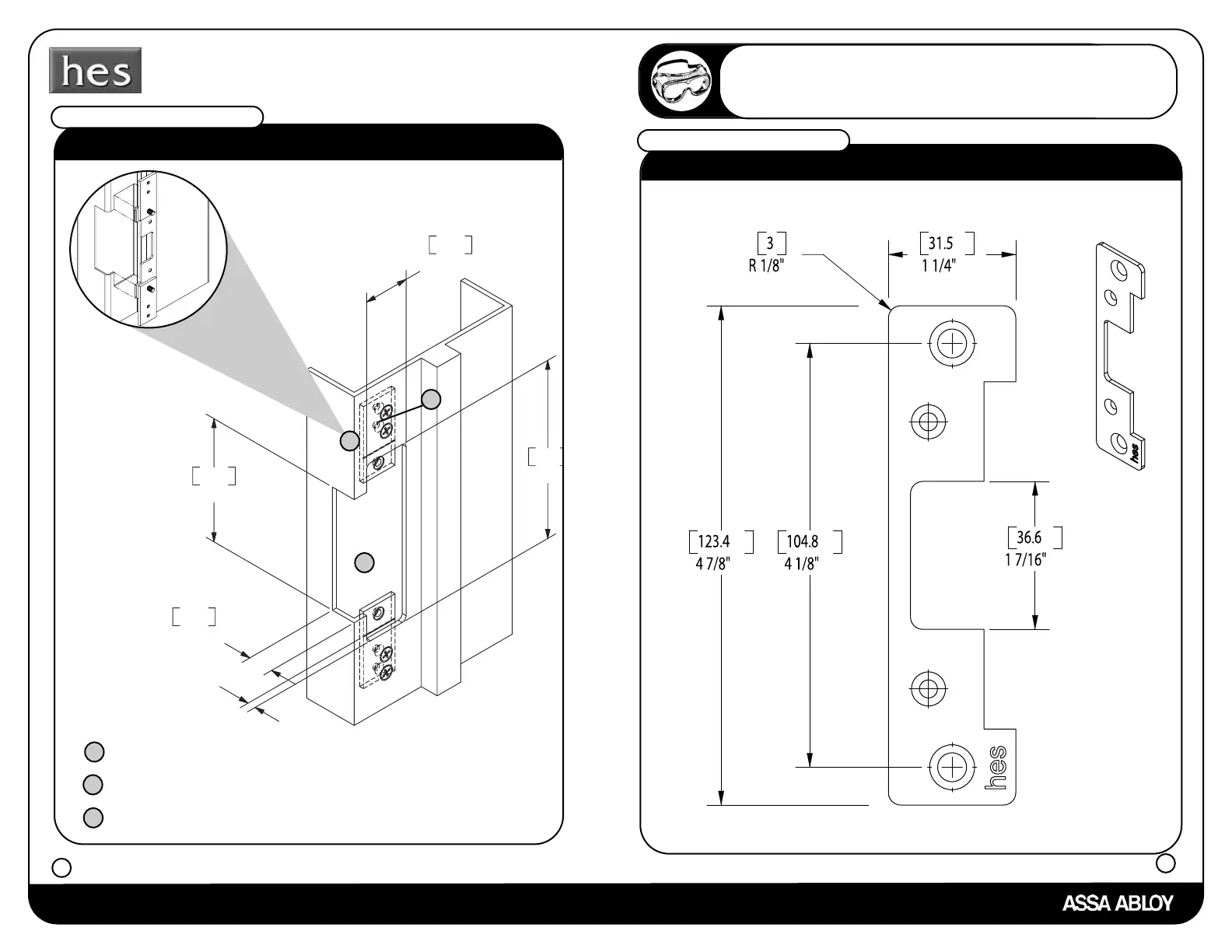

What should the cutout be?
a
Cut frame according to the dimensions in the drawing.
a
Install the mounting tabs to the frame, but do not fully tighten mounting
tab screws.*
b
After you install the strike, securely tighten the mounting tab screws.
c
b
501A faceplate option
c
*Note: To make it easier to mark the locations for the
mounting tabs, attach the mounting tabs to the faceplate,
turn the faceplate backwards and insert it into the cutout.
Mark the hole locations using the template. Remove the
assembly and drill holes.
[mm]
Inches
16
Installer Hint
It is often beneficial to first put masking tape on the door frame where
you will be installing the electric strike. The masking tape protects the
frame surface from being scratched during the installation process.
What are the faceplate dimensions?
501A faceplate option
[mm]
Inches
