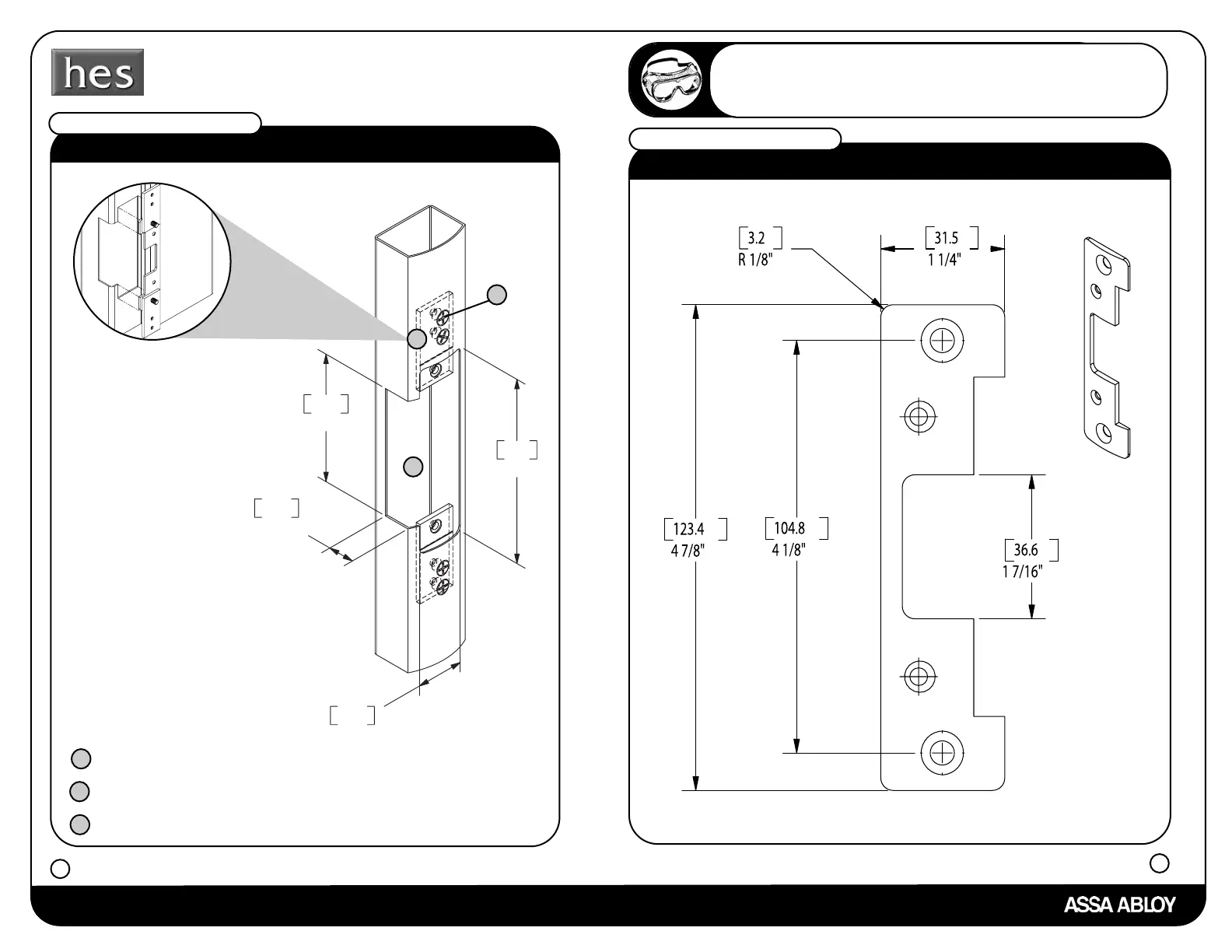

What should the cutout be?
Cut frame according to the dimensions in the drawing.
beveled aluminum door
a
Install the mounting tabs to the frame, but do not fully tighten mounting
tab screws.*
b
After you install the strike, securely tighten the mounting tab screws.
c
a
b
c
501B faceplate option
*Note: To make it easier to mark the
locations for the mounting tabs, attach
the mounting tabs to the faceplate, turn
the faceplate backwards and insert it
into the cutout. Mark the hole locations
using the template. Remove the
assembly and drill holes.
[mm]
Inches
18
Installer Hint
Veteran installers suggest removing all dust and debris before final
installation of the electric strike.
What are the faceplate dimensions?
501B faceplate option
[mm]
Inches
