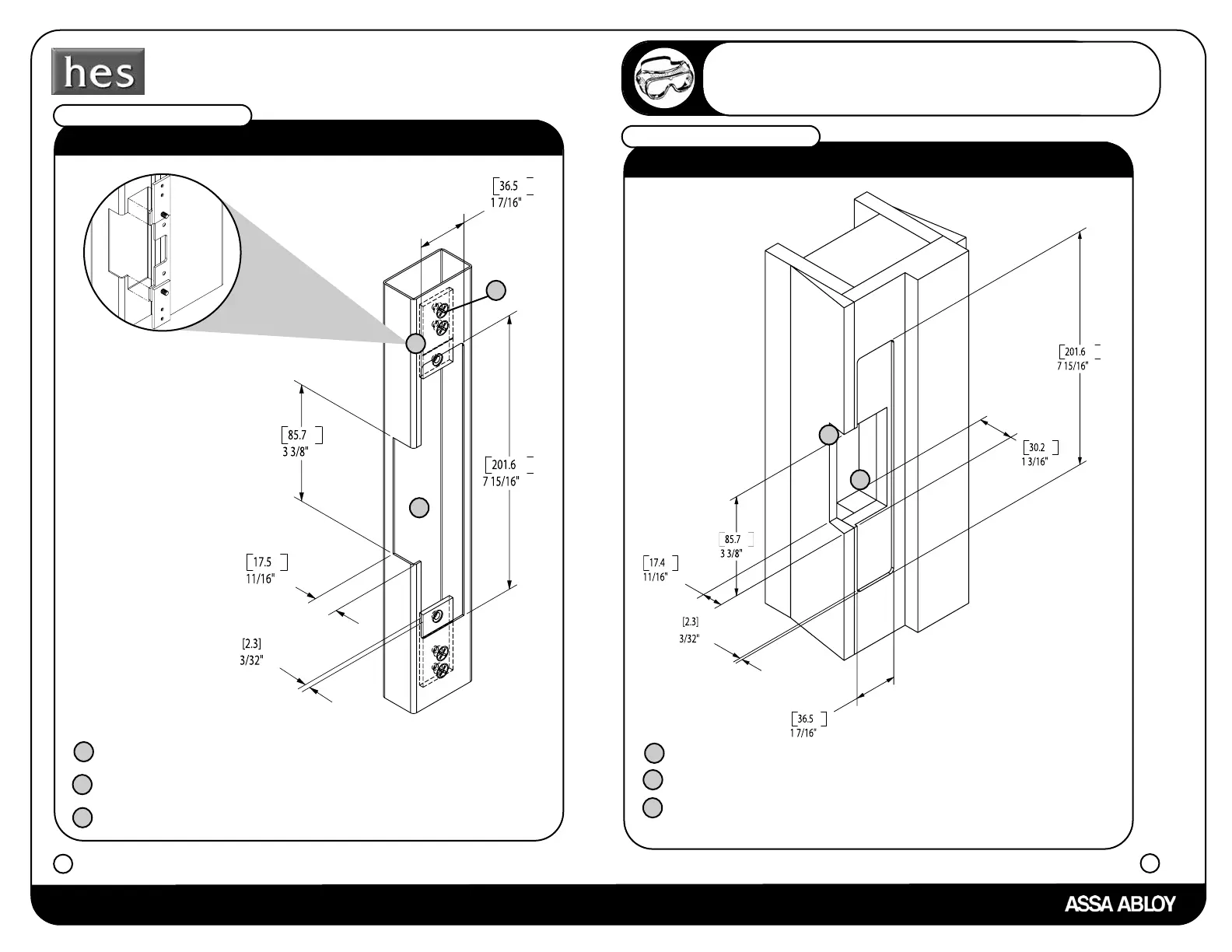

What should the cutout be?
Cut frame according to the dimensions in the drawing.
a
Install the mounting tabs to the frame, but do not fully tighten mounting
tab screws.*
b
After you install the strike, securely tighten the mounting tab screws.
c
a
b
c
502 faceplate option
*Note: To make it easier to mark the
locations for the mounting tabs,
attach the mounting tabs to the f
aceplate, turn the faceplate back-
wards and insert it into the cutout.
Mark the hole locations using the
template. Remove the assembly and
drill holes.
[mm]
Inches
20
Installer Hint
To obtain the best results when preparing a wood frame for an
electric strike installation; cut a 1/4" area around the inside of the template
dimensions first with a wood chisel or router for a clean finished edge.
What should the cutout be?
Cut frame according to the dimensions in the drawing.
a
Chisel out the recess dimensions within the frame.
b
a
b
502 faceplate option
For wood applications pre-drill pilot hole for mounting points
with a #30 drill bit.
c
[mm]
Inches
