11

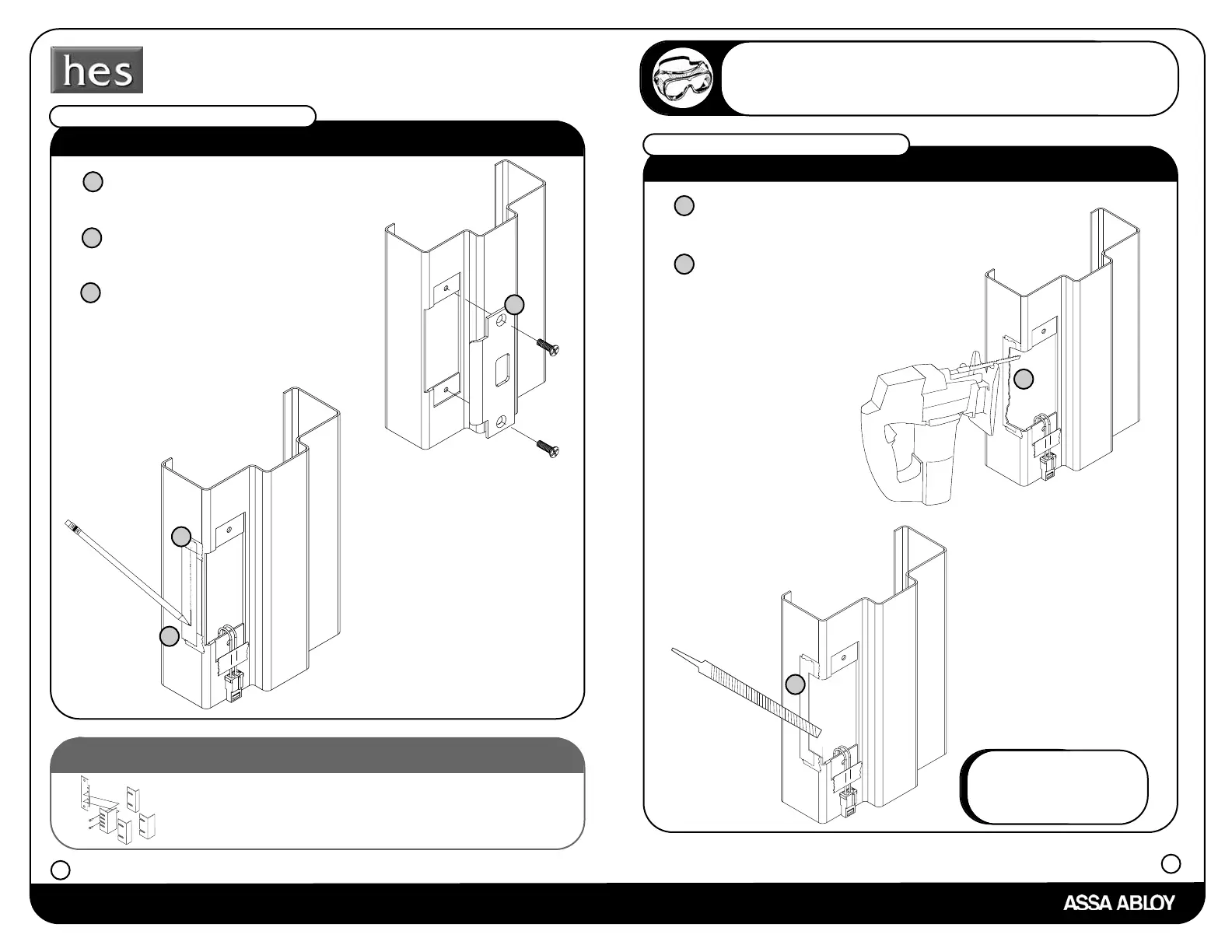

Frame preparation example*
Want to simplify the process?
c
b
Mask off the section of the frame
to be cut by using masking tape.
Find the cutout dimensions on
pages 13-26. Draw your guide
lines on the masking tape to
show where you will make the
needed cuts.
a
c
b
Remove the exisiting strike plate from
the frame by removing the screws.
a
*Note: Frame example with ANSI 4 7/8” x 1 1/4” strike preparation
HES offers a universal Metal Template Kit to simplify
the installation procedure. Order the model 154-MTK
by calling customer support at 800.626.7590.
12
Installer Hint
ALWAYS use eye and ear protection.
Veteran Installers recommend cutting inside the lines and
finishing the cutout with a metal file.
e
File the frame to remove rough edges
and ensure the strike fits properly.
d
e
Using your guide lines cut the frame to
the dimensions you have measured.
d
Frame preparation example*
*Note: Frame example with ANSI 4 7/8” x 1 1/4” strike preparation
return to page 4 and
continue with Step 4
