Associated Electrics RC10 B44.2 - Slipper Build

10

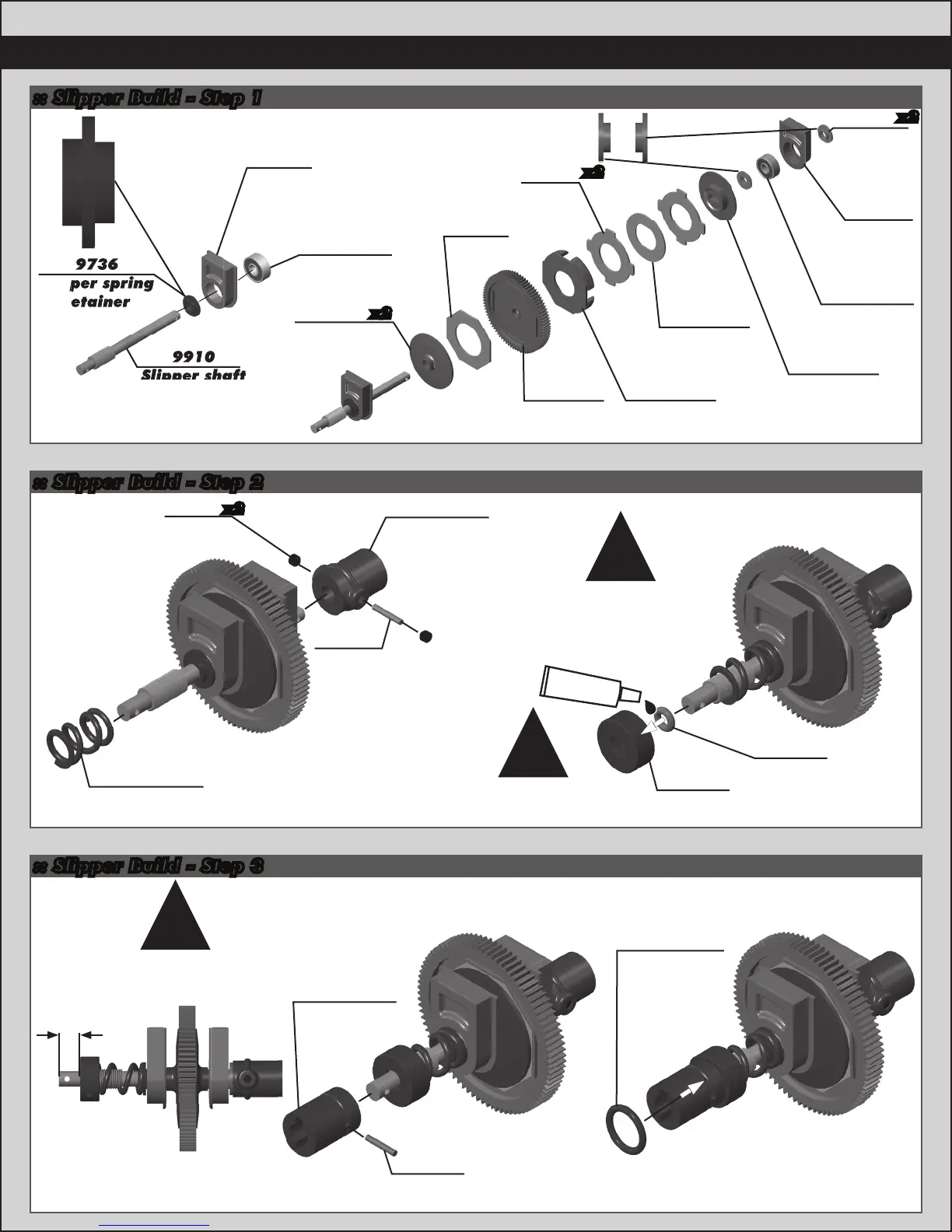

:: Slipper Build - Step 1
:: Slipper Build - Step 2
:: Slipper Build - Step 3
x2
x2
x2
Check slipper
after running!
Adjust as needed.
!
1654
Solid pin
9742
Slipper drive
cup
9742
Slipper drive
cup o-ring
1654
Solid
pin
9711
Center
bearing
insert
7485
FT V2
slipper hubs
91177
VTS
slipper
pads
9742
4-40
setscrew
Side view
1 flange
9741
Slipper nut
o-ring
9740
Slipper
nut
7486
FT V2
slipper spring
9742
Slipper drive
cup
9910
Slipper shaft
9736
Slipper spring
retainer
9711
Center
bearing
insert
9910
Slipper
drive cup
spacer
7935
3/16x1/2
bearing
9603
Slipper
pad
9651
81T 48P
spur gear
91179
VTS slipper
hub, outer
91176
VTS slipper
housing
91178
VTS slipper
plate
7935
3/16x1/2
bearing
x2
2mm
Side view
2 flanges
9910
Slipper shaft
9736
Slipper spring
retainer
#6588
black grease
Rub black grease
on o-ring before
install!
Insert #9741 Slipper nut
o-ring all the way into the
#9740 Slipper nut before
installing the slipper nut
onto the slipper shaft!
!
!
