Associated Electrics RC10 B44.2 - Rear Anti-Roll Bar Build

16

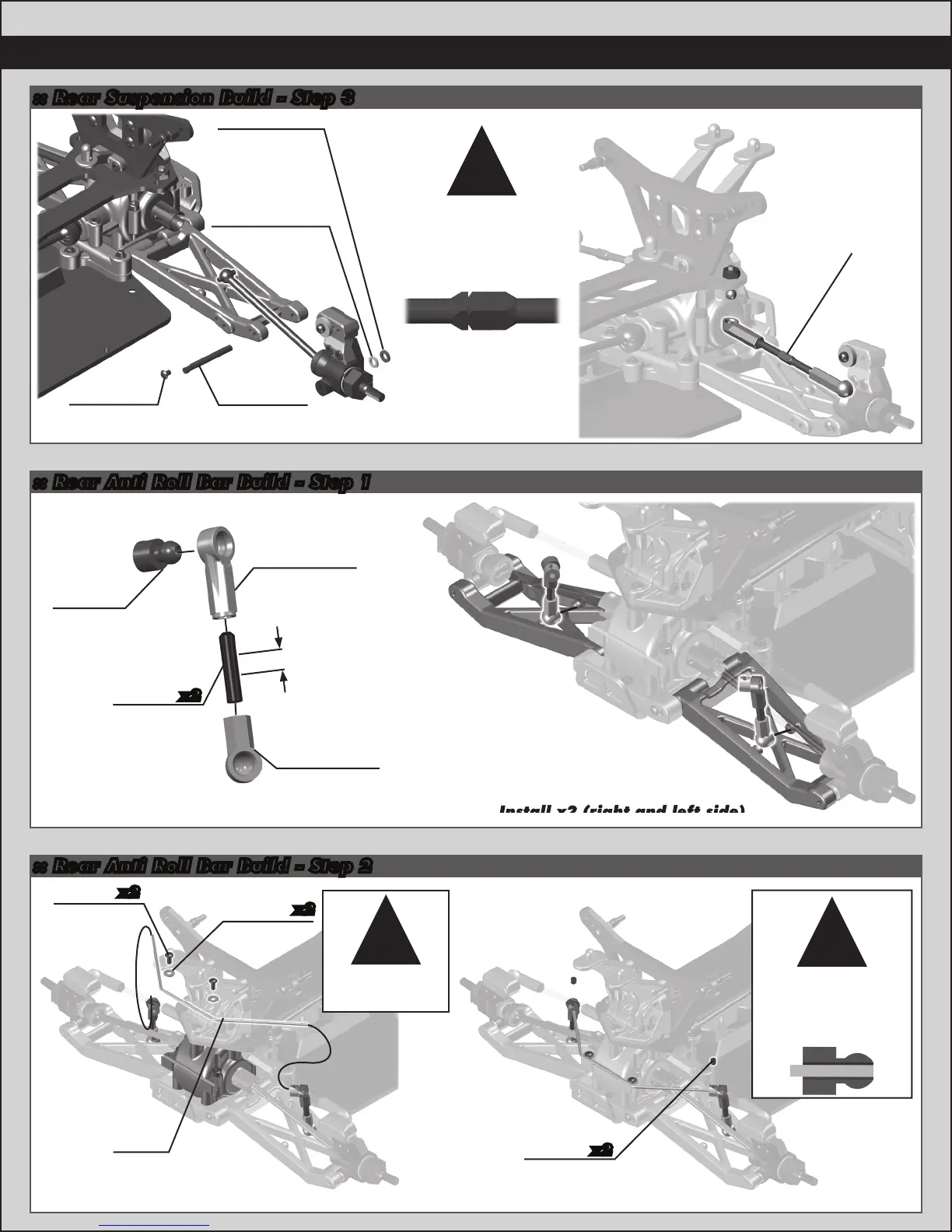

:: Rear Suspension Build - Step 3
:: Rear Anti Roll Bar Build - Step 1
:: Rear Anti Roll Bar Build - Step 2
31286
Aluminum
ballstud
washer, 1mm
(blue)
9630
.030 ballstud
washer
9645
2-56x1/8
bhcs
9716
Hinge pin
set
8830
Anti roll
bar pivots
9170
4-40x1/2
set screw
x2
Build x2
8828
Anti roll
bar cups
Rear
camber
link
8828
Ball cup,
short
1mm
Install x2 (right and left side)
Install x2 (right and left side)
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
!
Install x2 (right and left side)
6951
4-40x1/8
setscrew
x2
Optional black
anti-roll bar also
included!
!
Install anti-roll bar
into #8830 anti-
roll bar pivots until
the bar is flush with
the end of the pivot!
!
4334
2-56x5/16
bhcs
89278
Washer,
2.5mm
9780
0.55 silver
anti-roll bar
x2
x2
