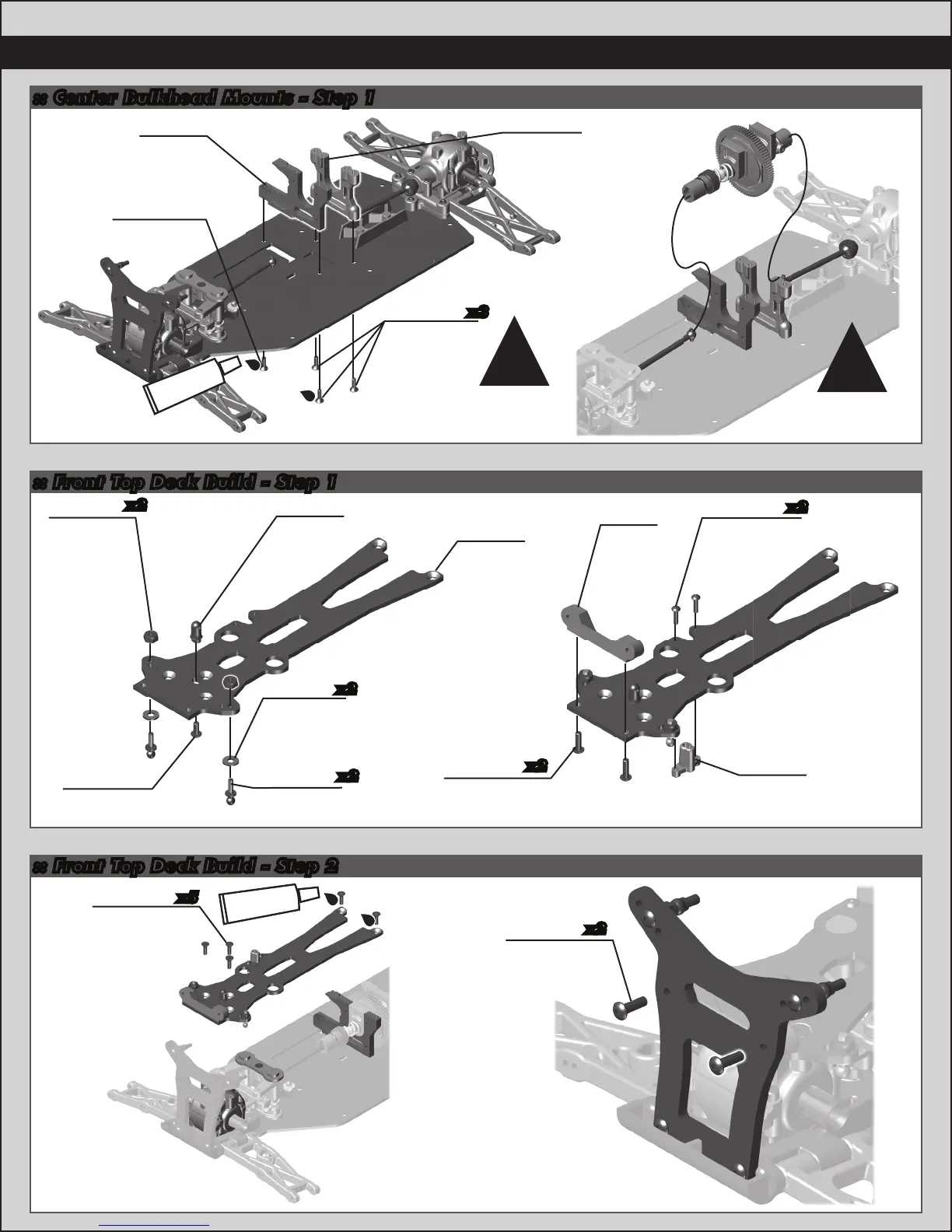

Associated Electrics RC10 B44.2 - Center Bulkhead Mounts; Front Top Deck Build

11
:: Center Bulkhead Mounts - Step 1
:: Front Top Deck Build - Step 1
:: Front Top Deck Build - Step 2
Key CVA bones in
the slipper
outdrives!
Set remaining
motor mount
pieces aside!
!
!
9913
Antenna
mount
9714
Shock
tower
mount
9901
Top deck,
front
9719
Body
mount
9709
Center
bulkhead
9801
FT cam
motor
mount
4334
2-56x5/16
bhcs
6917
4-40x3/8
bhcs
x2
x2
6937
4-40 blue
aluminum
locknut
6936
Washers,
aluminum
#4
6292
4-40x3/8
fhcs
6291
4-40x1/4
fhcs
6277
Ballstud, .30
silver, long
x2
x2
x3
x2
6288
4-40x1/4
bhcs
Slipper
assembly
Install
#1596
thread lock
6292
4-40x3/8
fhcs
x5
#1596
thread lock
6917
4-40x3/8
bhcs
x2
