Associated Electrics RC10 B44.2 - Rear Gearbox Build

6

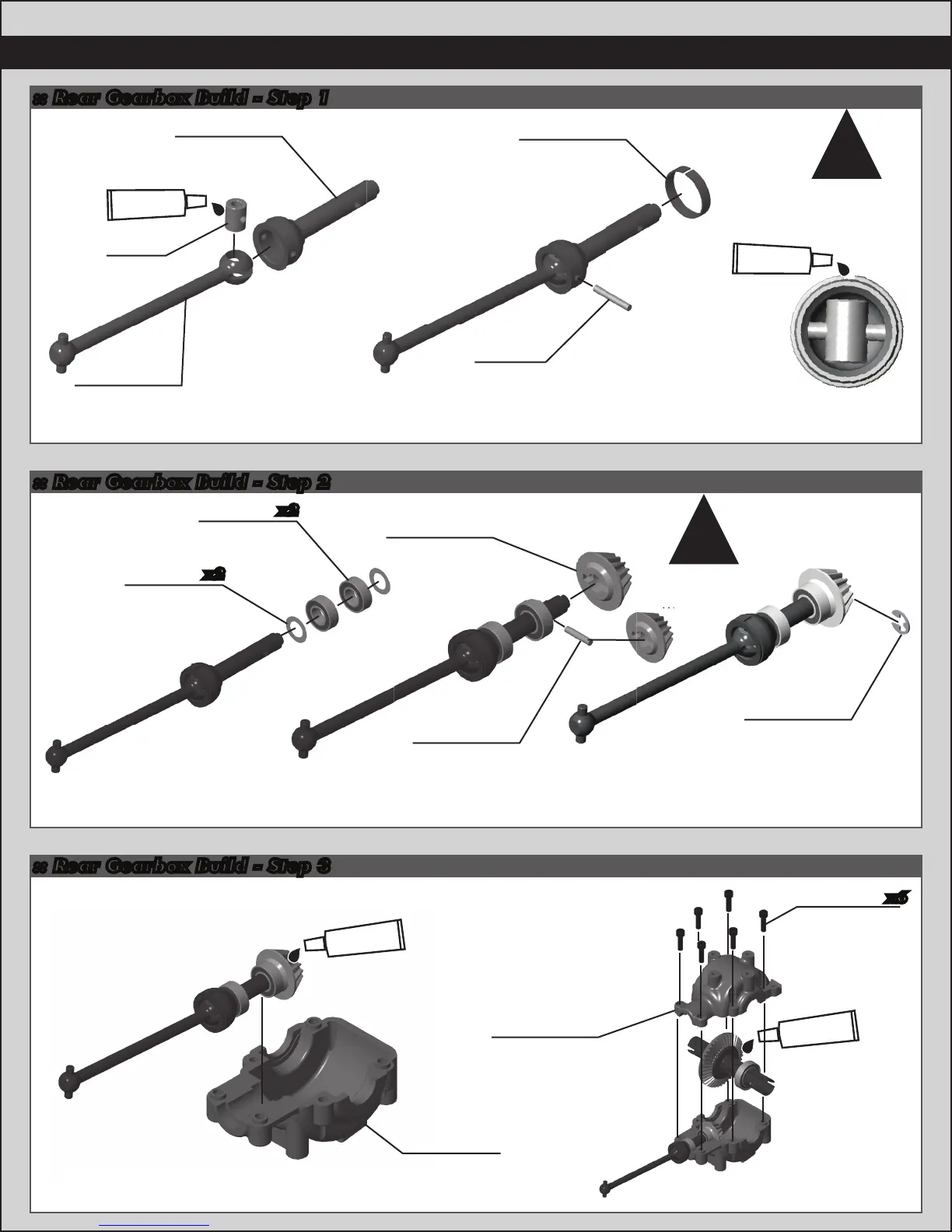

:: Rear Gearbox Build - Step 1
:: Rear Gearbox Build - Step 2
:: Rear Gearbox Build - Step 3
3977
3/16x3/8
bearing
3911
Shim
x2
x2
6860
FT 4-40x3/8
shcs
aluminum,
blue
#6591
diff lube
#6591
diff lube
#6588
black grease
x6
9733
Upper
transmission
case
6299
E-clip, 1/8
3919
Input shaft
pin
3903
Drive pinion
7996
CVA pin
retainer
7381
CVA pin
9761
CVA input
shaft
7381
CVA
coupler
9911
CVA bone
center, rear
9733
Lower
transmission
case
Align the gap in
the pin retainer
to be opposite of
the CVA pin.
!
#1597
ca glue
Align the slot in
the pinion gear
with the pin!
!
with the pin!
Racer’s Tip:
Try using only 1 drop of CA glue
to secure the pin retainer!
1 drop!
1 drop!
1 drop!
