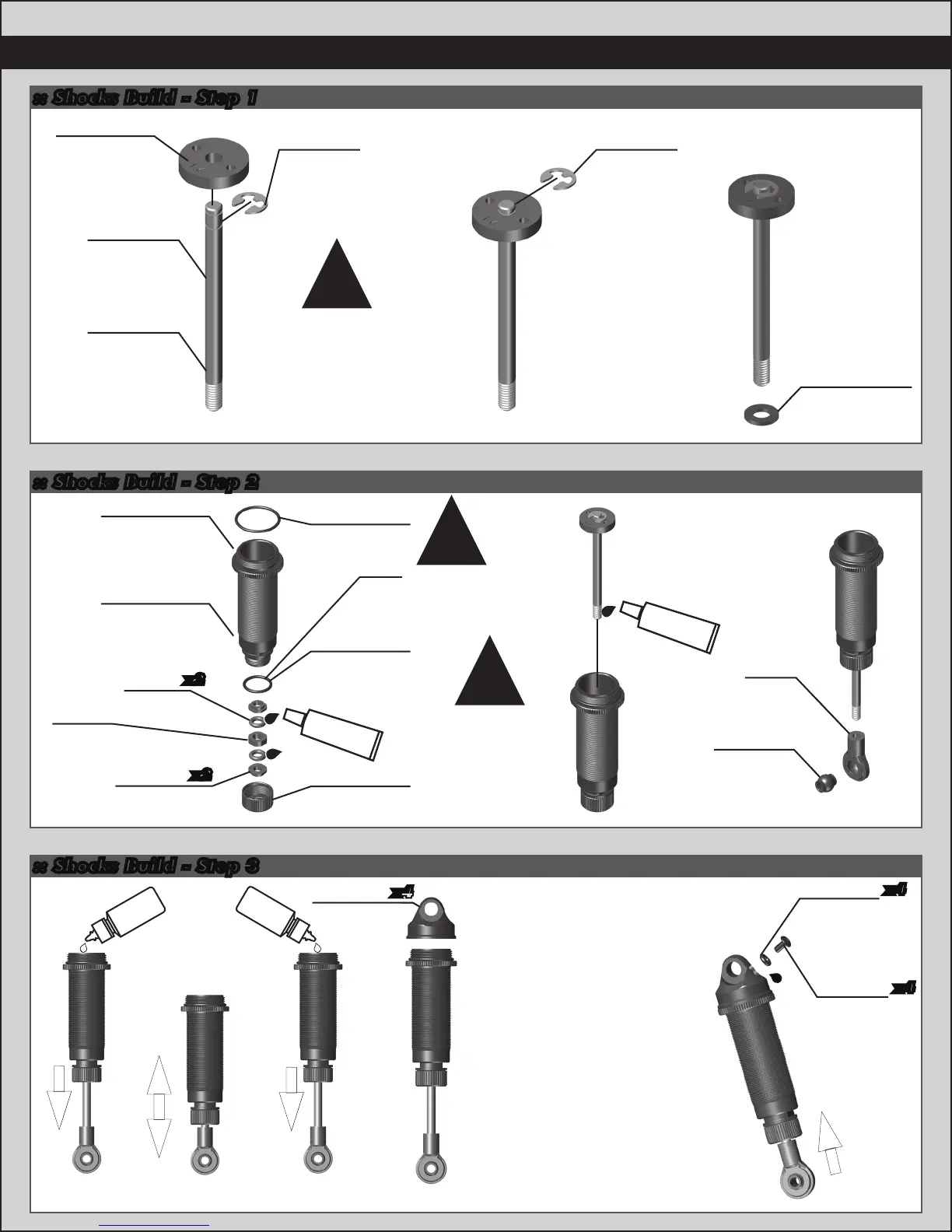

:: Shocks Build - Step 1
:: Shocks Build - Step 2
:: Shocks Build - Step 3
91308
12mm shock
piston
(1.6 front)
(1.7 rear)
91305
21x3 TiN
shock shaft
(front)
91306
27.5x3 TiN
shock shaft
(rear)
x4
91303
12mm
shock cap
1777
FT shock
pivot ball
1777
Shock
eyelet
Step 9-10Step 8Step 6-7Step 4-5
Front Shock: 35 wt
Rear Shock: 35 wt
Step 2-3
6299
1/8 E-clip
6299
1/8 E-clip
4187
Nylon spacer,
(.030)
31510
M2x4mm
bhcs
91309
Shock cap
o-ring
x4
x4
Shock Bleeding Steps:
1. Before assembly, get each bleed
screw and thread it 1-2 turns into the
shock cap. This will make installation
easier when you are bleeding your
shocks.
2. Pull shock shaft down.
3. Fill shock body 3/4 full with silicone
shock fluid.
4. Slowly move the shock shaft up and
down to remove air from under the
piston.
5. Wait for bubbles to come to surface.
6. Fill shock body to top with silicone
shock fluid.
7. Place a drop of oil in the cap and on
cap threads.
8. Install cap (without bleed screw) and
tighten completely.
9. Slowly compress shaft all the way to
bleed excess silicone shock fluid out
the hole in the cap (use rag around-
shock to catch excess fluid).
10. Install M2x4mm button head screw
until snug while shaft is fully com-
pressed.
Shock oil
#5429
Shock oil
#5429
#1105
green slime
91299
12x23mm
shock bodies
(front)
91301
12x31mm
shock bodies
(rear)
91309
Shock hat
bushing
91309
Shock
spacer
5407
O-ring
31327
VCS3 shock
bottom cap
31327
VCS3 shock
bottom cap
o-ring
91309
12mm shock
cap o-ring
x2
x2
#1105
green slime
Racers Tip:
Lightly rub shock oil on the
o-ring before installation!
Racers Tip:
Coating the o-rings
with green slime
helps seal & reduce
o-ring swell! Green
slime not included
in kit!
Racers Tip:
Use a marker over the
numbers on the pistons to
make them easily visible!
!
!
!
